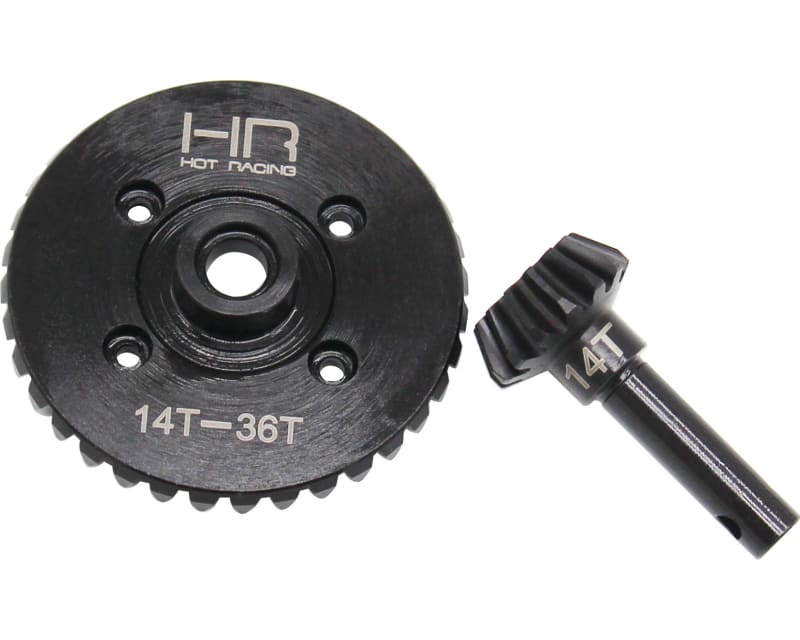

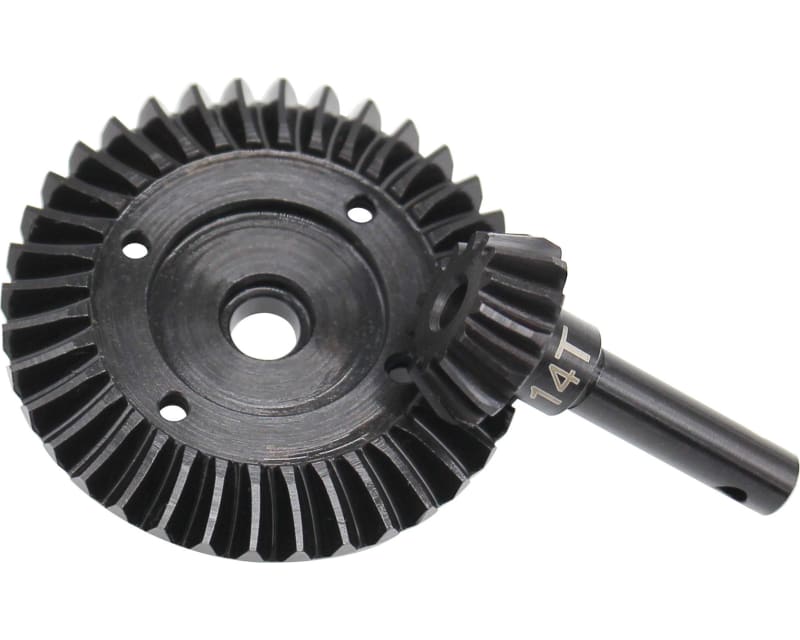

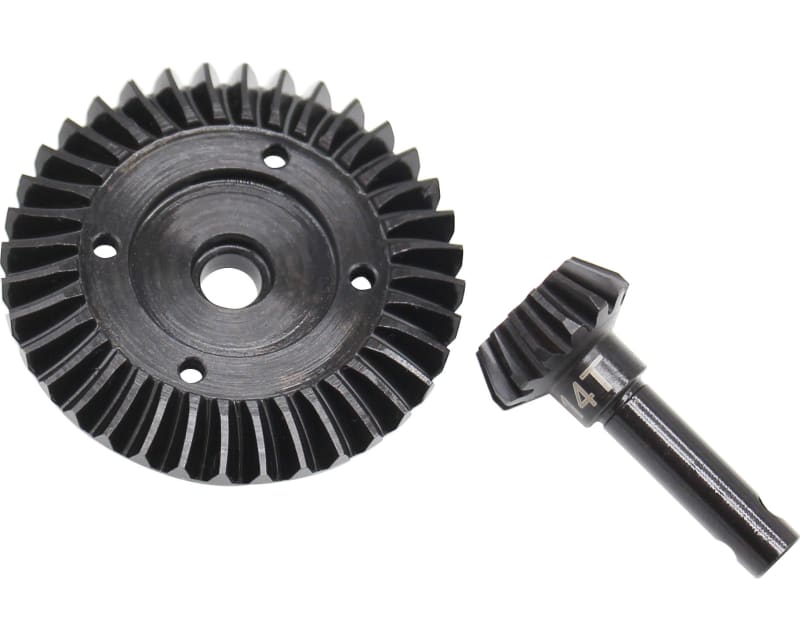

36t/14t Steel Helical Diff Ring/Pinion Overdrive Gear Set
Made by Hot Racing · SWRA9364
$33.88
10+ in stock
Parts lists
Log in to add this part to a parts list to start planning your next project!
Description
Hot Racing steel helical spiral 12% overdrive 36T/14T gear set for 1/10 Axial AX10, EXO, RR10 Bomber, SCX10, SMT10, Wraith, and Yeti.
- High carbon steel construction
- Stronger than the stock bevel-cut zinc cast gears
- 36T/14T provides 12% overdrive (vs stock 38T/13T) increases the wheel speed and is commonly used in the front end for digs
- Works on front or rear. Use cases are typically front and rear at the same time, or front only to increase front digs
- One (1) 14 tooth spiral cut pinion gear
- One M3x2.5x11mm (Axial AXA0175 or Hot Racing SSP311) or M3x2.5x12mm (Axial AXA176) screw shaft for driveshaft attachment
- Do not use the stock M3x3mm setscrew (Axial AXA180), if originally equipped.
- Medium threadlock (blue threadlocking compound) if screws are threaded into metal
- Hot Racing SPL10G05 high temp grease recommended
- Hot Racing gear set options include: SWRA9364 (36T/14T overdrive ratio), SWRA9383 (38T/13T stock ratio), SWRA9433 (43T/13T underdrive ratio)
description revised by: SN July 9, 2018
FEATURES:
- Precision machined helical spiral cut gears offer inherently greater strength and smooth operation than the factory bevel cut gears- High carbon steel construction
- Stronger than the stock bevel-cut zinc cast gears
- 36T/14T provides 12% overdrive (vs stock 38T/13T) increases the wheel speed and is commonly used in the front end for digs
- Works on front or rear. Use cases are typically front and rear at the same time, or front only to increase front digs
YOU WILL RECEIVE:
- One (1) 36 tooth spiral cut ring gear- One (1) 14 tooth spiral cut pinion gear
REQUIREMENTS:
- Installation following kit manual- One M3x2.5x11mm (Axial AXA0175 or Hot Racing SSP311) or M3x2.5x12mm (Axial AXA176) screw shaft for driveshaft attachment
- Do not use the stock M3x3mm setscrew (Axial AXA180), if originally equipped.
- Medium threadlock (blue threadlocking compound) if screws are threaded into metal
- Hot Racing SPL10G05 high temp grease recommended
COMMENTS:
- Replaces Axial AX30392 38/13T bevel-cut zinc cast gears- Hot Racing gear set options include: SWRA9364 (36T/14T overdrive ratio), SWRA9383 (38T/13T stock ratio), SWRA9433 (43T/13T underdrive ratio)
description revised by: SN July 9, 2018
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles
Related parts
Additional details
| Country of origin | China |
| Package dimensions | 3.99" × 3.99" × 0.25" 10.13 cm × 10.13 cm × 0.64 cm |
| Part numbers | SSCP9364 SSCX9364 SWRA9364 083745669312 840353325630 HRASWRA9364 |
| Shipping weight | 1.19 ounces 33.68 grams 0.07 pounds |
