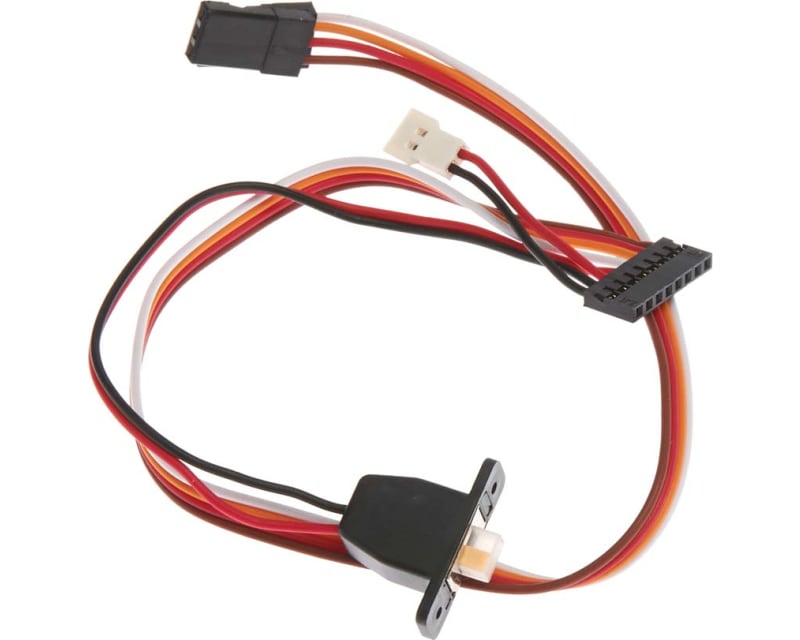

Receiver Harness: Mamba Monster X 011-0106-00
Made by Castle Creations · CSE011-0106-00
Original price: $16.33 · Sale: $9.95
Description
To Remove the Receiver Harness:
Place slight pressure with thumb on capacitor shroud (Figure 1).
Grip the harness close to the 8 pin connector and pull gently, at a slight angle away from ESC, to remove the harness from the ESC pin header (Figure 2).
To Replace the Receiver Harness:
Place slight pressure with thumb on capacitor shroud (Figure 1).
Following the color coded wiring diagram provided on the Monster X label, place the 8 pin connector onto the ESC pin header (Figure 3).
Gently press on the 8 pin connector to fully engage with the ESC pin header.
Reconnect cooling fan and receiver connections.
Manufacturer information
Your Mamba is warranted for one (1) year from date of purchase to be free from manufacturing and component defects. This warranty does not cover abuse, neglect, or damage due to incorrect wiring, over voltage, or overloading. If you have any questions, comments, or wish to return your Mamba for warranty or non-warranty repair/replacement contact Castle Creations at: Castle Creations 402 E. Pendleton Ave. Wellsville, KS 66092 Tel: (785) 883- 4519 Email: info@castlecreations.com Fax: (785) 883- 4571 Website: http://www.castlecreations.com All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles (21)
Additional details
| Country of origin | China |
| Package dimensions | 5.00" × 3.00" × 0.32" 12.70 cm × 7.62 cm × 0.81 cm |
| Part numbers | CSE011010600 011-0106-00 0819326011184 CSEM1106 CSE011-0106-00 819326011184 |
| Shipping weight | 0.80 ounces 22.68 grams 0.05 pounds |
