Description

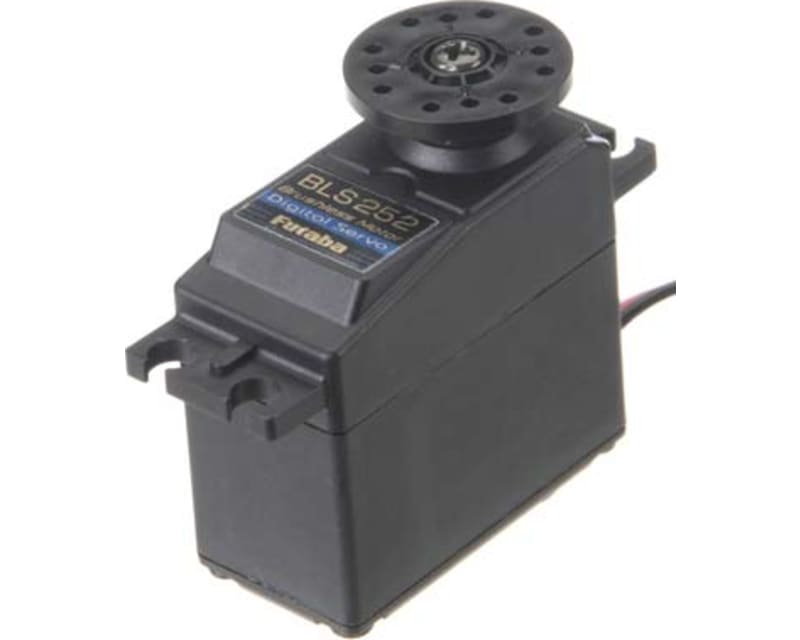

Futaba brand Futaba BLS252 F3C brushless Heli Servo.
FEATURES:
Standard size
Equipped with metal gears and two ball bearings
30% faster response than standard digital servos and five times
longer lasting than servos with brushed motors
Same power consumption as brushed digital servos
One year limited warranty
YOU WILL RECEIVE:
Futaba BLS252 brushless Heli Servo with universal connector, 0.83(21mm) diameter round horn, 1.8 (45mm) diameter round horn, 1.2
(32mm) 6-point horn, 1.5 (39mm) 4-point horn and mounting
hardware
REQUIREMENTS:
SPECIFICATIONS:
175 oz-in (12.6 kg/cm) @ 6.0V
Speed: 0.16 sec/60 @ 4.8V
0.13 sec/60 @ 6.0V
Size: 1.6 x 0.8 x 1.5 (40 x 20 x 37mm)
Weight: 2.1 oz (58g)
Horn Screw Size: 3x8mm
COMMENTS:
For Gear Set, order FUTM3471
jxs 7/24/08
ir/jxs
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Additional details
| Country of origin | China |
| Package dimensions | 2.00" × 3.00" × 4.50" 5.08 cm × 7.62 cm × 11.43 cm |
| Part numbers | FUTM0522 4513886204692 FUTBLS252 BLS252 513886204692 |
| Shipping weight | 3.84 ounces 108.87 grams 0.24 pounds |
