Description

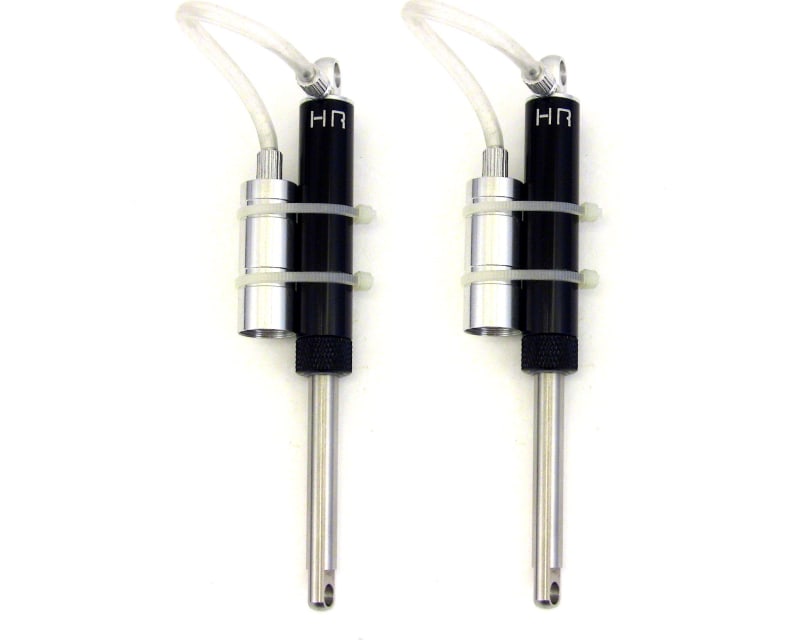

Hot Racing 100mm internal spring air damper shock set with piggyback reservoirs for rock crawlers or other custom projects
- Adjustable piggyback air reservoir with internal spring, adjustable preload, and internal piston
- Shock has air damping and minimal shock lubricant is need to only provide smooth shock action
- CNC machined aluminum shock bodies, black anodized
- CNC machined aluminum upper shock cap with o-ring seal, silver anodized
- CNC machined aluminum lower shock cap with shock shaft guide, black anodized
- Precision machined 7mm stainless steel shock shaft for durability
- Double o-ring lower shaft seal
- Air damping
- Internal springs with three rates included: Gold (soft), Black (medium), Silver (stiff)
- All aluminum is anodized for durability, corrosion resistance, and great looks
- Two (2) assembled piggyback shocks
- Two (2) gold (soft) main shock springs
- Two (2) black (medium) main shock springs
- Two (2) silver (stiff) main shock springs
- Two (2) gold (soft) reservoir springs
- Two (2) black (medium) reservoir springs
- Two (2) silver (stiff) reservoir springs
- Two (2) 4.8mm ball mounts
- Two (2) 5.8mm ball mounts
- Mounting hardware
- Installation on vehicle
- Recommended to use Team Associated Green Slime ASC1105 on lower o-ring seals to assist sealing and increase smoothness
- Extended center to center length: 100mm (3.9 inch)
- Compressed center to center length: 68mm (2.7 inch)
- Overall length: 108mm (4.3 inch)
- Body diameter: 13mm (0.5 inch)
- Shaft diameter: 7mm (0.3 inch)
- Variants available include: TD100RR01 (100mm), TD120RR01 (120mm)
- Replacement internal springs are Hot Racing RTD100P
- Replacement shock o-rings are Hot Racing RTD48RR
- Replacement reservoir o-rings are Hot Racing RCV14R
description revised by: SN December 19, 2016
FEATURES:
- Adjustable piggyback air reservoir with internal spring, adjustable preload, and internal piston
- Shock has air damping and minimal shock lubricant is need to only provide smooth shock action
- CNC machined aluminum shock bodies, black anodized
- CNC machined aluminum upper shock cap with o-ring seal, silver anodized
- CNC machined aluminum lower shock cap with shock shaft guide, black anodized
- Precision machined 7mm stainless steel shock shaft for durability
- Double o-ring lower shaft seal
- Air damping
- Internal springs with three rates included: Gold (soft), Black (medium), Silver (stiff)
- All aluminum is anodized for durability, corrosion resistance, and great looks

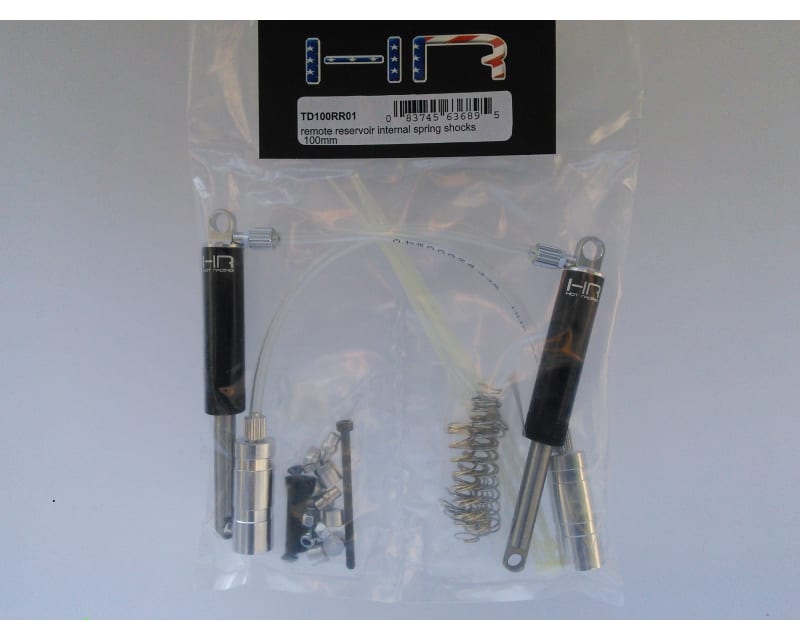

YOU WILL RECEIVE:
- Two (2) assembled piggyback shocks
- Two (2) gold (soft) main shock springs
- Two (2) black (medium) main shock springs
- Two (2) silver (stiff) main shock springs
- Two (2) gold (soft) reservoir springs
- Two (2) black (medium) reservoir springs
- Two (2) silver (stiff) reservoir springs
- Two (2) 4.8mm ball mounts
- Two (2) 5.8mm ball mounts
- Mounting hardware
REQUIREMENTS:
- Installation on vehicle
- Recommended to use Team Associated Green Slime ASC1105 on lower o-ring seals to assist sealing and increase smoothness
SPECIFICATIONS:
- Extended center to center length: 100mm (3.9 inch)
- Compressed center to center length: 68mm (2.7 inch)
- Overall length: 108mm (4.3 inch)
- Body diameter: 13mm (0.5 inch)
- Shaft diameter: 7mm (0.3 inch)
COMMENTS:
- Variants available include: TD100RR01 (100mm), TD120RR01 (120mm)
- Replacement internal springs are Hot Racing RTD100P
- Replacement shock o-rings are Hot Racing RTD48RR
- Replacement reservoir o-rings are Hot Racing RCV14R
description revised by: SN December 19, 2016
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Additional details
| Country of origin | China |
| Package dimensions | 8.50" × 6.00" × 0.75" 21.59 cm × 15.24 cm × 1.91 cm |
| Part numbers | 083745636895 TD100RR01 840353330221 HRATD100RR01 |
| Shipping weight | 3.22 ounces 91.17 grams 0.20 pounds |
