Description
Hot Racing 120mm internal spring air damper shock set for rock crawlers or other custom projects
- CNC machined aluminum upper shock cap with o-ring seal, red anodized
- CNC machined aluminum lower shock cap with shock shaft guide, red anodized
- Precision machined 7mm stainless steel shock shaft for durability
- Double o-ring lower shaft seal
- Air damping
- Internal springs with three rates included: Gold (soft), Black (medium), Silver (stiff)
- All aluminum is anodized for durability, corrosion resistance, and great looks
- Two (2) gold (soft) springs
- Two (2) black (medium) springs
- Two (2) silver (stiff) springs
- Two (2) 4.8mm ball mounts
- Two (2) 5.8mm ball mounts
- Four (4) 5x7mm offset spacers
- Four (4) 3mm countersunk washers
- Four (4) 3x25mm flat head cap screws
- Eight (8) 3mm o-rings
- Four (4) lock nuts
- Recommended to use Team Associated Green Slime ASC1105 on lower o-ring seals to assist sealing and increase smoothness
- Compressed center to center length: 79mm (3.1 inch)
- Overall length: 128mm (5.0 inch)
- Body diameter: 13mm (0.5 inch)
- Shaft diameter: 7mm (0.3 inch)
- Replacement o-rings are Hot Racing RTD48RR
- Replacement internal shock springs are Hot Racing RTD120P
description revised by: SN May 1, 2015
FEATURES:

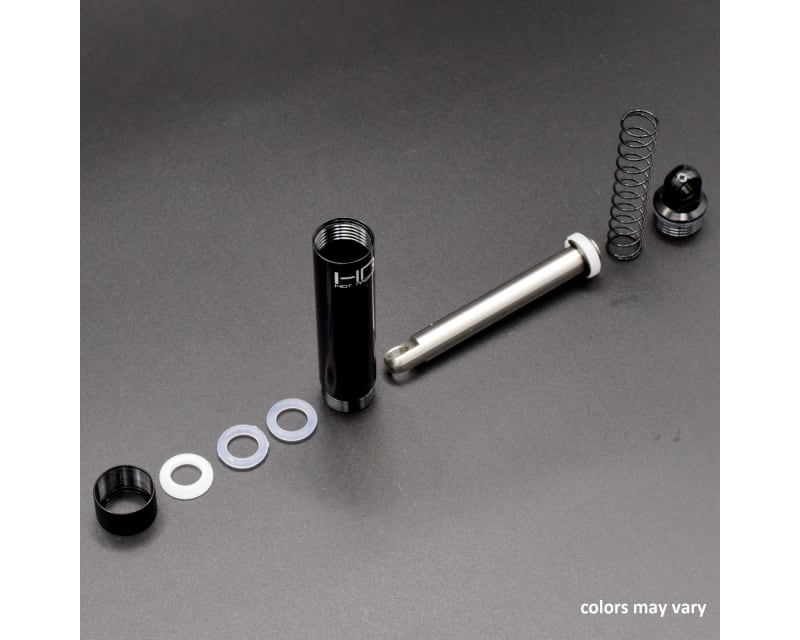

- CNC machined aluminum shock bodies, black anodized- CNC machined aluminum upper shock cap with o-ring seal, red anodized
- CNC machined aluminum lower shock cap with shock shaft guide, red anodized
- Precision machined 7mm stainless steel shock shaft for durability
- Double o-ring lower shaft seal
- Air damping
- Internal springs with three rates included: Gold (soft), Black (medium), Silver (stiff)
- All aluminum is anodized for durability, corrosion resistance, and great looks
YOU WILL RECEIVE:
- Two (2) assembled shocks- Two (2) gold (soft) springs
- Two (2) black (medium) springs
- Two (2) silver (stiff) springs
- Two (2) 4.8mm ball mounts
- Two (2) 5.8mm ball mounts
- Four (4) 5x7mm offset spacers
- Four (4) 3mm countersunk washers
- Four (4) 3x25mm flat head cap screws
- Eight (8) 3mm o-rings
- Four (4) lock nuts
REQUIREMENTS:
- Installation on vehicle- Recommended to use Team Associated Green Slime ASC1105 on lower o-ring seals to assist sealing and increase smoothness
SPECIFICATIONS:
- Extended center to center length: 120mm (4.7 inch)- Compressed center to center length: 79mm (3.1 inch)
- Overall length: 128mm (5.0 inch)
- Body diameter: 13mm (0.5 inch)
- Shaft diameter: 7mm (0.3 inch)
COMMENTS:

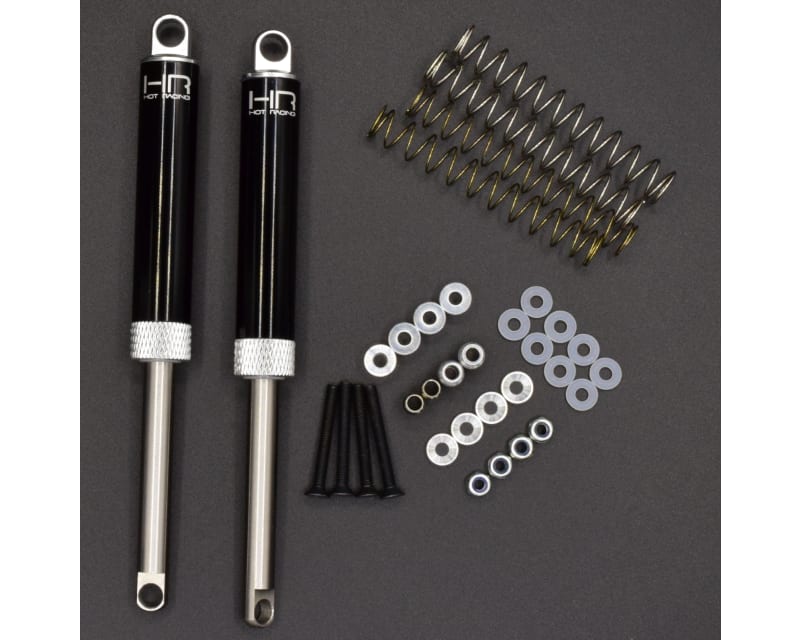

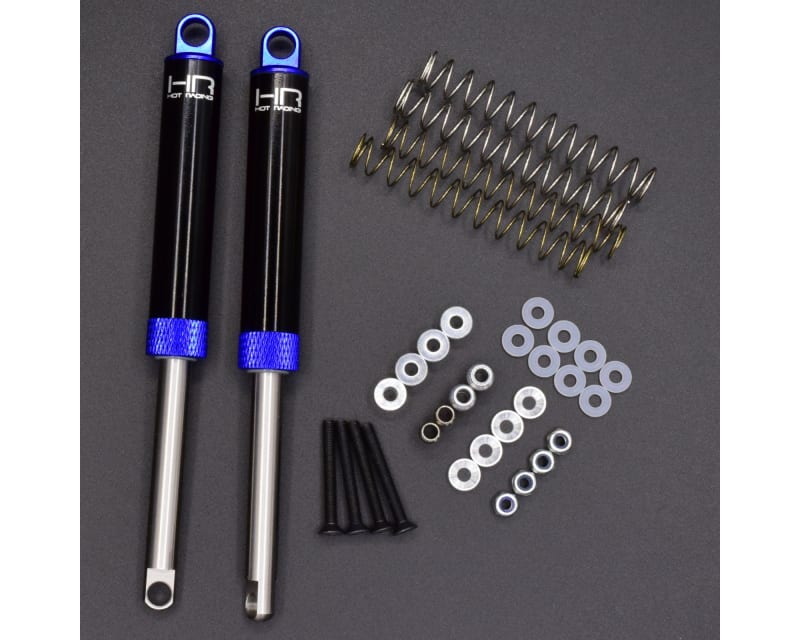

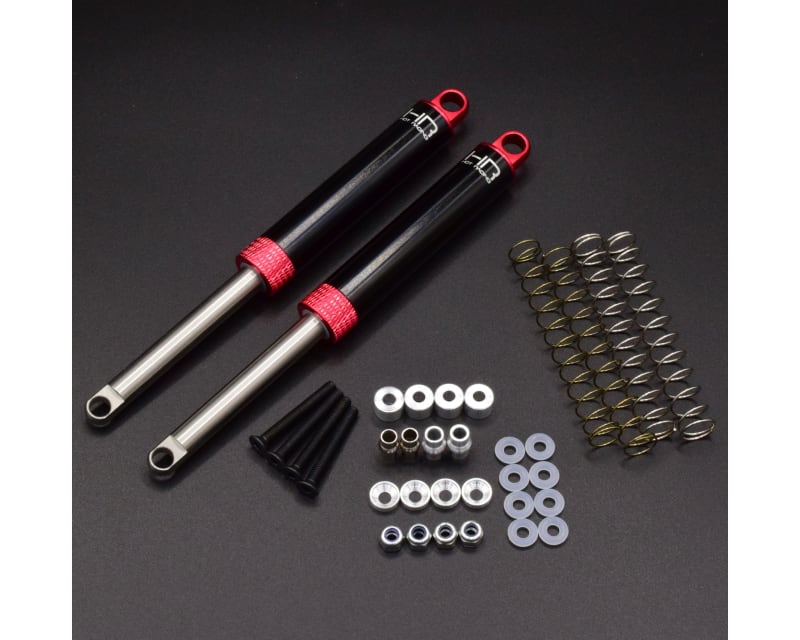

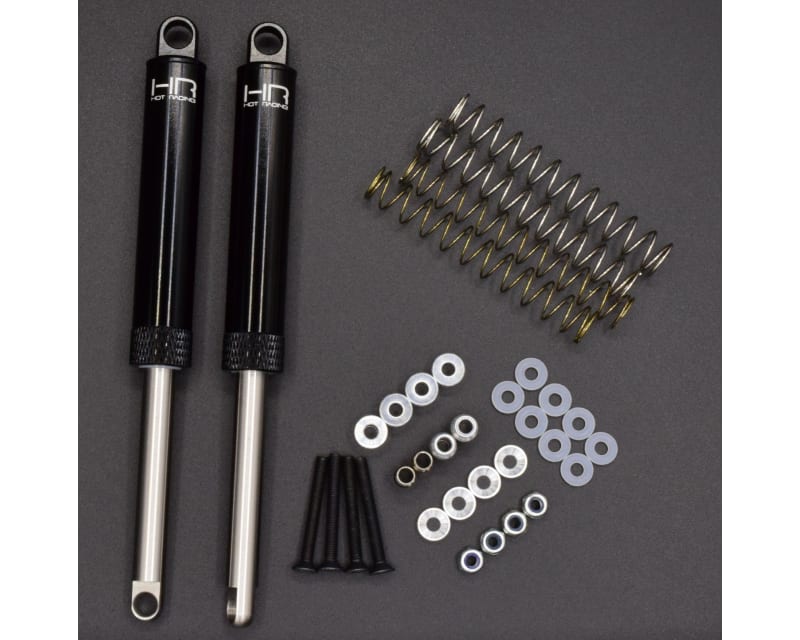

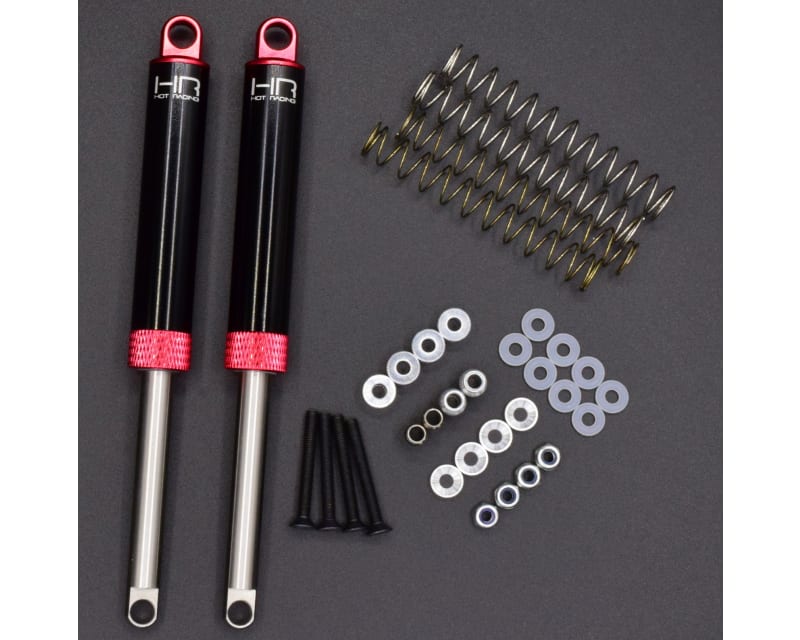

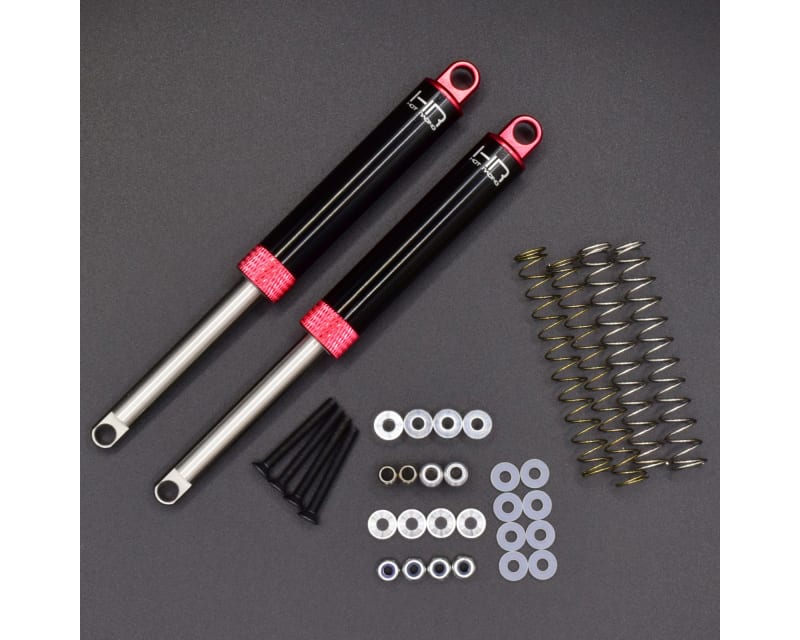

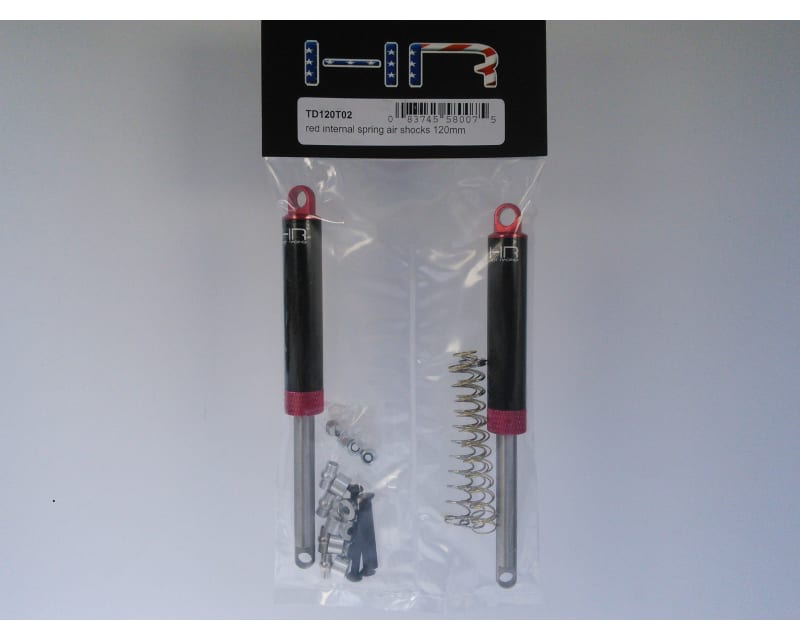

- Available colors include: Black (TD120T01), Red (TD120T02), Green (TD120T05), Blue (TD120T06), and Silver (TD120T08)- Replacement o-rings are Hot Racing RTD48RR
- Replacement internal shock springs are Hot Racing RTD120P
description revised by: SN May 1, 2015
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Related parts
Additional details
| Country of origin | China |
| Package dimensions | 5.50" × 3.75" × 0.60" 13.97 cm × 9.53 cm × 1.52 cm |
| Part numbers | 083745580075 TD120T02 840353313347 083745593235 HRATD120T02 |
| Shipping weight | 2.30 ounces 65.20 grams 0.14 pounds |
