Description

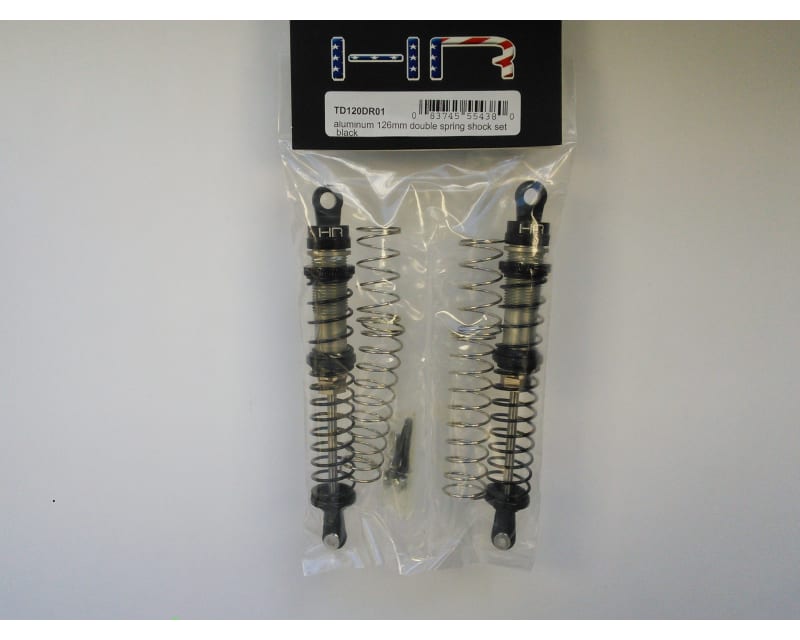

Hot Racing 126mm dual spring threaded shocks.
- Machined Delrin spring collars
- CNC machined 6061-T6 aluminum shock bodies, spring retainers, threaded spring collars, bottom seal retainers, and shock caps
- Threaded shock bodies
- Hard anodized aluminum bodies for smooth operation and great corrosion and wear resistance
- Teflon two hole pistons
- Black anodized spring retainers, threaded spring collars, and shock caps
- 1.1mm black dual springs
- 1.0mm chrome dual springs
- Fully assembled
- Two (2) chrome tender springs
- Two (2) chrome main springs
- Two (2) aluminum upper shock cap bushings
- Two (2) aluminum countersunk washers
- Two (2) flat head cap screws
- Compressed mount-to-mount: 3.30 inch (84mm)
- Diameter of body: 1/2 inch (13mm)
- Replacement shock bushings are Hot Racing TDB322
description revised by: SN April 6, 2016
FEATURES:
- Double spring system- Machined Delrin spring collars
- CNC machined 6061-T6 aluminum shock bodies, spring retainers, threaded spring collars, bottom seal retainers, and shock caps
- Threaded shock bodies
- Hard anodized aluminum bodies for smooth operation and great corrosion and wear resistance
- Teflon two hole pistons
- Black anodized spring retainers, threaded spring collars, and shock caps
- 1.1mm black dual springs
- 1.0mm chrome dual springs
- Fully assembled
YOU WILL RECEIVE:
- Two (2) fully assembled shocks with black main and tender springs- Two (2) chrome tender springs
- Two (2) chrome main springs
- Two (2) aluminum upper shock cap bushings
- Two (2) aluminum countersunk washers
- Two (2) flat head cap screws
SPECIFICATIONS:
- Extended mount-to-mount: 4.96 inch (126mm)- Compressed mount-to-mount: 3.30 inch (84mm)
- Diameter of body: 1/2 inch (13mm)
REQUIREMENTS:
- Silicone shock oilCOMMENTS:
- Double spring system provides a rapid initial respond at the beginning when both tender springs and main spring are compressed together and deliver the desired firmer ending rate once the tender spring closes completely leaving only the main spring to deflect further- Replacement shock bushings are Hot Racing TDB322
description revised by: SN April 6, 2016
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Additional details
| Country of origin | China |
| Package dimensions | 5.75" × 3.75" × 0.80" 14.61 cm × 9.53 cm × 2.03 cm |
| Part numbers | 0837455438 SCP120DR01 WK120DR01 TD120DR01 083745554380 TD120DRO1 840353329829 HRATD120DR01 |
| Shipping weight | 2.30 ounces 65.20 grams 0.14 pounds |
