True-Track Rear A-Arm Conversion Black: Revo

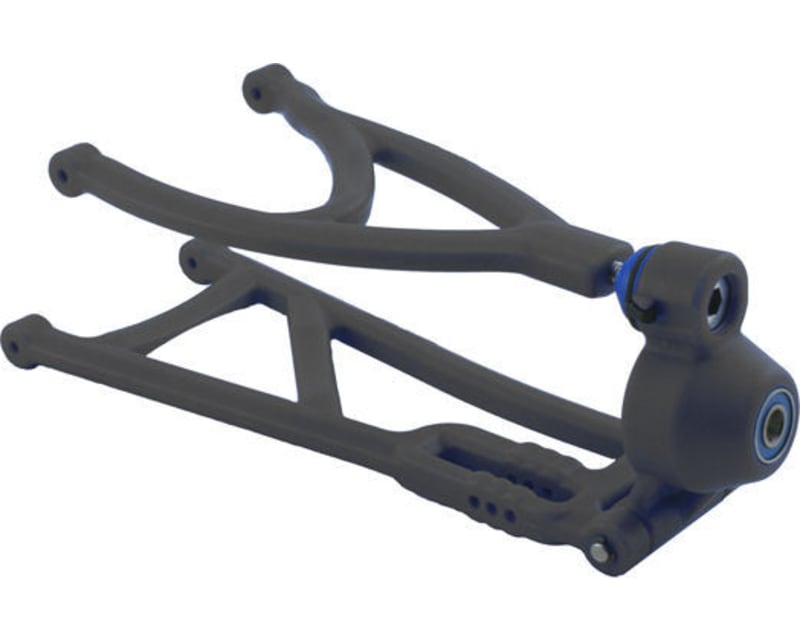

This is the RPM True-Track Rear A-Arm Conversion in Black
for all versions of the TRA Revo.

Eliminates stock rear toe links, locking in the rear toe angle at
1.5 per side for a total rear toe-in angle of 3
Eliminates all rear bump steer for better rear end tracking
regardless of terrain
Replaces lower pivot ball with a 4mm diameter hinge pin for constant
rear toe angle
Retains stock upper pivot ball to allow camber adjustments
Weighs a total of 1-1/8oz (32g) less than stock components

Two each Upper and Lower Rear A-Arms
Two Axle Carriers
Two 4mm Hinge Pins
Four E-Clips
Two 3x16mm Shock Mount Screws
Two Aluminum Pivot Ball Set Screws
Two Delrin Pivot Ball Bushing Cups
Two 6x15mm Sealed Outer Bearings
Two 12x21mm Sealed Inner Bearings
Instruction sheet

Removing stock rear components

This True-Track system is compatible with the following RPM
components;
RPMC8237 Front Black A-Arms
RPMC8238 Front Blue A-Arms
RPMC8222 Black Front Upper and Lower Left A-Arms
RPMC8585 RPM Axle Carriers/Steering Blocks
Not compatible with the TRA #5356 Long Travel Rocker Set.
