Description

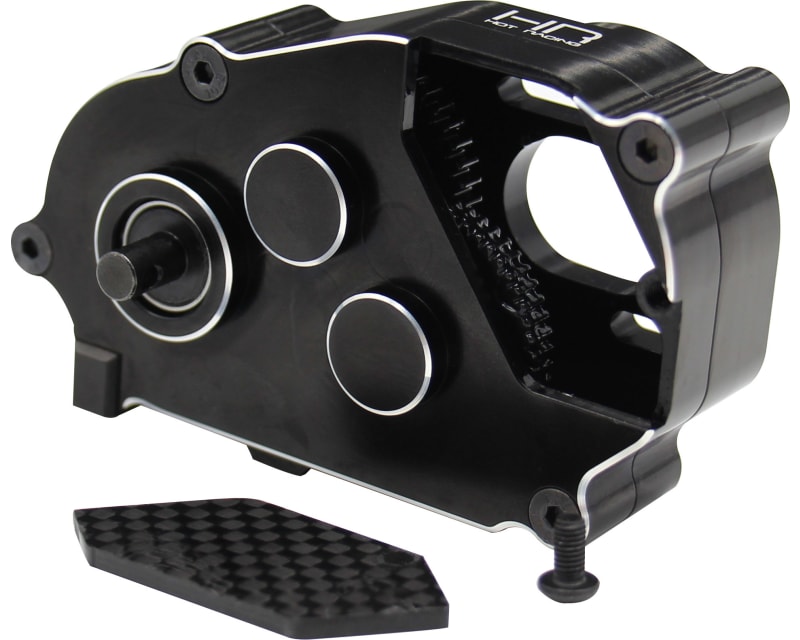

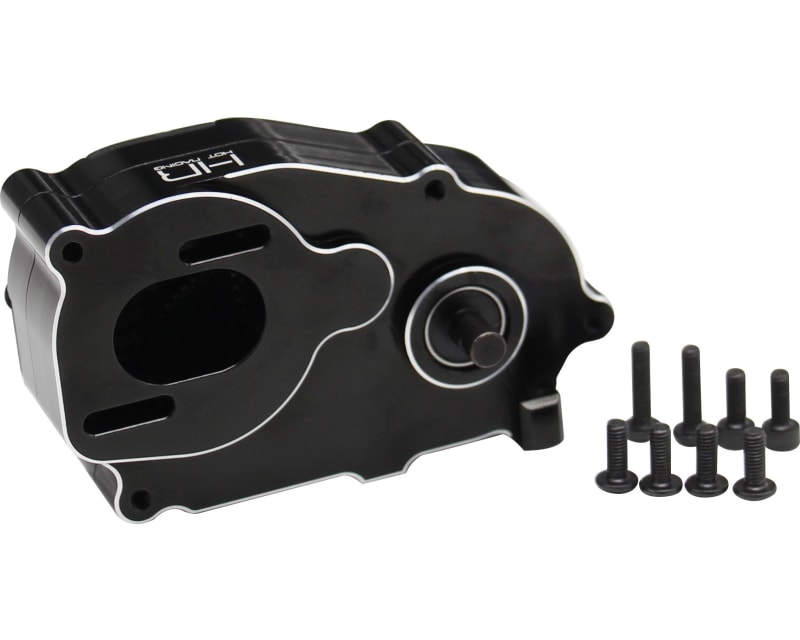

Hot Racing low center of gravity Crawler transmission for the Axial AX10 SCX10 SCX2 RTR Waith 1.9 etc vehicles
-
- Hardened steel gears
- Full ball bearing
- High gear reduction
- 11.4:1 internal gear reduction (in addition to the pinion/ 52T spur reduction)
- Supports 9T to 30T 48 pitch pinion gears
- Four (4) M3x8mm flat head cap screw
- Two (2) M3x8mm button head cap screw
- Recommended to use black grease gear lubricant on gear train
- width: ~18.8mm
- height: ~47.8mm
- Replacement parts include: RSCP12SG (internal gear set - output shaft and gear are different), RSCP12CC (clear gear cover)
- Bearings are: 2x 10x15x4mm, 1x 4x10x4mm, 3x 5x10x4mm
FEATURES:
- CNC machined 6061 aluminum case-
- Hardened steel gears
- Full ball bearing
- High gear reduction
- 11.4:1 internal gear reduction (in addition to the pinion/ 52T spur reduction)
- Supports 9T to 30T 48 pitch pinion gears
YOU WILL RECEIVE:
- One (1) low CG transmission- Four (4) M3x8mm flat head cap screw
- Two (2) M3x8mm button head cap screw
REQUIREMENTS:
- Due to the large array of vehicle variants, additional axle trimming may be required- Recommended to use black grease gear lubricant on gear train
SPECIFICATIONS:
- length: ~78.8mm- width: ~18.8mm
- height: ~47.8mm
COMMENTS:
- A 12T, 48P pinion will produce a 49.5:1 final drive ratio- Replacement parts include: RSCP12SG (internal gear set - output shaft and gear are different), RSCP12CC (clear gear cover)
- Bearings are: 2x 10x15x4mm, 1x 4x10x4mm, 3x 5x10x4mm
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Additional details
| Country of origin | China |
| Package dimensions | 5.00" × 4.00" × 2.00" 12.70 cm × 10.16 cm × 5.08 cm |
| Part numbers | SCP38X01 SCX38X01 840353312005 083745540468 HRASCP38X01 |
| Shipping weight | 4.49 ounces 127.28 grams 0.28 pounds |
