Description

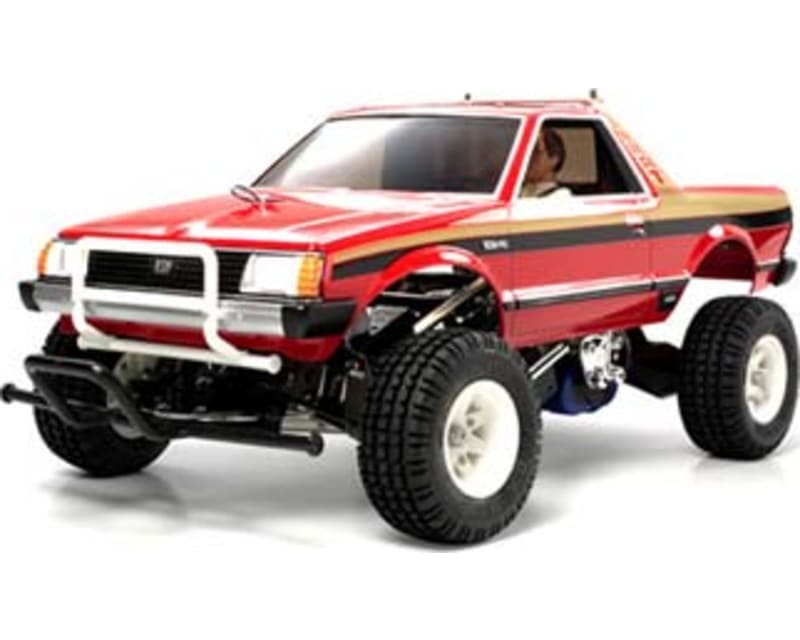

The Suba. Brat was made solely for export, and achieved tremendous popularity in the U. S. market in the 1970s. Tamiya first produced an R/C version of this popular little truck back in 1983, and is now proud to present an updated, improved re-release of this classic R/C truck. Aside from the upgraded internal parts, this assembly kit comes with a driver figure for a nostalgic feel. In addition, both a super-detailed resin body for shelf display and a light weight durable polycarbonate body for racing are included.
About the Chassis:
The unique space frame chassis features 4-wheel independent suspension system with front double wishbones and rear trailing arms. The rear suspension in particular has been updated with the diaphragm type oil dampers and coil springs. A 540 Type motor drives the differential-equipped gearbox, and the drive shaft features a dog bone joint for optimum transmission efficiency. Block pattern tires mounted on the realistic 8-spoke wheels rounds out this stylish package.
Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S), and 540-brushed type
Suspension: Front double wishbone with in-board spring, Rear trailing arm with oil damper
Frame: Space Frame
Tread: 197mm (Front), 178mm (Rear)
Tire Width/ diameter: 35/82mm (Front/Rear)
Gear Ratio: 6.7:1, 7.3:1, 8.5:1
Construction Type: Assembly Kit
Required To Complete: 2-channel radio, steering servo, 7.2V battery and battery charger, and Tamiya TS paint.
About the Chassis:
The unique space frame chassis features 4-wheel independent suspension system with front double wishbones and rear trailing arms. The rear suspension in particular has been updated with the diaphragm type oil dampers and coil springs. A 540 Type motor drives the differential-equipped gearbox, and the drive shaft features a dog bone joint for optimum transmission efficiency. Block pattern tires mounted on the realistic 8-spoke wheels rounds out this stylish package.
FEATURES:
Drivetrain: Rear Wheel DriveIncludes HobbyWing THW 1060 Brushed Motor ESC (2-3S), and 540-brushed type
Suspension: Front double wishbone with in-board spring, Rear trailing arm with oil damper
Frame: Space Frame
SPECIFICATIONS:
length: 453mm, width: 220mm, height: 175mm, Weight: 1, 840g (with Resin Body)Tread: 197mm (Front), 178mm (Rear)
Tire Width/ diameter: 35/82mm (Front/Rear)
Gear Ratio: 6.7:1, 7.3:1, 8.5:1
Construction Type: Assembly Kit
Required To Complete: 2-channel radio, steering servo, 7.2V battery and battery charger, and Tamiya TS paint.
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Additional details
| Country of origin | Philippines |
| Package dimensions | 20.38" × 14.50" × 4.88" 51.77 cm × 36.83 cm × 12.40 cm |
| Part numbers | TAM58384 950344583843 TAMC0394 4950344583843 TAM58384A 4950344065356 TAM58384-A TAM58384-60A |
| Shipping weight | 88.33 ounces 2503.98 grams 5.52 pounds |
