Axle Carriers/Oversized Bearings Blue:Revo/Slayer

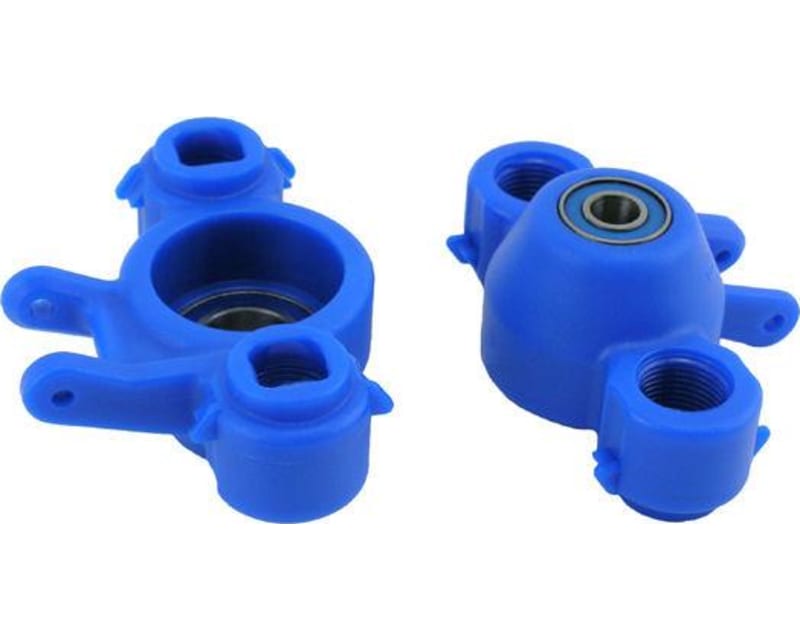

This is a set of optional RPM Axle Carriers/Steering Blocks
for the TRA Revo.
These will also work on the T/E Maxx 2.5R and 3.3 versions.
Constructed of molded composite material, blue in color
Wall thickness around the pillow-balls has been increased by 40%
eliminating split walls
Over 20% more material supports the pillow-balls, preventing them
from pulling through
Redesigned reinforcing rib supporting tie rod mount
Redesigned boot lock tabs for easier removal of the silicone boots
Press-fit bearings in the carrier for reduced axle movement
Two-piece pillow-ball set screws use aluminum and Delrin for the
ultimate in holding power under extreme situations
Two Axle Carriers/Steering Blocks
Two 12x21x5mm Inner Bearings
Two 6x15x5mm Outer Bearings
Four Aluminum Set Screws
Four Delrin Bushing Caps
Instruction Sheet
Installing on axles, no modifications required
Replacement Bearing Set, RPMC8570
Replacement Pillow-Ball Set Screws, RPMC0800
Do not use the TRA #5356 Long Travel Rocker Arm Set with these
Axle Carriers. Doing so will void the RPM warranty.
