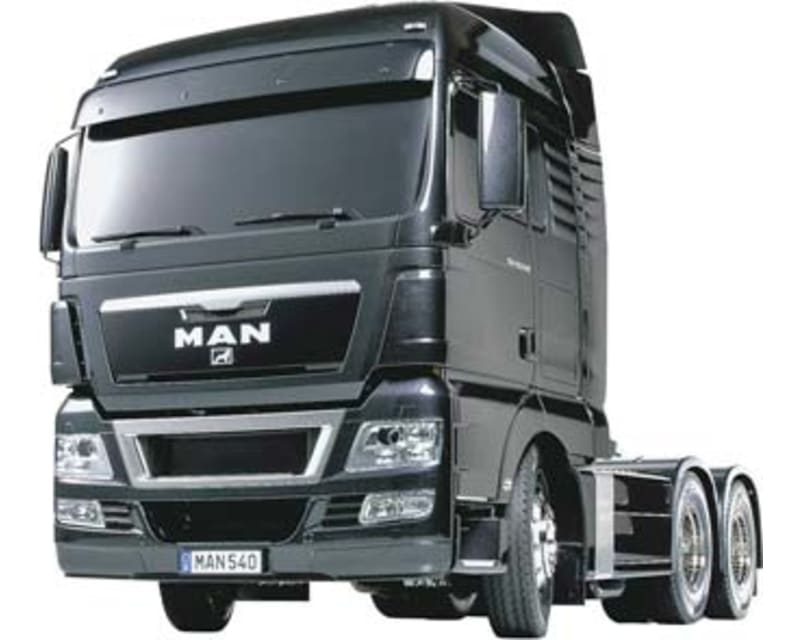

1/14 MAN TGX 26.540 6x4 XLX Truck Kit
Made by Tamiya · TAM56325
Sale
-30%
$502.60
List price: $718.00
3 in stock
Parts lists
Log in to add this part to a parts list to start planning your next project!
Description
This is the electric powered, radio controlled, 1/14 scale
Tamiya TGX 26.540 6x4 XLX Tractor Truck kit.
Compatible with the Tamiya Tractor Truck Option Parts
for further customization.
Cabin: Tilt forward operation just like full-size truck, removable
fenders to depict a low carrying load
Drive: Shaft driven from front mounted motor to rear axles which are
equipped with differentials
Motor: RS540
Transmission: Three speed servo controlled constant mesh
Suspension: Die cast metal front axle and reinforced resin rear
axles float mounted on metal leaf springs and coil spring shocks
Cabin: Molded plastic, white in color tilts forward separately from
fenders, clear plastic windows, separate grille, mirrors, seats
dashboard and other accessories add to realism
Wheels: Chrome plated plastic
Tires: Ten, treaded rubber construction
wheels, decal sheet, 3-speed transmission, instructions and coupler
unit for trailer (trailer not included)
Servos: Two standard size for steering and shifting
Electronic Speed Control: Tamiya TEU302BK (TAMM3178) recommended, do
not use the Tamiya TEU101BK or the TEU104BK
Battery: 6-cell stick
Battery Charger: Timed or peak for 6-cell battery
Paint, building & track equipment
width: 7.6" (193mm)
height: 11.8" (301mm)
Gear Ratio: Low Gear 1:32.49
2nd Gear 1:17.66
3rd Gear 1:10.66
provides many different truck related sound effects. The Multi
Function Control Unit REQUIRES an 2.4Ghz type radio only with
analog trims such as the Tamiya 4YWD, TAMJ5252.
The following Tamiya paint colors are recommended in the manual;
TS-8 Italian Red TAMR5008 TS-14 Black TAMR5014
TS-26 Pure White TAMR5026 TS-17 Gloss Aluminum TAMR5017
TS-31 Bright Orange TAMR5031 TS-29 Semi Gloss Black TAMR5029
TS-38 gunmetal TAMR5038 AS-7 Natural Grey TAMR8657
TS-4 German Grey TAMR5004 X-26 Clear Orange TAMR8126
jxs 04/28/10
ir/jxs
&
Tamiya TGX 26.540 6x4 XLX Tractor Truck kit.
Compatible with the Tamiya Tractor Truck Option Parts
for further customization.
FEATURES:
Chassis: Ladder frame with aluminum channels and resin cross members Cabin: Tilt forward operation just like full-size truck, removable
fenders to depict a low carrying load
Drive: Shaft driven from front mounted motor to rear axles which are
equipped with differentials
Motor: RS540
Transmission: Three speed servo controlled constant mesh
Suspension: Die cast metal front axle and reinforced resin rear
axles float mounted on metal leaf springs and coil spring shocks
Cabin: Molded plastic, white in color tilts forward separately from
fenders, clear plastic windows, separate grille, mirrors, seats
dashboard and other accessories add to realism
Wheels: Chrome plated plastic
Tires: Ten, treaded rubber construction
YOU WILL RECEIVE:
1/14 scale Tamiya TGX 26.540 6x4 XLX semi kit, 540 motor, tires, wheels, decal sheet, 3-speed transmission, instructions and coupler
unit for trailer (trailer not included)
REQUIREMENTS:
Radio: 4-channel with 4-channel receiver Servos: Two standard size for steering and shifting
Electronic Speed Control: Tamiya TEU302BK (TAMM3178) recommended, do
not use the Tamiya TEU101BK or the TEU104BK
Battery: 6-cell stick
Battery Charger: Timed or peak for 6-cell battery
Paint, building & track equipment
SPECIFICATIONS:
length: 20.7" (526mm) width: 7.6" (193mm)
height: 11.8" (301mm)
Gear Ratio: Low Gear 1:32.49
2nd Gear 1:17.66
3rd Gear 1:10.66
COMMENTS:
The Tamiya Multi Function Control Unit (TAMC6511) not included, provides many different truck related sound effects. The Multi
Function Control Unit REQUIRES an 2.4Ghz type radio only with
analog trims such as the Tamiya 4YWD, TAMJ5252.
The following Tamiya paint colors are recommended in the manual;
TS-8 Italian Red TAMR5008 TS-14 Black TAMR5014
TS-26 Pure White TAMR5026 TS-17 Gloss Aluminum TAMR5017
TS-31 Bright Orange TAMR5031 TS-29 Semi Gloss Black TAMR5029
TS-38 gunmetal TAMR5038 AS-7 Natural Grey TAMR8657
TS-4 German Grey TAMR5004 X-26 Clear Orange TAMR8126
jxs 04/28/10
ir/jxs
&
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles
Additional details
| Country of origin | Japan |
| Package dimensions | 28.38" × 17.38" × 7.63" 72.09 cm × 44.15 cm × 19.38 cm |
| Part numbers | TAM56325 tamc0662 4950344563258 |
| Shipping weight | 243.54 ounces 6904.10 grams 15.22 pounds |
