Description

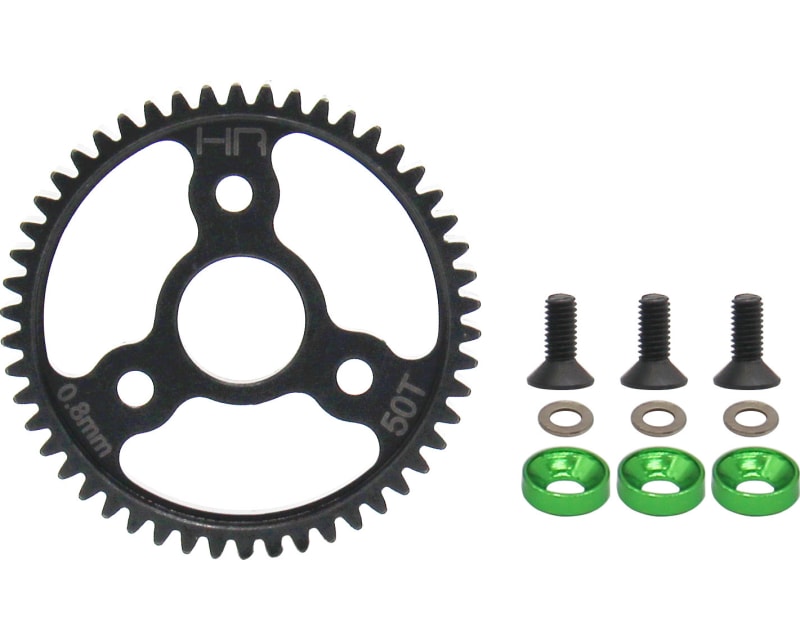

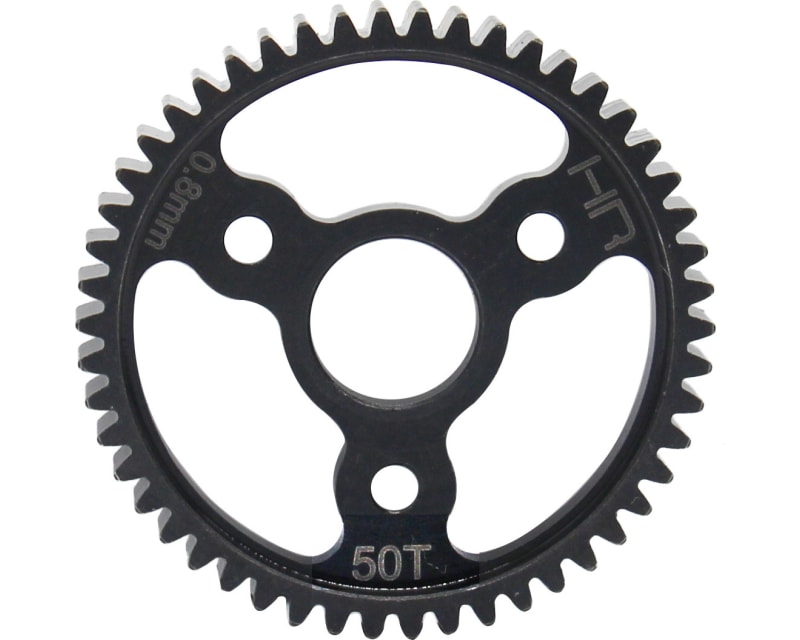

Hot Racing 50 tooth, 32 pitch (0.8 Mod) spur gear for the 1/10 TRA E-Revo, Rally VXL, Slash 4X4, Stampede 4X4 and Hot Racing ATF25R02 Gear adeptor for use on Arrma 4WD 3S and 4S .
- Black oxide coating for durability and corrosion resistance
- Green anodized countersunk washers
- Three (3) mounting screws
- Three (3) Green anodized countersunk washers
- Three (3) washers (use as needed underneath countersunk washers to prevent screw ends from protruding too far through spur mounting plate)
- Gear pitch: 32 pitch (0.8 module)
- Mounting holes: 3
- Tooth face width: 6mm (0.24 inch)
- Internal diameter: ~11mm (~0.43 inch)
- Requires a slipper transmission. Will NOT work with vehicle equipped with a center gear differential. Use Hot Racing SSLF2 series gears for vehicles equipped with a center gear differential.
This gear is designed to be a speedrun gear you will need a oversize pinnon gear. and it will cost your motor to run hot.
FEATURES:
- CNC machined and lightened hardened steel construction- Black oxide coating for durability and corrosion resistance
- Green anodized countersunk washers
YOU WILL RECEIVE:
- 50 tooth 32 pitch (0.8mod) spur gear- Three (3) mounting screws
- Three (3) Green anodized countersunk washers
- Three (3) washers (use as needed underneath countersunk washers to prevent screw ends from protruding too far through spur mounting plate)
SPECIFICATIONS:
- Number of teeth: 50- Gear pitch: 32 pitch (0.8 module)
- Mounting holes: 3
- Tooth face width: 6mm (0.24 inch)
- Internal diameter: ~11mm (~0.43 inch)
REQUIREMENTS:
- bigger pinon gear- Requires a slipper transmission. Will NOT work with vehicle equipped with a center gear differential. Use Hot Racing SSLF2 series gears for vehicles equipped with a center gear differential.
COMMENTS:
This gear is designed to be a speedrun gear you will need a oversize pinnon gear. and it will cost your motor to run hot.
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles
Related parts
Additional details
| Country of origin | China |
| Package dimensions | 3.75" × 3.00" × 0.25" 9.53 cm × 7.62 cm × 0.64 cm |
| Part numbers | SJT250 840353302853 083745384802 ATF250JTG HRASJT250 |
| Shipping weight | 0.87 ounces 24.56 grams 0.05 pounds |
