Aluminum Oil Damper Shocks Set (4) - Kyosho Mini-Z 4X4
Made by Hot Racing · KMC43TD02
$66.88
10+ in stock
Parts lists
Log in to add this part to a parts list to start planning your next project!
Description
Hot Racing aluminum oil-dampened shock set for the Kyosho Mini-Z 4x4
- Threaded bodies for easy preload adjustment
- Oil dampened shocks with rubber bladders
- Two spring options included
- Threaded shock
- Four (4) black springs (medium)
- Four (4) silver Spring (Soft)
- Overall extended/compressed length (slightly adjustable): 43mm / 32mm
- Eye-to-eye extended/compressed length (slightly adjustable): 38mm/28.5mm
- Shock body diameter: ~4.5mm
- Spring free length: ~26mm
- Spring Coil, Black 12 Turn, Silver 14 Turn
- Shock spring wire thickness: Black 0.3mm Silver 0.35
- require the oil of your preference
FEATURES:
- Aluminum shock bodies- Threaded bodies for easy preload adjustment
- Oil dampened shocks with rubber bladders
- Two spring options included
- Threaded shock
YOU WILL RECEIVE:
- Four (4) assembled shocks- Four (4) black springs (medium)
- Four (4) silver Spring (Soft)
REQUIREMENTS:
- Shock oil, installation, and adjustmentSPECIFICATIONS:

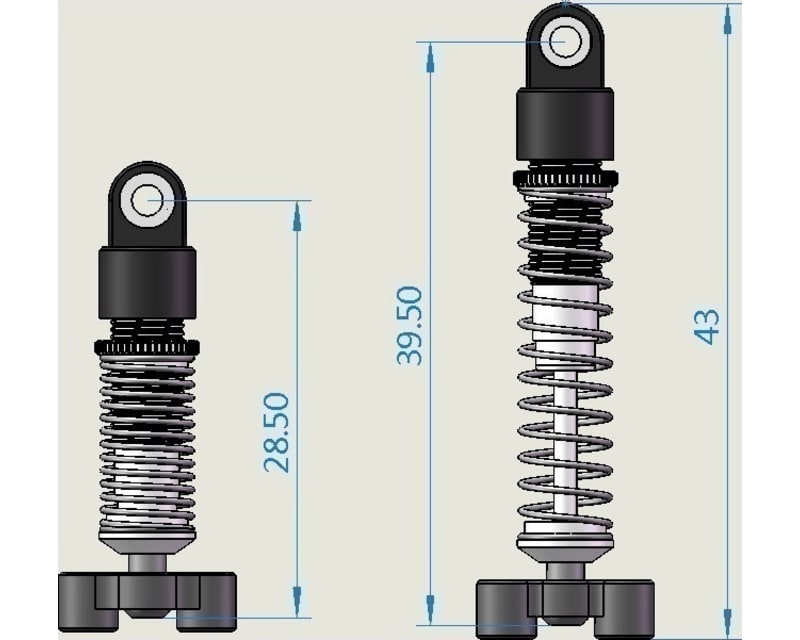

- Stroke: 11~mm- Overall extended/compressed length (slightly adjustable): 43mm / 32mm
- Eye-to-eye extended/compressed length (slightly adjustable): 38mm/28.5mm
- Shock body diameter: ~4.5mm
- Spring free length: ~26mm
- Spring Coil, Black 12 Turn, Silver 14 Turn
- Shock spring wire thickness: Black 0.3mm Silver 0.35
COMMENTS:
- Shocks come assembled, will re-use the stock Kyosho shock lower ball end mount. - require the oil of your preference
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles
Additional details
| Country of origin | China |
| Package dimensions | 3.00" × 3.00" × 0.25" 7.62 cm × 7.62 cm × 0.64 cm |
| Part numbers | 083745383706 KMC43TD02 HRAKMC43TD02 |
| Shipping weight | 0.20 ounces 5.67 grams 0.01 pounds |
