Description

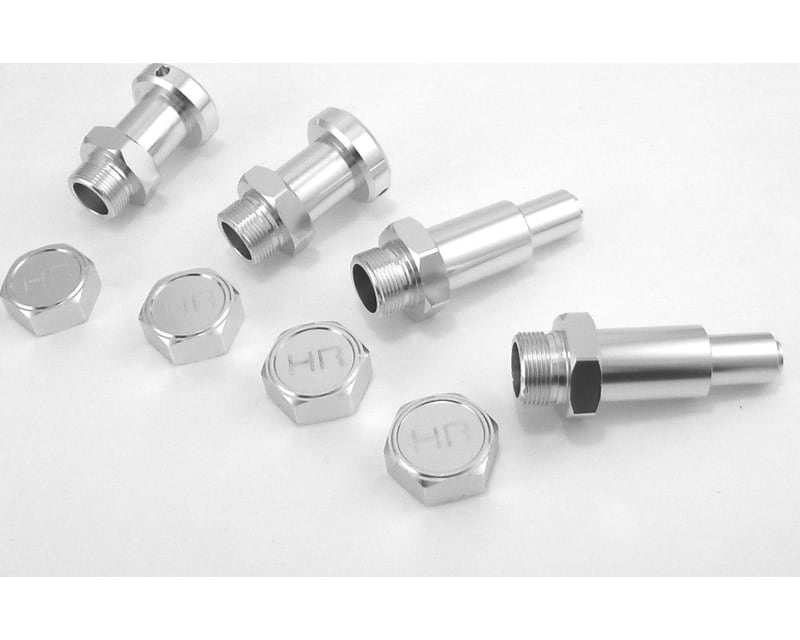

Hot Racing aluminum 23mm hex hub adapters for the HPI 1/5th scale Baja vehicles
- CNC machined billet 6061-T6 aluminum construction
- Allow running 40 series 23mm wheels and tires
- Extends the track width of the vehicle for more stability
- Anodized silver in color

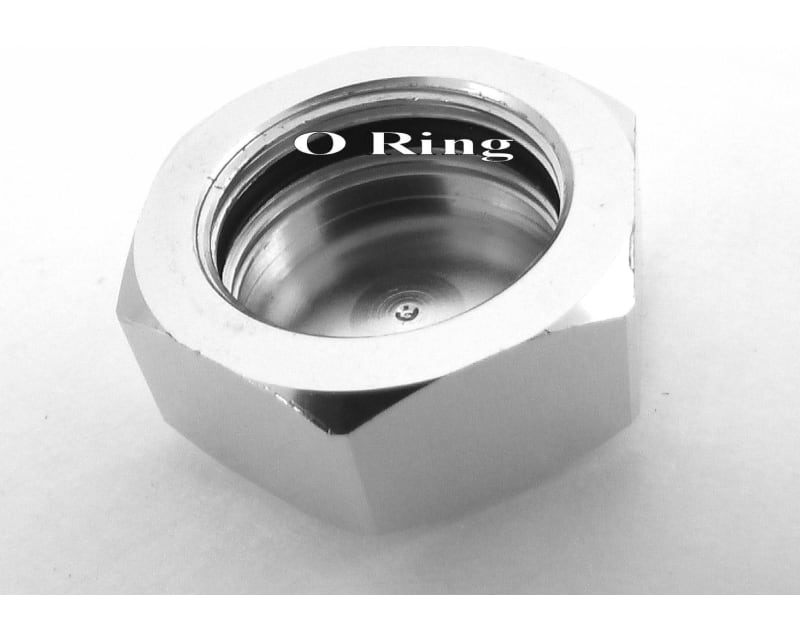

- Wheel nuts have an internal o-ring to maintain position under the most severe conditions
- Two (2) rear hub adapters
- Four (4) 23mm hex wheel nuts
- 40 series 23mm Pro-Line wheels and tires
- Front hubs outer bearing face to hex hub face: 33mm
- Rear hubs drive axle pin to hex hub face: 28.8mm
- Front uses stock bearing with 12mm internal diameter
- Hex hub: 23mm
- A suggested 23mm hex wrench is Pro-Line PRO603802
description revised by: SN June 17, 2015
FEATURES:
- Allow running 40 series 23mm wheels and tires
- Extends the track width of the vehicle for more stability
- Anodized silver in color
- Wheel nuts have an internal o-ring to maintain position under the most severe conditions

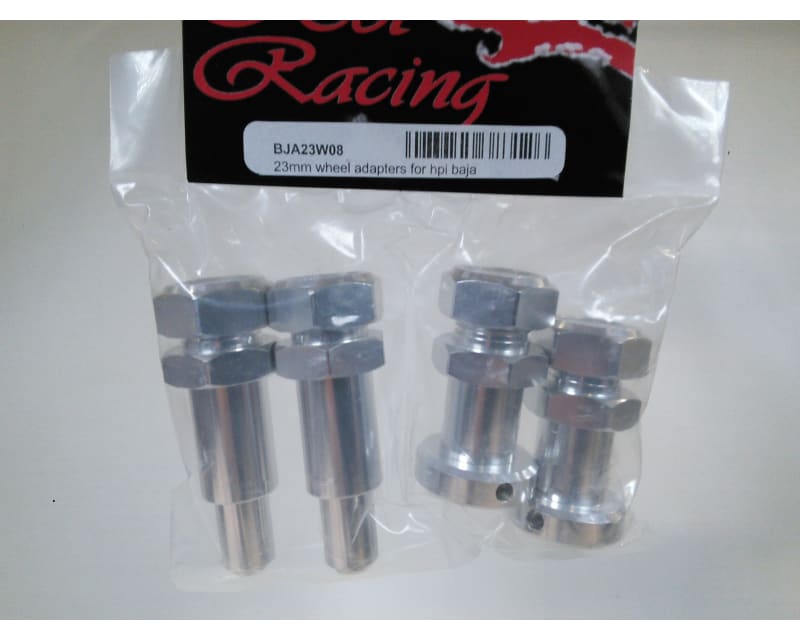

YOU WILL RECEIVE:
- Two (2) front hub adapters- Two (2) rear hub adapters
- Four (4) 23mm hex wheel nuts
REQUIREMENTS:
SPECIFICATIONS:
- Rear hubs drive axle pin to hex hub face: 28.8mm
- Front uses stock bearing with 12mm internal diameter
- Hex hub: 23mm
COMMENTS:
description revised by: SN June 17, 2015
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Additional details
| Country of origin | China |
| Package dimensions | 2.50" × 4.50" × 1.10" 6.35 cm × 11.43 cm × 2.79 cm |
| Part numbers | 917890003885 BJA23W08 840353309876 083745383126 HRABJA23W08 |
| Shipping weight | 4.30 ounces 121.90 grams 0.27 pounds |
