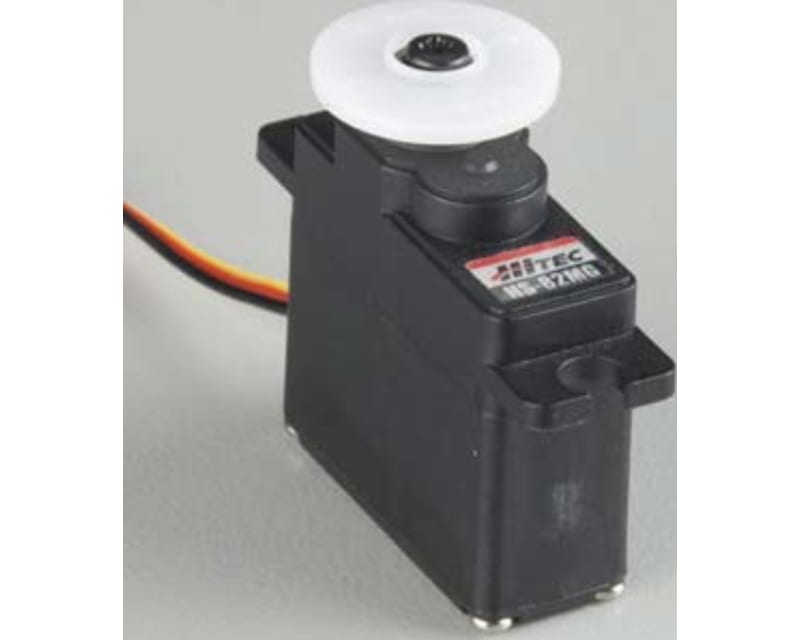

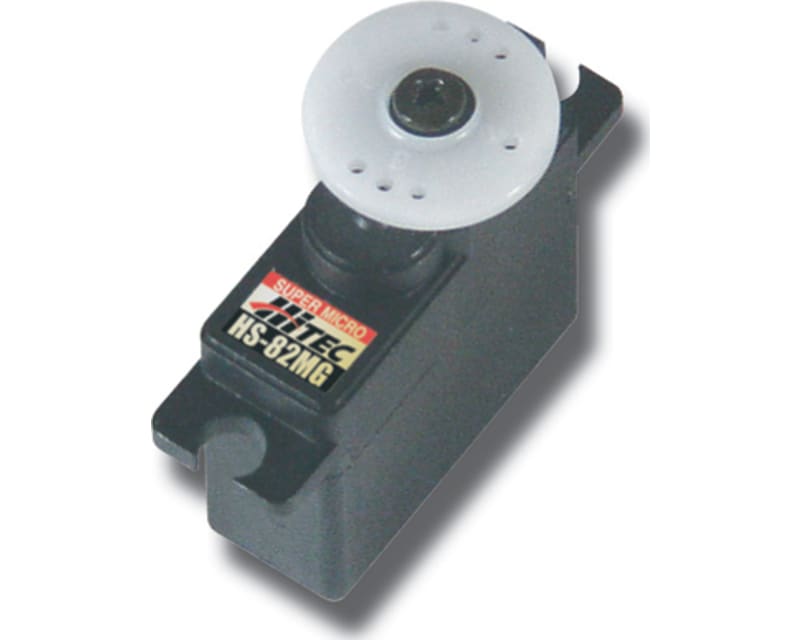

Micro Servo HS-82MG: Universal
Made by Hitec/RCD · HRC32082S
Sale
-31%
$23.99
List price: $34.99
7 in stock
Parts lists
Log in to add this part to a parts list to start planning your next project!
Description
The HS-82MG is perfect for smaller aircraft and helicopters where a durable geaRTRain is required.
- Rugged Metal Gears
Performance
Speed (Second @ 60) 0.12 ~ 0.10
Maximum Torque Range oz. / in. 39 ~ 47
Maximum Torque Range kg. / cm. 2.8 ~ 3.4
Current Draw at Idle 10 mA
No Load Operating Current Draw 280 mA
Stall Current Draw 1,800 mA
Dead Band Width 5 s
Physical
Dimensions (Metric) 29.8 x 12.0 x 29.6
Weight (Ounces) 0.66
Weight (Gram) 19.0
Circuit Type HT7003 Analog SMT
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Metal
Bearing Type None
Output Shaft (type / mm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 28 / 20
FEATURES:
- Strong Three-Pole Ferrite Motor- Rugged Metal Gears
Performance
SPECIFICATIONS:
Operating Voltage Range (Volts DC) 4.8V ~ 6.0VSpeed (Second @ 60) 0.12 ~ 0.10
Maximum Torque Range oz. / in. 39 ~ 47
Maximum Torque Range kg. / cm. 2.8 ~ 3.4
Current Draw at Idle 10 mA
No Load Operating Current Draw 280 mA
Stall Current Draw 1,800 mA
Dead Band Width 5 s
Physical
SPECIFICATIONS:
Dimensions (Inches) 1.17 x 0.47 x 1.16Dimensions (Metric) 29.8 x 12.0 x 29.6
Weight (Ounces) 0.66
Weight (Gram) 19.0
Circuit Type HT7003 Analog SMT
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Metal
Bearing Type None
Output Shaft (type / mm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 28 / 20
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should t here be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Additional details
| Country of origin | China |
| Package dimensions | 1.50" × 1.88" × 2.00" 3.81 cm × 4.78 cm × 5.08 cm |
| Part numbers | 0669962320504 32082S HRC32082S HRCM3282 669962320504 |
| Shipping weight | 1.12 ounces 31.75 grams 0.07 pounds |
