Description

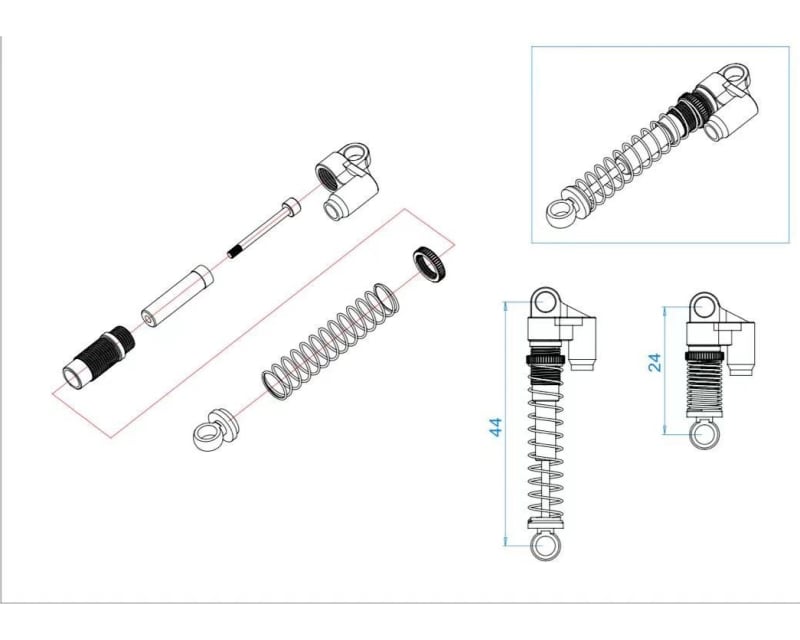

Hot Racing Conversion aluminum Tele Damper kit for SXTF326R01 or SXTF326RX04. These Conversion shocks are friction damped, requiring only a coating of tacky grease .
- Telescopic design for maximum travel
- Threaded shock bodies for quick pre-load adjustments
- Tacky grease to help with smooth damping
- Three spring rates included
- Four (4) Brass Second Steage shock body
- Four (4) upper shock spring adjuster
- Four (4) soft springs (black)
- Four (4) Med Spring (Gold)
- Four (4) Firm springs (silver)
- A 0.05in hex wrench for screws
-Use tacky grease or Silicone diff lub for a heavy coating.
- Compressed length eye-to-eye: ~28.5mm
- Stroke: 20mm
- Spring Length 32mm 14 Turn (0.3, 0.35, 0.4)
- Reservoir is non-functional
- Mount with wide flange outward to retain O-rings.
FEATURES:
- Machined aluminum and brass construction- Telescopic design for maximum travel
- Threaded shock bodies for quick pre-load adjustments
- Tacky grease to help with smooth damping
- Three spring rates included
YOU WILL RECEIVE:
- Four (4) Threaded Shock Body- Four (4) Brass Second Steage shock body
- Four (4) upper shock spring adjuster
- Four (4) soft springs (black)
- Four (4) Med Spring (Gold)
- Four (4) Firm springs (silver)
REQUIREMENTS:
- Use parts from SXTF326R01 or SXTF326RX04- A 0.05in hex wrench for screws
-Use tacky grease or Silicone diff lub for a heavy coating.
SPECIFICATIONS:
- Extended length eye-to-eye: ~48.5mm- Compressed length eye-to-eye: ~28.5mm
- Stroke: 20mm
- Spring Length 32mm 14 Turn (0.3, 0.35, 0.4)
COMMENTS:
- Replaces Axial AXI31612 SCX24 shock set- Reservoir is non-functional
- Mount with wide flange outward to retain O-rings.
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles
Related parts
Additional details
| Country of origin | China |
| Package dimensions | 4.00" × 3.00" × 0.25" 10.16 cm × 7.62 cm × 0.64 cm |
| Part numbers | SXTF485TK04 840353304000 083745345902 HRASXTF485TK04 |
| Shipping weight | 0.38 ounces 10.80 grams 0.02 pounds |
