Description

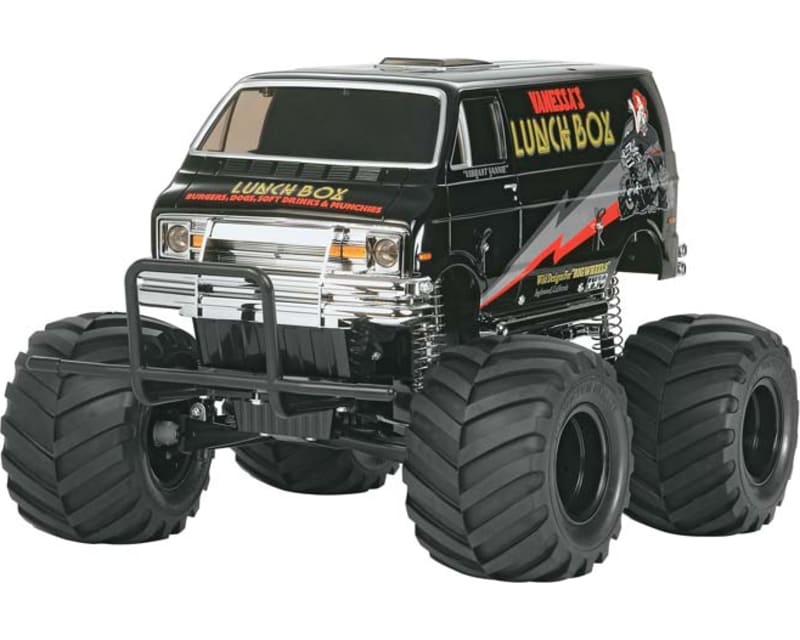

This is the electric powered, radio controlled,
Tamiya Lunch Box Kit with Limited Edition Black Body.
Drive: Rear wheel
Motor: 540 size
Pinion Gear: 10T metal
Electronic Speed Control: Tamiya TEU-105BK with reverse
Differential: Planetary gear
Gearbox: Sealed
Shocks: Friction type
Suspension: Coil spring damped front and rear with front independent
swing axle, rigid rear axle
Body: Shock resistant styrene, molded in black
Steering: Rod with ball adjuster and servo saver
Tires: 4.5" (115mm) diameter, 2.5" (65mm) wide all terrain
Wheels: Black plastic 2.2" (55mm) diameter, 2.5" (65mm) wide
Camber and Caster: Fixed, non-adjustable
540 Motor, Servo Saver, Decals and Instruction Manual
Battery: 6-cell, 7.2V NiMh stick pack with standard connector
Battery Charger: To match selected battery
Transmitter Batteries: Four or eight depending on transmitter
Tools and track equipment
length: 15.1" (385mm)
width: 11.4" (290mm)
height: 8.8" (225mm)
Weight: 3.4lbs (1560g), approximate
Body;
length: 11.8" (300mm)
width: 5.8" (148mm)
height: 4.3" (110mm)
Qty. Size Location Qty. Bearing Set
2 5x11mm Left Rear Shaft 1 DTXC1547
2 5x11mm Right Rear Shaft 1 DTXC1547
4 5x11mm Front Wheels 2 DTXC1547
jxs 12/18/12
ir/jxs
&
Tamiya Lunch Box Kit with Limited Edition Black Body.
FEATURES:
Chassis: ABS plastic box type with metal wheelie bar Drive: Rear wheel
Motor: 540 size
Pinion Gear: 10T metal
Electronic Speed Control: Tamiya TEU-105BK with reverse
Differential: Planetary gear
Gearbox: Sealed
Shocks: Friction type
Suspension: Coil spring damped front and rear with front independent
swing axle, rigid rear axle
Body: Shock resistant styrene, molded in black
Steering: Rod with ball adjuster and servo saver
Tires: 4.5" (115mm) diameter, 2.5" (65mm) wide all terrain
Wheels: Black plastic 2.2" (55mm) diameter, 2.5" (65mm) wide
Camber and Caster: Fixed, non-adjustable
YOU WILL RECEIVE:
1/12 scale Tamiya Lunch Box Kit with Black Body and Wheels, ESC 540 Motor, Servo Saver, Decals and Instruction Manual
REQUIREMENTS:
Radio: 2-channel with steering servo Battery: 6-cell, 7.2V NiMh stick pack with standard connector
Battery Charger: To match selected battery
Transmitter Batteries: Four or eight depending on transmitter
Tools and track equipment
SPECIFICATIONS:
Vehicle; length: 15.1" (385mm)
width: 11.4" (290mm)
height: 8.8" (225mm)
Weight: 3.4lbs (1560g), approximate
Body;
length: 11.8" (300mm)
width: 5.8" (148mm)
height: 4.3" (110mm)
COMMENTS:
To upgrade to Ball Bearings use: Qty. Size Location Qty. Bearing Set
2 5x11mm Left Rear Shaft 1 DTXC1547
2 5x11mm Right Rear Shaft 1 DTXC1547
4 5x11mm Front Wheels 2 DTXC1547
jxs 12/18/12
ir/jxs
&
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Additional details
| Country of origin | Philippines |
| Package dimensions | 19.00" × 13.13" × 5.35" 48.26 cm × 33.35 cm × 13.59 cm |
| Part numbers | TAMC8546 TAM58546 950344585465 4950344585465 |
| Shipping weight | 89.29 ounces 2531.20 grams 5.58 pounds |
