2 Speed Steel Gear System Yeti XL
Made by Hot Racing · YEX1000TX
$98.88
This part is discontinued and we no longer carry it.
Description
The Hot Racing 2 Speed Transmission Conversion for the Axial Yeti XL gives the best of both worlds of fast top end and low crawling power. This two-speed transmission lets you take better advantage of the 4WD on different types of terrain. Drop it into super low gear when you have to crawl over a pile of rocks and then shift back into high speed when you reach the other side. Its almost like having two off-road vehicles in one.
- Hardened steel gear shift mechanism
- CNC machined aluminum shift servo mounts
- Direct fit into Axial Yeti XL transmission and chassis
- Dual ball bearing metal gear servo
- One (1) 34T gear
- One (1) 36T gear
- One (1) gear dog
- One (1) 15T gear
- One (1) 13T gear on shaft
- One (1) 28T gear
- Two (2) 5x11x4mm bearings
- Four (4) 6x12x4mm bearings
- One (1) shift fork
- One (1) shift saver spring
- Brackets
- Hardware
- 2nd gear ratio: 1.79:1 (stock ratio)
- Extra radio channel for shifting
- Setting appropriate servo trim and throw (i. e. dual rate, steering rate)
description revised by: SN March 20, 2017
FEATURES:
- Hardened steel gears and shafts- Hardened steel gear shift mechanism
- CNC machined aluminum shift servo mounts
- Direct fit into Axial Yeti XL transmission and chassis
- Dual ball bearing metal gear servo

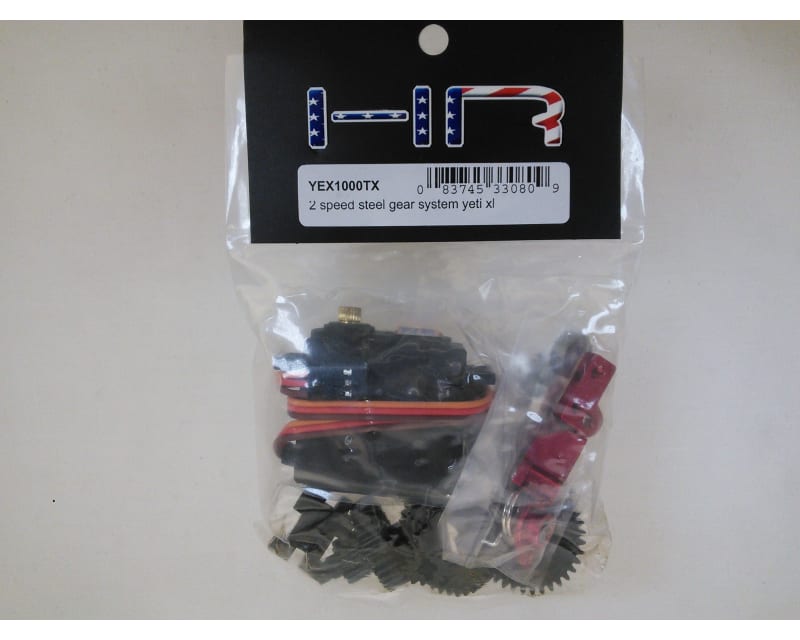

YOU WILL RECEIVE:
- One (1) dual ball bearing metal gear servo- One (1) 34T gear
- One (1) 36T gear
- One (1) gear dog
- One (1) 15T gear
- One (1) 13T gear on shaft
- One (1) 28T gear
- Two (2) 5x11x4mm bearings
- Four (4) 6x12x4mm bearings
- One (1) shift fork
- One (1) shift saver spring
- Brackets
- Hardware
SPECIFICATIONS:
- 1st gear ratio: 5.13:1- 2nd gear ratio: 1.79:1 (stock ratio)
REQUIREMENTS:
- Assembly and installation- Extra radio channel for shifting
- Setting appropriate servo trim and throw (i. e. dual rate, steering rate)
COMMENTS:
- Compatible with stock or Hot Racing YEX38M01 two-speed transmission casedescription revised by: SN March 20, 2017
Related Parts
Manufacturer Information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible Vehicles (1)
Additional Details
| Country of origin | China |
| Package dimensions | 6.00" × 3.50" × 1.00" 15.24 cm × 8.89 cm × 2.54 cm |
| Part numbers | YEX1000TX 083745330809 HRAYEX1000TX |
| Shipping weight | 6.30 ounces 178.60 grams 0.39 pounds |
