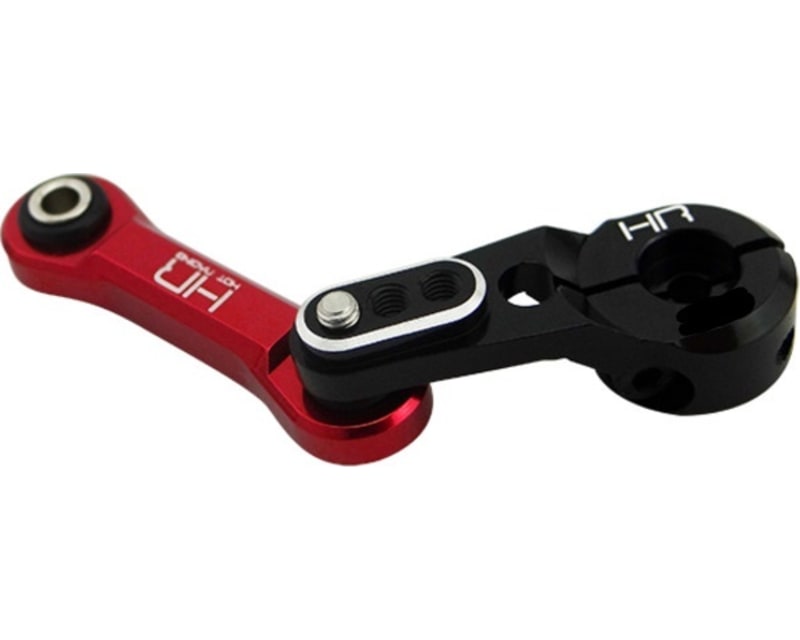

Aluminum Fixed Link Steering 23t Servo Arm Arrma 1/8
Made by Hot Racing · AON48SH23
$27.88
10+ in stock
Parts lists
Log in to add this part to a parts list to start planning your next project!
Description
Hot Racing aluminum fixed steering link and locked servo arm for the 1/8 Arrma Kraton BLX, Notorious BLX, Outcast BLX, Senton 6s BLX, Talion BLX, Typhon BLX and 1/7 LimitLess InFraction Mojave, Felony. See vehicle model compatibility in
- Clamping servo horn gives precise fit to lock onto servo spline
- Steel pivot balls
- Red and black anodized
- One (1) aluminum locked servo arm
- Known to fit the following Arrma vehicle with a 23 Spline Servo part numbers. The vehicle part number can be found on Arrma's website, the literature that came with the vehicle, or on the vehicle box around the barcode. If a vehicle is marked below with the word "optional, " then the part may fit, but may require some modification.
- Felony : ARA7617V2T1/2 (Black/Orange)
- InFraction ARA109001, ARA7615V2T1/2 (Blue/Silver)
- Mojave : ARA106058T1/2 (Green/Red)
- Kraton: AR106005, AR106015, AR106018, AR106029/31 (red/green), ARA106040T1/2 (red/blue)
- LimitLess ARA109011
- Notorious: AR106034/6 (black/blue), ARA106044T1/2 (black/blue)
- Outcast: AR106021, AR106027, AR106032/3 (silver/orange), ARA106042T1/2 (silv/org)
- Senton: AR106007, AR102654, AR102673
- Talion: AR106003, AR106014, AR106030 (2018 V3 model), ARA106048 (V4)
- Typhon: AR106001, AR106013, AR106028, ARA106046
FEATURES:
- CNC machined 6061 aluminum for stronger, more precise steering- Clamping servo horn gives precise fit to lock onto servo spline
- Steel pivot balls
- Red and black anodized
YOU WILL RECEIVE:

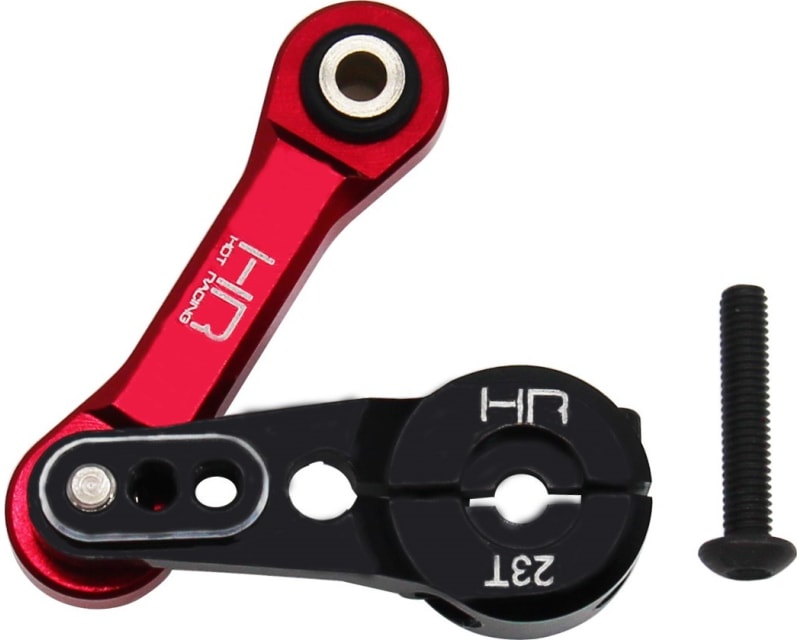

- One (1) aluminum fixed link steering- One (1) aluminum locked servo arm
REQUIREMENTS:
- Servo with 23 tooth (KO, Sanwa, JR, Airtronics, Spektrum)SPECIFICATIONS:
- Spline: 23TCOMMENTS:
- Replaces Arrma ARA340180 servo horn and AR330230 steering link- Known to fit the following Arrma vehicle with a 23 Spline Servo part numbers. The vehicle part number can be found on Arrma's website, the literature that came with the vehicle, or on the vehicle box around the barcode. If a vehicle is marked below with the word "optional, " then the part may fit, but may require some modification.
- Felony : ARA7617V2T1/2 (Black/Orange)
- InFraction ARA109001, ARA7615V2T1/2 (Blue/Silver)
- Mojave : ARA106058T1/2 (Green/Red)
- Kraton: AR106005, AR106015, AR106018, AR106029/31 (red/green), ARA106040T1/2 (red/blue)
- LimitLess ARA109011
- Notorious: AR106034/6 (black/blue), ARA106044T1/2 (black/blue)
- Outcast: AR106021, AR106027, AR106032/3 (silver/orange), ARA106042T1/2 (silv/org)
- Senton: AR106007, AR102654, AR102673
- Talion: AR106003, AR106014, AR106030 (2018 V3 model), ARA106048 (V4)
- Typhon: AR106001, AR106013, AR106028, ARA106046
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles
Related parts
Additional details
| Country of origin | China |
| Package dimensions | 4.00" × 3.00" × 1.00" 10.16 cm × 7.62 cm × 2.54 cm |
| Part numbers | AON48SH23 AOR48SH23 ANN48SH23 840353300538 083745312645 HRAAON48SH23 |
| Shipping weight | 0.50 ounces 14.17 grams 0.03 pounds |
