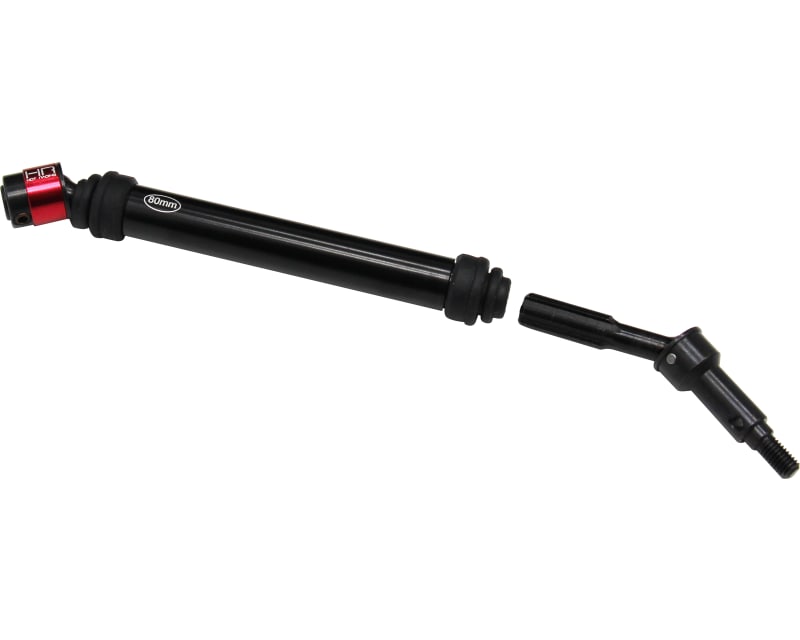

High Performance Cv Long Driveshafts Front or Rear Arrma 1:10
Made by Hot Racing · TFF288RC
$98.88
10+ in stock
Parts lists
Log in to add this part to a parts list to start planning your next project!
Description
Hot Racing optional upgrade heavy duty Long splined star drive axle kit for 1/10 Arrma 4X4 vehicles 4S. See comments below for specific vehicle fit information.

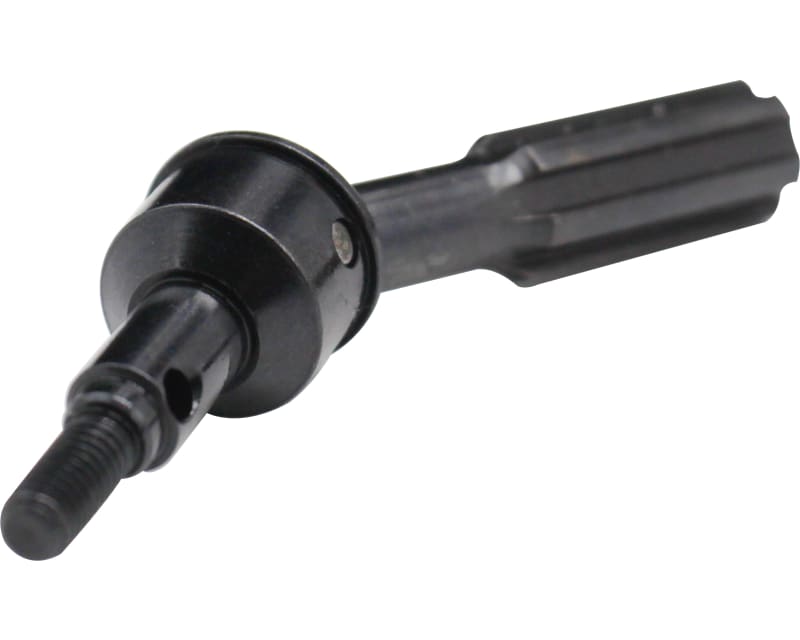

- CNC machined and hardened S2 spring steel wheel axle stubs
- CNC machined and hardened #45 steel outdrives, drive hubs, and slider spline
- Hard anodized black aluminum 85mm slider
- Red anodized aluminum pin capture rings with rubber o-rings to prevent movement
- Rubber dust boot to retain lubrication and help protect slider against elements
- Fits front or rear

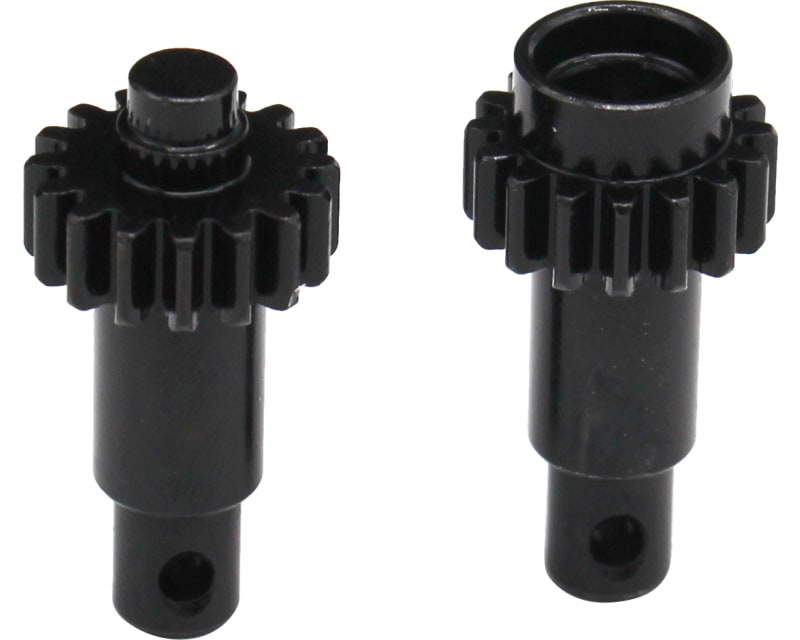

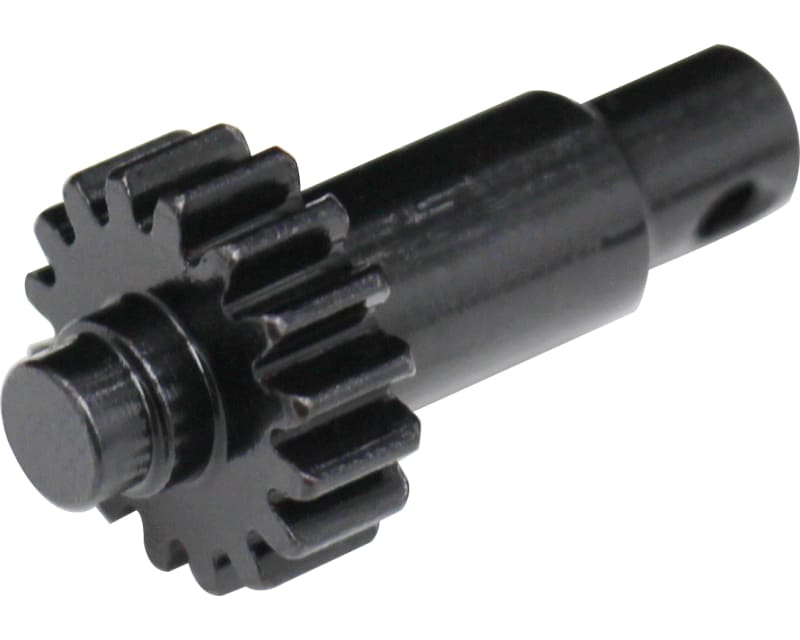

- Two (2) CNC steel Output diff gear
- Two (2) M4x2.5x11mm screw shafts
- Removable thread lock (blue threadlocking compound) on screws threading into metal
- Light grease for CV joints and shaft slider splines helps maintain their longevity
- Replacement parts include:
- Known to fit the following Arrma vehicle part numbers. The vehicle part number can be found on Arrmas website, the literature that came with the vehicle, or on the vehicle box around the barcode. If a vehicle is marked below with the word "optional, " then the part may fit, but may require some modification.
- KRATON 4X4 4S BLX: ARA102690
- OUTCAST 4X4 4S BLX: ARA102692
FEATURES:
- Replaces stock diff outdrives and factory plastic drive axles- CNC machined and hardened S2 spring steel wheel axle stubs
- CNC machined and hardened #45 steel outdrives, drive hubs, and slider spline
- Hard anodized black aluminum 85mm slider
- Red anodized aluminum pin capture rings with rubber o-rings to prevent movement
- Rubber dust boot to retain lubrication and help protect slider against elements
- Fits front or rear
YOU WILL RECEIVE:
- Two (2) CVD shaft assemblies- Two (2) CNC steel Output diff gear
- Two (2) M4x2.5x11mm screw shafts
REQUIREMENTS:
- Installation- Removable thread lock (blue threadlocking compound) on screws threading into metal
- Light grease for CV joints and shaft slider splines helps maintain their longevity
SPECIFICATIONS:
- Approximate overall collapsed length: 148mmCOMMENTS:

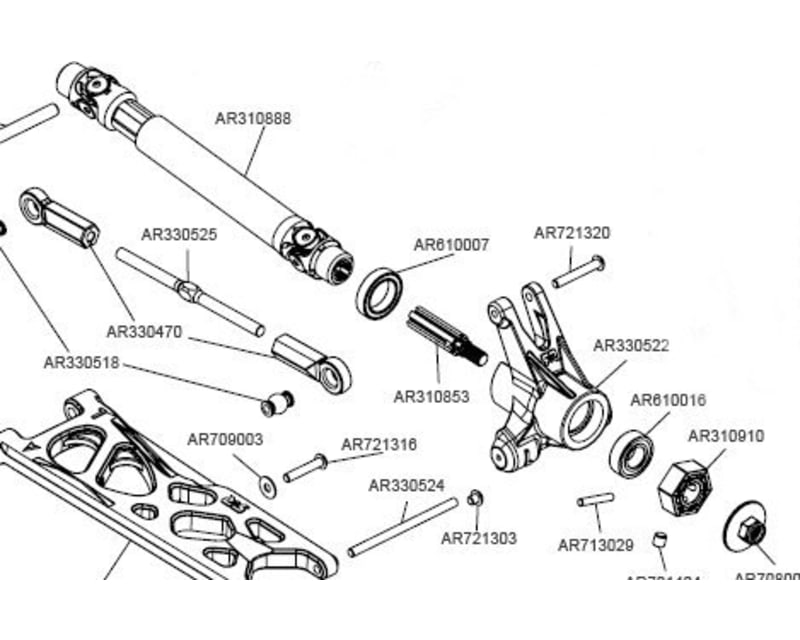

- Replaces stock Arrma AR310775 diff outdrives and AR310887 front shafts, or AR310888 rear shafts- Replacement parts include:
- Known to fit the following Arrma vehicle part numbers. The vehicle part number can be found on Arrmas website, the literature that came with the vehicle, or on the vehicle box around the barcode. If a vehicle is marked below with the word "optional, " then the part may fit, but may require some modification.
- KRATON 4X4 4S BLX: ARA102690
- OUTCAST 4X4 4S BLX: ARA102692
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Related parts
Additional details
| Country of origin | China |
| Package dimensions | 3.99" × 3.99" × 0.25" 10.13 cm × 10.13 cm × 0.64 cm |
| Part numbers | TFF288RC 840353304451 083745297386 HRATFF288RC |
| Shipping weight | 4.60 ounces 130.41 grams 0.29 pounds |
