Description

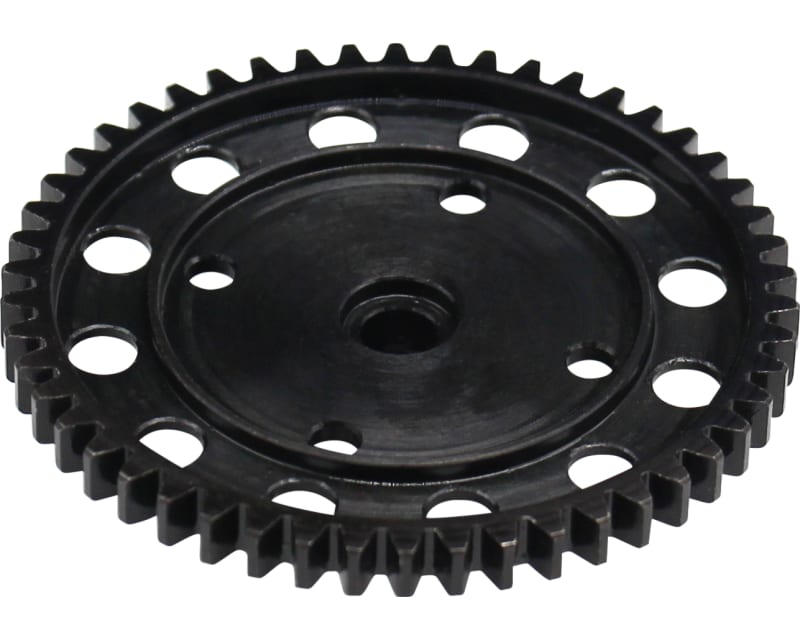

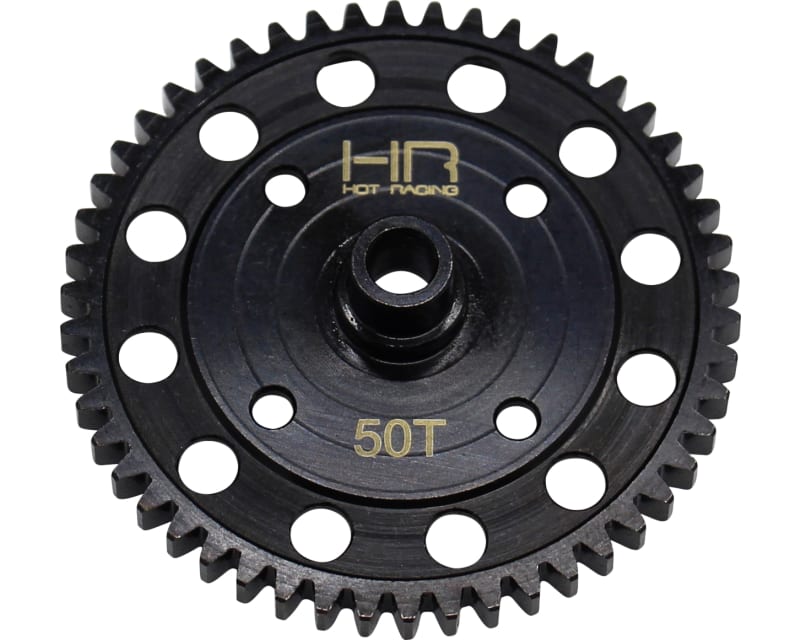

Hot Racing 50 tooth hardened steel Modulus 1 (1.0 metric pitch) spur gear for Arrma 1/8 4X4 vehicles
- Black oxide finished
- Laser etched tooth count marking
- Recommended to use medium thread lock on screws
- Gear face width: 4.5 mm
- Known to fit the following Arrma vehicle part numbers. The vehicle part number can be found on Arrma's website, the literature that came with the vehicle, or on the vehicle box around the barcode. If a vehicle is marked below with the word "optional, " then the part may fit, but may require some modification.
- Kraton: AR106005, AR106015, AR106018, AR106029/31 (red/green), ARA106040T1/2 (red/blue)
- Notorious: AR106034/6 (black/blue), ARA106044T1/2 (black/blue)
- Outcast: AR106021, AR106027, AR106032/3 (silver/orange), ARA106042T1/2 (silv/org)
- Senton: AR106007, AR102654, AR102673
- Talion: AR106003, AR106014, AR106030 (2018 V3 model), ARA106048 (V4)
- Typhon: AR106001, AR106013, AR106028, ARA106046
FEATURES:
- CNC machined hardened steel construction- Black oxide finished
- Laser etched tooth count marking
YOU WILL RECEIVE:
- One (1) 50 tooth, 1.0 modulus steel spur gearREQUIREMENTS:
- Installation- Recommended to use medium thread lock on screws
SPECIFICATIONS:
- Overall diameter: 52mm- Gear face width: 4.5 mm
COMMENTS:
- Replaces AR310429 stock 50T spur gear- Known to fit the following Arrma vehicle part numbers. The vehicle part number can be found on Arrma's website, the literature that came with the vehicle, or on the vehicle box around the barcode. If a vehicle is marked below with the word "optional, " then the part may fit, but may require some modification.
- Kraton: AR106005, AR106015, AR106018, AR106029/31 (red/green), ARA106040T1/2 (red/blue)
- Notorious: AR106034/6 (black/blue), ARA106044T1/2 (black/blue)
- Outcast: AR106021, AR106027, AR106032/3 (silver/orange), ARA106042T1/2 (silv/org)
- Senton: AR106007, AR102654, AR102673
- Talion: AR106003, AR106014, AR106030 (2018 V3 model), ARA106048 (V4)
- Typhon: AR106001, AR106013, AR106028, ARA106046
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles
Additional details
| Country of origin | China |
| Package dimensions | 3.99" × 3.99" × 0.25" 10.13 cm × 10.13 cm × 0.64 cm |
| Part numbers | AON50T SAON50T ANN50T AON5OT 840353300545 083745297324 HRAAON50T |
| Shipping weight | 1.12 ounces 31.75 grams 0.07 pounds |
