6 Led Add-On for Rpm Roof Canisters 3mm 14

Product Features
*Brightest LEDs Industry Wide
*Simple & Easy Installation
*All Mounting Hardware Included
*Fast Body Removal
*LED Add-On (LED Controller Req. ) Overview This is your no-solder LED lighting solution for RPM Light Canisters & RPM Tail Lights! Use RCL106A to add 6 3mm white LED lights to RPM Roof Canisters to any controller with 6 extra constant LED channels (see RCL104). Add-On for RCL104 to make a 10 LED System. Compatible with RPM Roof-Mounted Light Bar Set RPM80922, RPM80923 & RPM80925
Direct fit for Slash 4x4, Slash & SC10. To change LED sizes or colors use 5mm or 3mm LEDs. This system add-on requires a LED controller and power source. Add-On for RCL104. If not used with RCL104 use with Standard 10 LED Controller RCL5051 or any other LED controller with available channels.

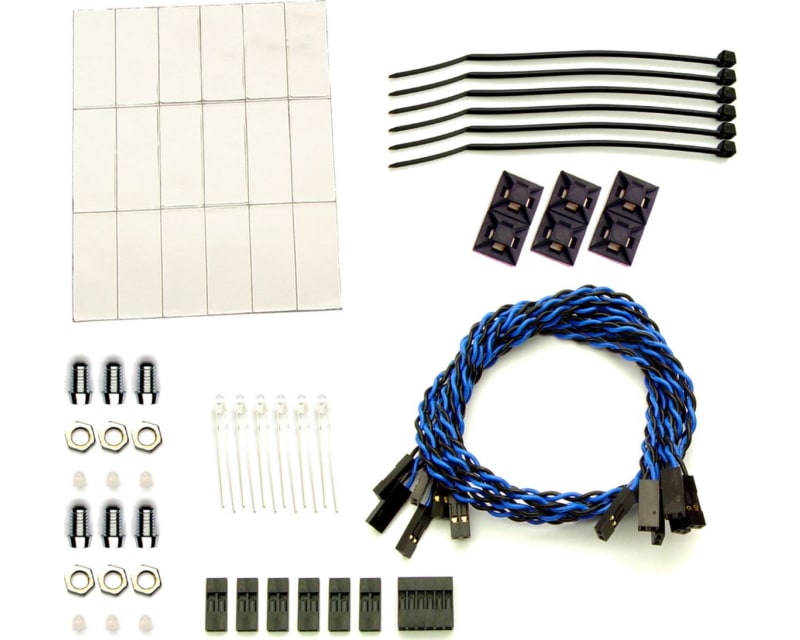

YOU WILL RECEIVE:

Instruction Set - (6) 14" wire extensions RCL539014 (6) 3mm white LEDs RCL5280W (6) 2P connector housings (2) zip ties RCL5080

SPECIFICATIONS:

TOTAL LED CURRENT DRAW (@6V): 110mA (A standard servo draws approx. 350mA) Blue, Green, White, White Strobe, Red Strobe LEDs FORWARD VOLTAGE: 3.2V MAX CURRENT: 30mA Amber, Red LEDs FORWARD VOLTAGE: 1.9V MAX CURRENT: 30mA DIY HOBBYISTS: If connecting LEDs directly to power a current limiting resistor must be installed on each LED or it will blow and void the warranty. (160 ohm @ 6V)
*Lights are designed to be used in extreme nighttime and low visibility running environments and are very high output.
*DO NOT look directly into beam.
