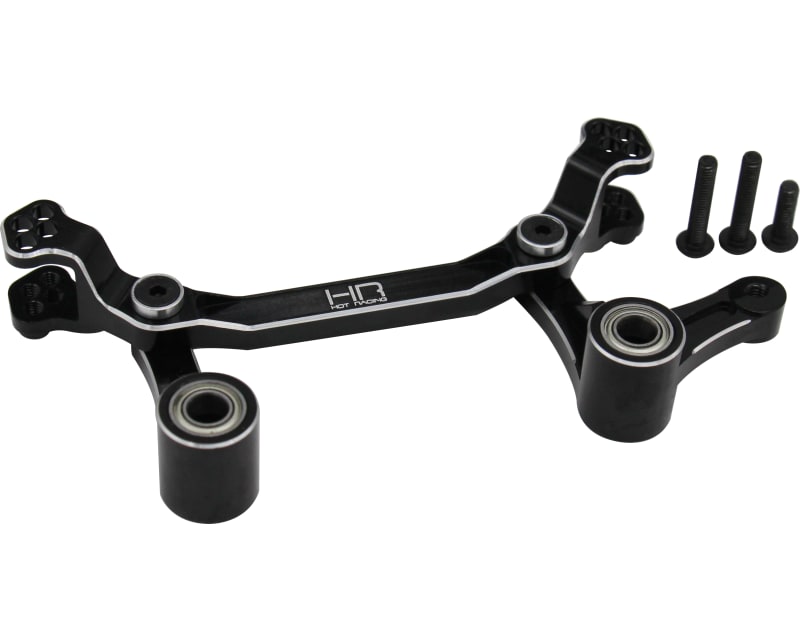

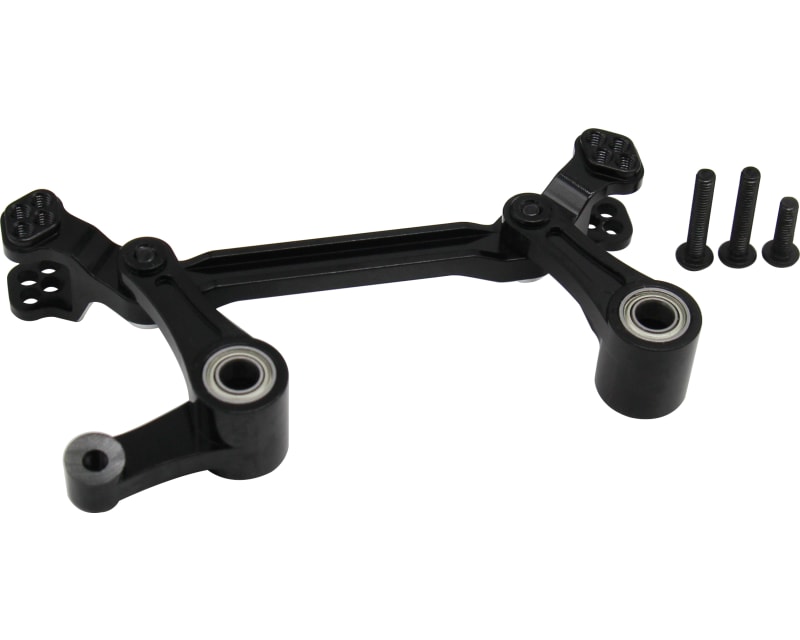

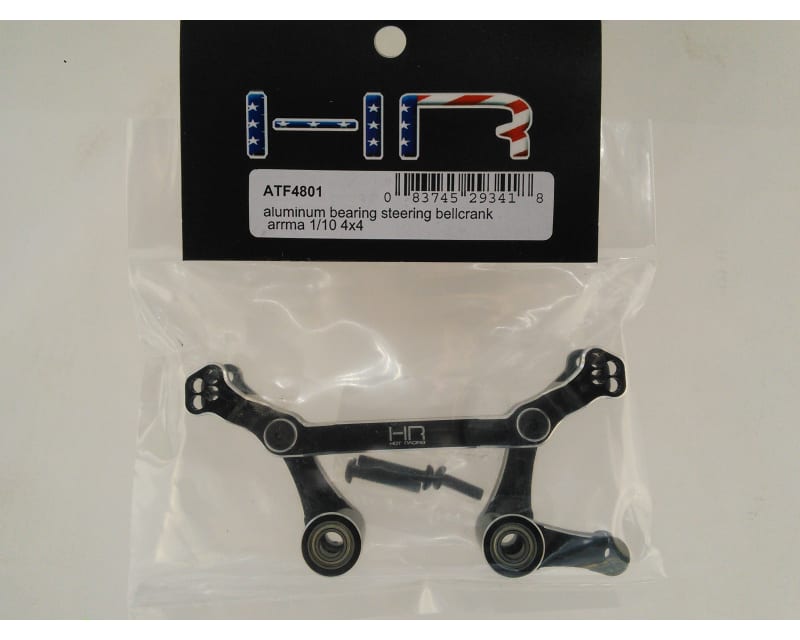

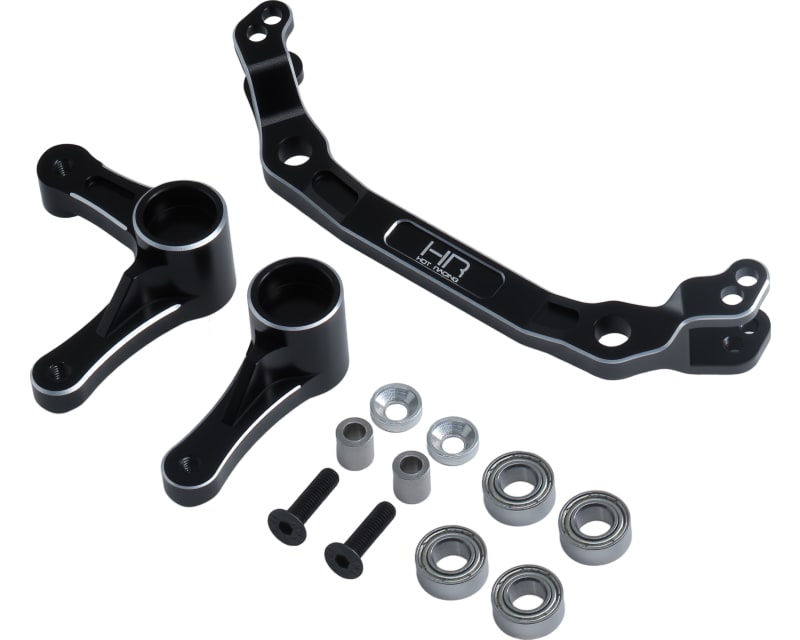

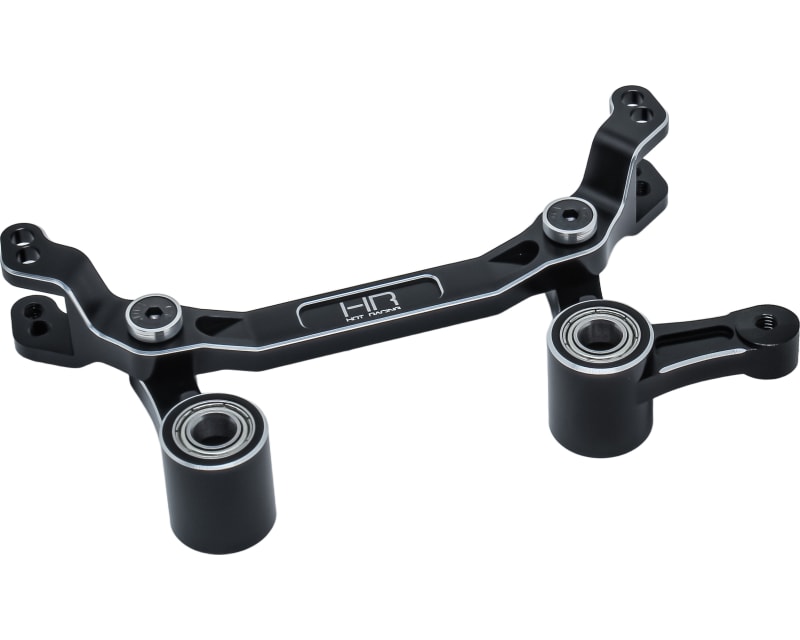

Aluminum Bearing Steering Bellcrank Arrma 1:10 4x4 3s 4s
Made by Hot Racing · ATF4801
$53.88
10+ in stock
Parts lists
Log in to add this part to a parts list to start planning your next project!
Description
Hot Racing aluminum steering bellcrank for 1/10 Arrma 4X4 vehicles. See comments below for specific vehicle fit information.
- CNC machined aluminum with ball bearings provides a rigid, strong steering assembly for precise steering control
-Bushing: m3-ID, 5mm-OD, 5.5mm length
- Known to fit the following Arrma vehicle part numbers. The vehicle part number can be found on Arrma's website, the literature that came with the vehicle, or on the vehicle box around the barcode. If a vehicle is marked below with the word "optional, " then the part may fit, but may require some modification.
- Big Rock 4X4 3S BLX: AR102711 (NOT V3 Crew Cab)
- Granite 4X4 3S BLX: AR102666 (NOT V3, ARA4302V3T1/2)
- Granite 4X4: AR102665 (green), AR102676 (red)
- Senton 4X4: AR102667 (red), AR102678 (blue)
- Senton 4X4 3S BLX: AR102668
- Typhon 4X4 3S BLX: AR102696
-Outcast 4X4 4S BLX ARA102692
- Kraton 4X4 4S BLX ARA102690
description revised by: JG, 2/21
FEATURES:
- Improves steering precision- CNC machined aluminum with ball bearings provides a rigid, strong steering assembly for precise steering control
YOU WILL RECEIVE:
- One (1) steering ball bearing bellcrankREQUIREMENTS:
- Recommended to use a removable thead-locking adhesive on screws threading into metalSPECIFICATIONS:
- Bearings: 5x10x4mm-Bushing: m3-ID, 5mm-OD, 5.5mm length
COMMENTS:
- Replaces Arrma plastic AR340132 steering bellcranks- Known to fit the following Arrma vehicle part numbers. The vehicle part number can be found on Arrma's website, the literature that came with the vehicle, or on the vehicle box around the barcode. If a vehicle is marked below with the word "optional, " then the part may fit, but may require some modification.
- Big Rock 4X4 3S BLX: AR102711 (NOT V3 Crew Cab)
- Granite 4X4 3S BLX: AR102666 (NOT V3, ARA4302V3T1/2)
- Granite 4X4: AR102665 (green), AR102676 (red)
- Senton 4X4: AR102667 (red), AR102678 (blue)
- Senton 4X4 3S BLX: AR102668
- Typhon 4X4 3S BLX: AR102696
-Outcast 4X4 4S BLX ARA102692
- Kraton 4X4 4S BLX ARA102690
description revised by: JG, 2/21
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles
Related parts
Additional details
| Country of origin | China |
| Package dimensions | 5.00" × 3.75" × 0.75" 12.70 cm × 9.53 cm × 1.91 cm |
| Part numbers | ATF4801 TFF4801 ATE4801 840353306950 083745293418 HRAATF4801 |
| Shipping weight | 1.26 ounces 35.70 grams 0.08 pounds |
