Steel & Aluminum Hd CVD Splined Axles TRA E-Revo 2.0
Made by Hot Racing · ERVT288RC
$68.88
10+ in stock
Parts lists
Log in to add this part to a parts list to start planning your next project!
Description

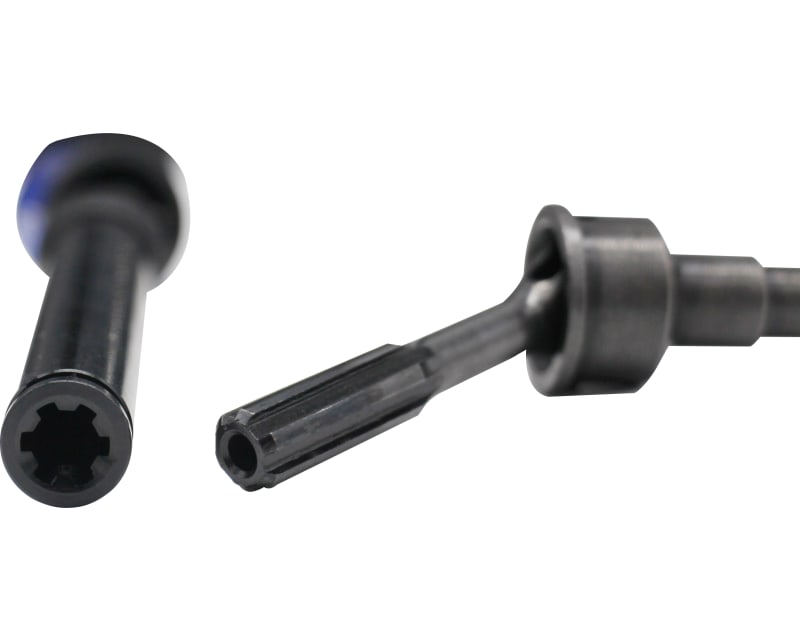

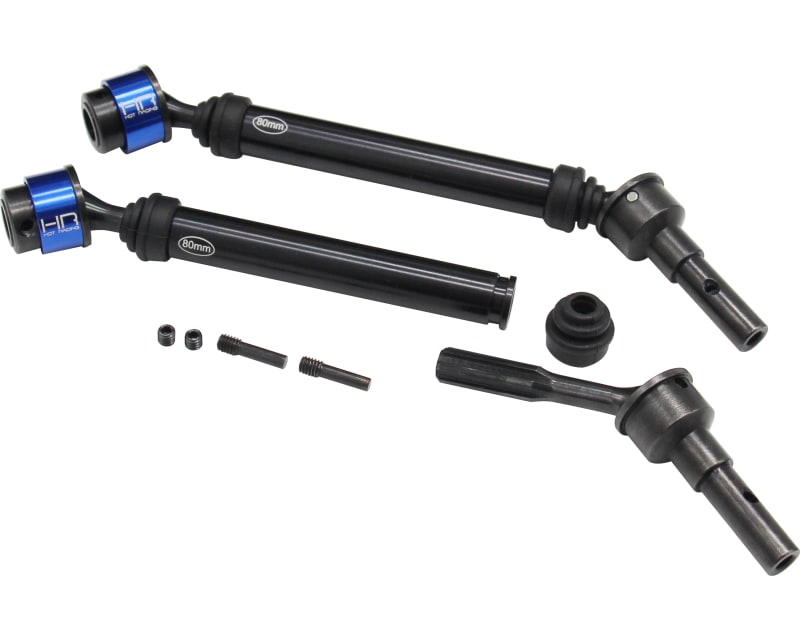

Hot Racing heavy duty steel and aluminum splined star drive CVD front or rear axles for the TRA E-Revo 2.0
- CNC machined aluminum slider tube
- Blue anodized aluminum pin capture rings with rubber o-rings to prevent movement
- Rubber dust cover boots
- Replaces factory dogbone style axle and outdrives for a longer lasting assembly
- Fits front or rear
- Two (2) M4x3x15.5mm screw shaft
- Installation to drive assembly
- Recommended to maintain CV joint and shaft spline with grease
- Recommended to medium thread lock on screws threading into metal
- Extended length, overall resulting in zero shaft engagement: mm
- Collapsed length, wheel pin to outdrive pin: mm
- Extended length, wheel pin to outdrive pin resulting in zero shaft engagement: mm
- Slider pin: 2x10mm
- For center driveshafts, see Hot Racing: ERVT37CC
description revised by: SN February 13, 2019
FEATURES:
- CNC machined #45 hardened carbon steel CVs, drive hub, male slider spline, and stub axle- CNC machined aluminum slider tube
- Blue anodized aluminum pin capture rings with rubber o-rings to prevent movement
- Rubber dust cover boots
- Replaces factory dogbone style axle and outdrives for a longer lasting assembly
- Fits front or rear
YOU WILL RECEIVE:
- Two (2) front splined CVD shaft assemblies- Two (2) M4x3x15.5mm screw shaft
REQUIREMENTS:
- Order two sets to outfit both front and rear of vehicle. - Installation to drive assembly
- Recommended to maintain CV joint and shaft spline with grease
- Recommended to medium thread lock on screws threading into metal
SPECIFICATIONS:
- Collapsed length, overall: mm- Extended length, overall resulting in zero shaft engagement: mm
- Collapsed length, wheel pin to outdrive pin: mm
- Extended length, wheel pin to outdrive pin resulting in zero shaft engagement: mm
- Slider pin: 2x10mm
COMMENTS:
- Replaces TRA #8652 outdrive cups, #8650 driveshaft, #8563 stub axle- For center driveshafts, see Hot Racing: ERVT37CC
description revised by: SN February 13, 2019
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles
Related parts
Additional details
| Country of origin | China |
| Package dimensions | 9.00" × 3.00" × 0.50" 22.86 cm × 7.62 cm × 1.27 cm |
| Part numbers | ERVT288RC 840353306899 083745293272 HRAERVT288RC |
| Shipping weight | 6.30 ounces 178.60 grams 0.39 pounds |
