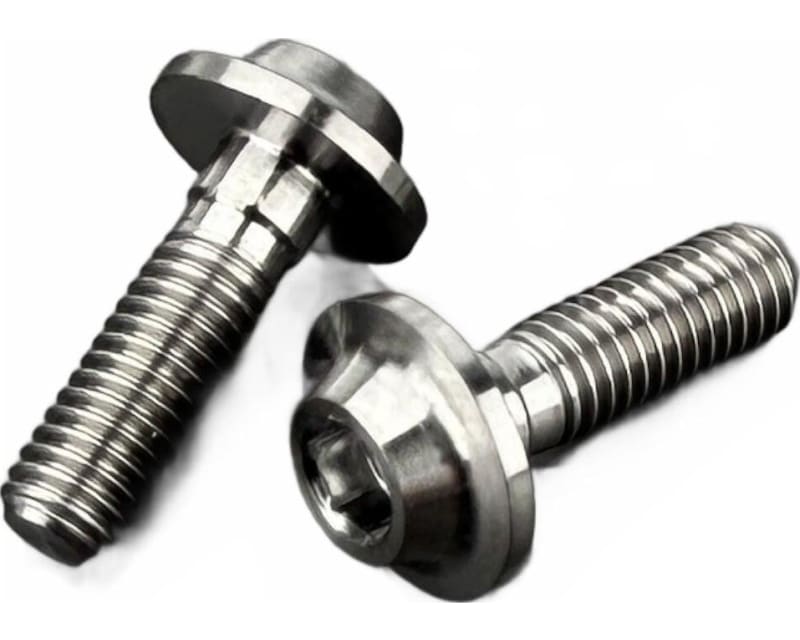

R1WURKS Titanium Flanged Screws M3x10mm Button Head (2 pieces)

Our popular M3 button head screws are now available with a larger flanged head for improved load distribution. Theyre perfect for motor mounting, servo installations, and any application where enhanced holding power from a wider head is beneficial. These screws also feature a precision-broached 2.5mm hex socket, allowing for reliable torque without the risk of stripping the hex, a common issue with screws of this type that rely on a smaller 2mm hex.
Features and
In-House Ultra-High Precision Swiss Machining
High-strength grade 5 (Ti-6Al-4V) titanium
Tight tolerance hex broaching
Cold-formed threads. Unlike traditional cut threads, which disrupt the materials natural grain structure, cold-formed threads are rolled into shape, refining the metals grain flow for a stronger, more uniform structure.
2.5mm hex provides higher torque capacity and greatly reduces the risk of stripping
Larger head spreads the clamping force over a wider surface
Securely fastens to aluminum or soft materials without causing distortion or surface damage
light weight head design
Color Options:
Silver (Natural Titanium)
Two flanged button head screws (select preferred size)
Recommended Screw Lengths for Various Applications:
5mm thick motor plates, B7.1, T7, SC7: Use 8mm length
4mm thick motor plates, DC1, DC1.2: Use 8mm length
3mm thick motor plates, XB2, LD3, 22X: Use 6mm length
Motor cam/slide, B84, B74.2: Use 10mm length
Servo mounting: Use 6mm length
