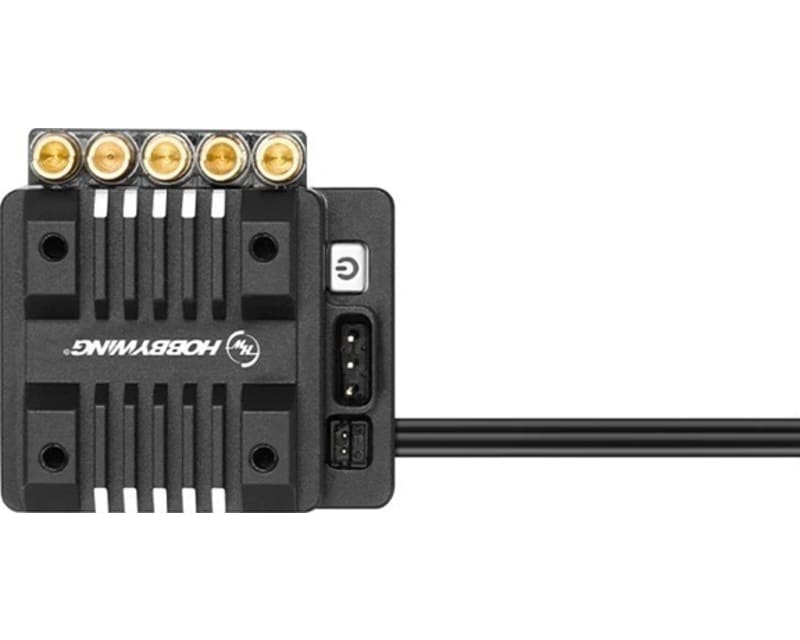

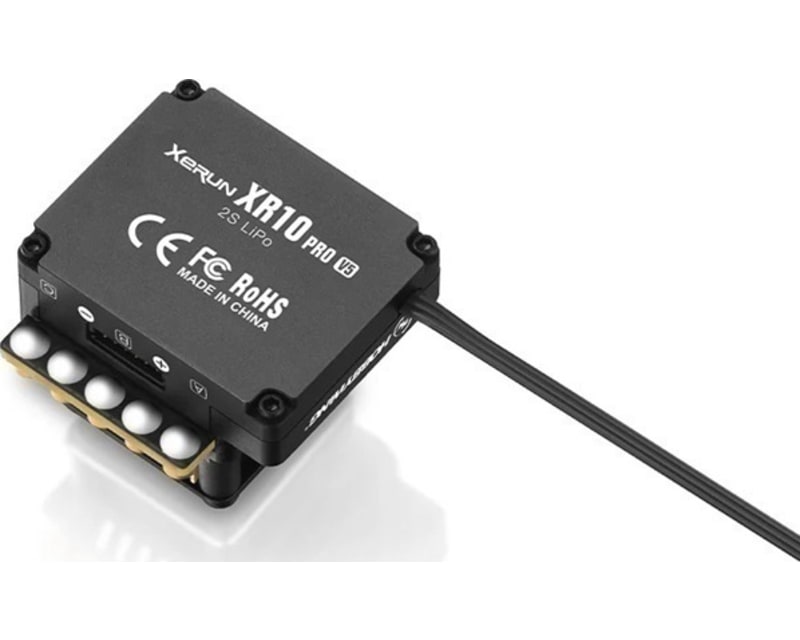

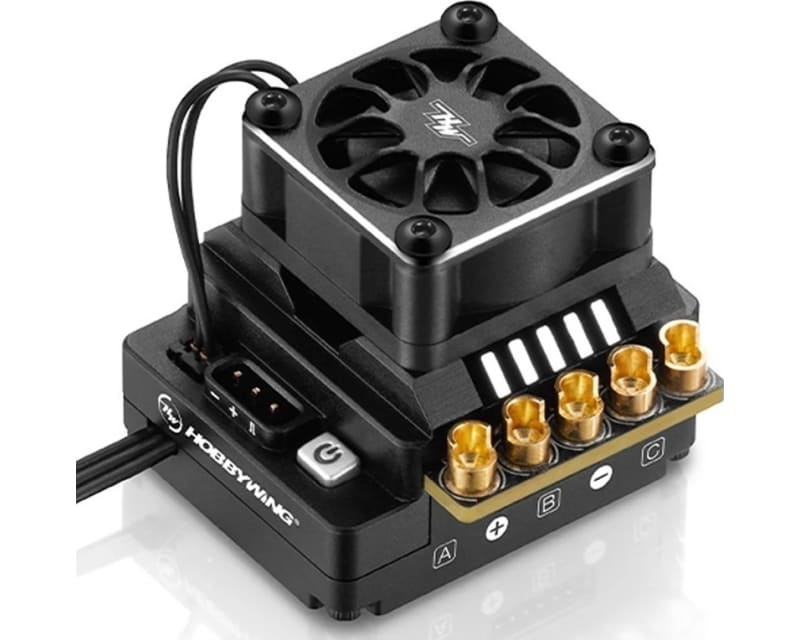

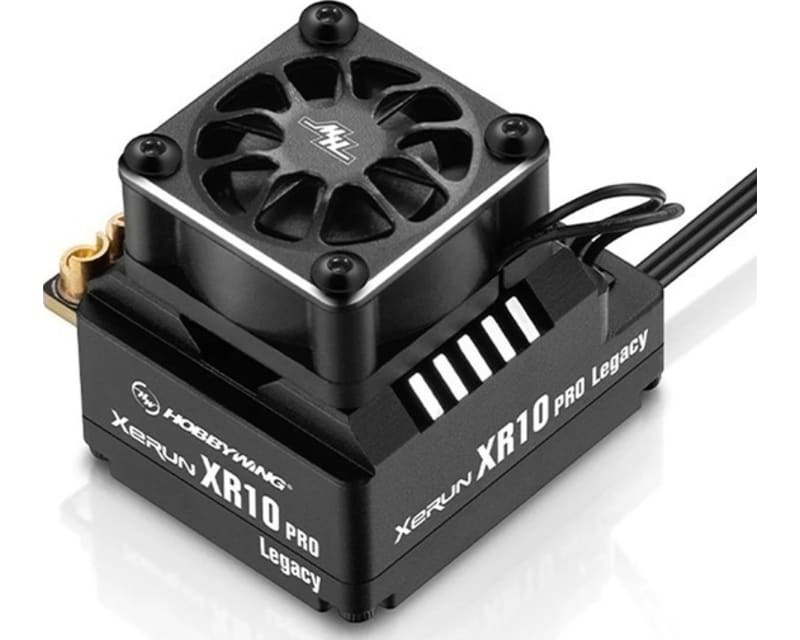

Xerun Xr10 Pro Esc - Legacy Edition
Made by Hobbywing · HWI30112800
Original price: $223.78 · Sale: $149.99
Log in to add this part to a parts list to start planning your next project!
Description
Legendary Design. Proven Performance. Unbeatable Value. (2026)
Factory Decals and Accessories
Separate programming port to power an external fan or connect an LCD Program Box Pro or OTA Programmer to the ESC.
Variable frequency regulation of PWM and brake frequencies allows users to precisely regulate the driving and braking forces of the motors.
Softening function (innovative by HOBBYWING) for power delivery tuning and better driving efficiency.
Multiple protections: low-voltage cutoff protection, ESC and motor thermal protection, fail-safe (throttle signal loss protection), reverse polarity protection (the external standard cap pack will still be damaged if battery reversal occurs).
Data logging function to view various running data on the HW LINK app using the OTA Bluetooth module.
Firmware upgrade via Hobbywing LCD Program Box Pro or OTA Programmer (item sold separately).
Applications: 1/10 Touring car & Buggy racing, 1/10 Drift, F1, Rally
Motor Limit: Touring Car: >4.5T, Buggy: >5.5T, 3650 (540) size 2-pole motor
LiPo Cells: 2S LiPo (Only 2S)
BEC Output: 5-7.4V Adjustable, Continuous Current of 5A (Switch-mode)
Cooling Fan: Powered by the stable BEC voltage
Size: 37.7x37.0x33.2mm (w/Fan & Fan Shroud)
Weight: 94.2g (w/Wires)
Programming Port: Independent programming interface
Reverse Polarity Protection: Yes
YOU WILL RECEIVE:
(1) HOBBYWING ESCFactory Decals and Accessories
FEATURES:
9 select-to-use profiles applicable to all 1/10th RC car racing. Separate programming port to power an external fan or connect an LCD Program Box Pro or OTA Programmer to the ESC.
Variable frequency regulation of PWM and brake frequencies allows users to precisely regulate the driving and braking forces of the motors.
Softening function (innovative by HOBBYWING) for power delivery tuning and better driving efficiency.
Multiple protections: low-voltage cutoff protection, ESC and motor thermal protection, fail-safe (throttle signal loss protection), reverse polarity protection (the external standard cap pack will still be damaged if battery reversal occurs).
Data logging function to view various running data on the HW LINK app using the OTA Bluetooth module.
Firmware upgrade via Hobbywing LCD Program Box Pro or OTA Programmer (item sold separately).
SPECIFICATIONS:
Cont. /Peak Current: 150A/1000AApplications: 1/10 Touring car & Buggy racing, 1/10 Drift, F1, Rally
Motor Limit: Touring Car: >4.5T, Buggy: >5.5T, 3650 (540) size 2-pole motor
LiPo Cells: 2S LiPo (Only 2S)
BEC Output: 5-7.4V Adjustable, Continuous Current of 5A (Switch-mode)
Cooling Fan: Powered by the stable BEC voltage
Size: 37.7x37.0x33.2mm (w/Fan & Fan Shroud)
Weight: 94.2g (w/Wires)
Programming Port: Independent programming interface
Reverse Polarity Protection: Yes
Manufacturer information
Additional details
| Country of origin | China |
| Package dimensions | 4.25" × 3.00" × 2.00" 10.80 cm × 7.62 cm × 5.08 cm |
| Part numbers | HWI30112800 088718508766 |
| Shipping weight | 5.60 ounces 158.76 grams 0.35 pounds |
