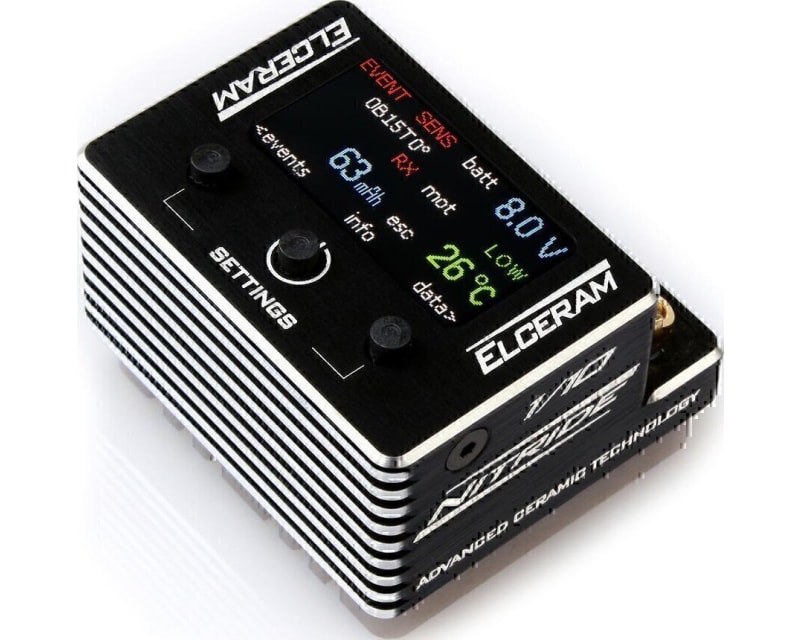

G2 Nitride 1/10 brushless Esc W/Color Lcd Display

Modified Racing Color Screen 1/10 brushless ESC
The Elceram G2 Nitride 1/10 brushless ESC represents the next era in electronic speed controller design, combining cutting-edge technology, advanced materials, and intelligent functionality for serious RC racers. Built with an Aluminum Nitride Ceramic cooler, it delivers exceptional heat dissipation, ensuring consistent performance under extreme loads. The ESC integrates a high-resolution TFT LCD color display, giving users total control and visibility without the need for additional programming cards or apps. Designed for precision, reliability, and ease of use, the Nitride G2 sets the benchmark in performance electronics for 1/10-scale RC vehicles.
About the G2 Nitride ESC
Advanced Cooling Technology
The G2 Nitride ESC uses Elcerams proprietary Aluminum Nitride cooling system, designed for maximum thermal conductivity and long-term resistance to high temperatures. Its MOSFET transistors are cooled directly without any intermediary layers, providing superior efficiency and durability. Constructed using thick layers of copper and silver for low resistance, the ESC remains cool and consistent, even with high-power motors from 4.5T up. For additional temperature control, the G2 features aluminum fins and an Intelligent Fan connector for specialized conditions.
Integrated Display and Simple Operation
At the heart of the G2 Nitride ESC is a built-in TFT matte-surface LCD display, allowing users to monitor, configure, and fine-tune settings directly on the unitno external interface or computer needed. With a resolution of 160x80 pixels and three easy-access buttons, racers can quickly adjust throttle, brake, boost, and turbo timing or review real-time diagnostics. This simple yet powerful design enables quick pre-race checks, mid-race monitoring, and post-race analysis with immediate feedback.
Intelligent Monitoring and Protection
The G2 Nitride ESC features real-time data tracking, intelligent protection algorithms, and Revolutionary discharge monitoring to ensure safe, optimal operation. The system continuously monitors battery voltage, ESC and motor temperatures, motor diagnostics, and other key parameters to prevent damage from overloads or mechanical issues. With pre-race diagnostics, adjustable maintenance reminders, and reverse polarity protection, the G2 ensures dependable performance and long-term reliability in any racing environment.
Advanced Aluminum Nitride cooling technology
Integrated TFT matte color LCD display
Three-button simple setup and programming
Real-time ESC, motor, and battery monitoring
Intelligent algorithms for system protection
Reverse polarity protection
Compact, light weight design for all 1/10 applications
Pre-race and post-race diagnostic tools
Adjustable BEC voltage output (6.07.4V)
Zero timing (blinky mode) supported
(1) G2 Nitride 1/10 brushless ESC
(1) Aluminum Mounting Plate
(1) Set of External Capacitors
Connection Cables
Instruction Manual
Suggested Application 1/10
Motor Type brushless - Sensored
Input Voltage 2S LiPo (7.4V)
Continuous Current 180A
Burst Current 1500A
Dimensions (LxWxH) 1.34x1.44x0.95in (34x36.5x24mm)
Weight 2.08oz (59g)
Motor Limits 4.5T
BEC Voltage 6.0-7.4V (Adjustable)
BEC Continuous Current 6A
BEC Peak Current 12A
Motor Connector Solder Type
Battery Connector Solder Type
