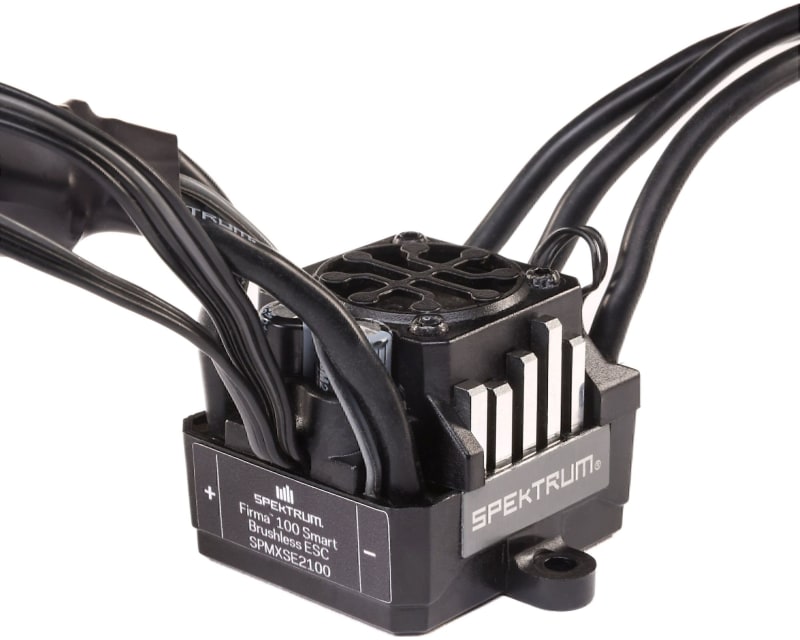

Firma 100 Black Edition brushless Smart Esc 2s-3s
Made by Spektrum · SPMXSE2100
Sale
-26%
$124.99
List price: $169.74
One left
Parts lists
Log in to add this part to a parts list to start planning your next project!
Description
Like every component in the Spektrum Smart ecosystem, Firma Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics - together, creating the best-performing RC system for your vehicle imaginable.
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Firma Smart ESCs, you'll be better connected to your vehicle than ever before - without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.
Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
Application - Surface
Auto Cutoff - Yes
Battery Input Lead - IC5
Battery Type - LiPo (3.7V per cell)
BEC - Yes
BEC Continous Current - 4
BEC Voltage - 6V and 7.4V selectable
Brakes - Yes
Connector Type - IC5
Drive Type - Forward/Brake/Reverse
ESC Type - brushless
Forward - Yes
Input Voltage - 6.0V - 9.6V (2-4S LiPo, 5-9 cell NiMh )
Low-Voltage Cutoff Programmable - Yes
Max Input Voltage - 11.1V
Maximum Burst Current - 650A
Maximum Continuous Current - 100A
Motor Output Lead - 4mm
Motor Type - brushless
Output - 100A
Output Connector - 4mm Bullet
Overload Protection - Yes
Product Application - Surface
Product Height - 1.33" (34 mm)
Product Length - 1.7" (43 mm)
Product Width - 1.53" (39 mm)
Programmable - Yes
Programming Options - Button, Programming Box, Smartlink App, On Screen Text Gen
Reverse - Yes
Sensored - No
Technology - Smart
Time Delay Brake - Yes
Water-Resistant - Yes
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Firma Smart ESCs, you'll be better connected to your vehicle than ever before - without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.
Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
SPECIFICATIONS:
Amperage - 100AApplication - Surface
Auto Cutoff - Yes
Battery Input Lead - IC5
Battery Type - LiPo (3.7V per cell)
BEC - Yes
BEC Continous Current - 4
BEC Voltage - 6V and 7.4V selectable
Brakes - Yes
Connector Type - IC5
Drive Type - Forward/Brake/Reverse
ESC Type - brushless
Forward - Yes
Input Voltage - 6.0V - 9.6V (2-4S LiPo, 5-9 cell NiMh )
Low-Voltage Cutoff Programmable - Yes
Max Input Voltage - 11.1V
Maximum Burst Current - 650A
Maximum Continuous Current - 100A
Motor Output Lead - 4mm
Motor Type - brushless
Output - 100A
Output Connector - 4mm Bullet
Overload Protection - Yes
Product Application - Surface
Product Height - 1.33" (34 mm)
Product Length - 1.7" (43 mm)
Product Width - 1.53" (39 mm)
Programmable - Yes
Programming Options - Button, Programming Box, Smartlink App, On Screen Text Gen
Reverse - Yes
Sensored - No
Technology - Smart
Time Delay Brake - Yes
Water-Resistant - Yes
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Additional details
| Country of origin | China |
| Package dimensions | 5.50" × 4.00" × 2.25" 13.97 cm × 10.16 cm × 5.72 cm |
| Part numbers | SPMXSE2100 605482181478 |
| Shipping weight | 11.23 ounces 318.42 grams 0.70 pounds |
