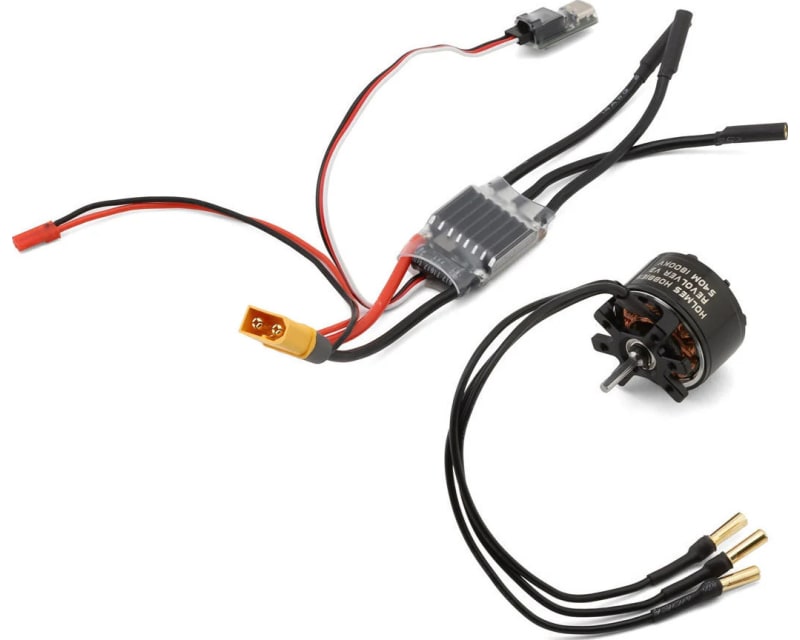

Crawlmaster V3 Sensored brushless ESC Combo w/Revolver V3 540M

2s to 4s LiPo, the perfect Kv for crawling, ultra smooth, ultra torque, ultra light! Combine the 32 bit Crawlmaster ESC with the 540M Revolver motor and you have a match made for performance. Only 145 grams for the entire combo, with a generous length of wire!
.
RECOMMENDED USE:
.
1/10th and smaller Single speed Trail, Scale, and Rock Crawlers such as TRX4 Sport, SCX10, Element Enduro, Vanquish VRD VS4-10 etc. .
Recommended 8lb limit, subject to gearing, driving style, terrain, etc. (volt up, gear down!)
NOT recommended for two speed vehicles, rock racers, tow rigs, and other high load installations
.
CrawlMaster Mini v3 Rock Crawler ESC
.
The CrawlMaster Mini ESC is designed for the needs of RC Rock Crawlers! It harnesses the power of 32 bit technology to offer the smooth, quiet, and torque dense driving you desire in an extra small package. The ESC is ready to go, no soldering or programming needed. It is conformal coated for water resistance, but we recommend extra coating with CowRC's Cow-Formal if you plan to submarine the ESC.
32 bit processing power unlocks advanced algorithms and future upgrades
Exclusive Sinewave Startup (like FOC) but open system and compatible with all motors
Silent operation with most motors, inaudible switching frequency
Intelligent RPM lock at low speed for unmatched control when it matters most
Regular throttle above low speed operation for torque control and less broken parts at speed
No on/off switch to fail. Plug it in and go!
Temperature and and throttle loss protection
Ultra smooth throttle and strong drag brake for crawling
2 to 4s LiPo (20v max)
"40amp" package, 25 amp continuous
size 39x26x11mm board with heat sink
39 grams fully built
3 amp 7.4v internal BEC
xt60 battery plug
jst aux power plug (direct power servo, lights, winch, etc. .. )
4mm motor plugs
Conformal coating for water resistance
USB programmer included
.
Revolver 540M 1800KV
1800Kv
106 grams light with wires and 4mm bullets
1/8" D shaft output (standard 540)
Chrome plated magnets
v3 ultralight housing
precision magnet retention assembly
35.56 diam. X 31mm long
28x16mm 14 pole stator
Holmes magnetics and housing design
2-4S LiPo power input
.
The 540M made its debut in the Team Spec lineup and was a hit! It has been very popular for the Vanquish VRD using the Stubby VFD conversion. It is the perfect combination of small but not too small! 100% Holmes engineered for competitive crawling rigs and scale/trail rigs that need a smaller, lighter, higher performance motor.
.
To prevent motor damage, be sure that screws are not inserted more than 3mm into the mounting holes.
