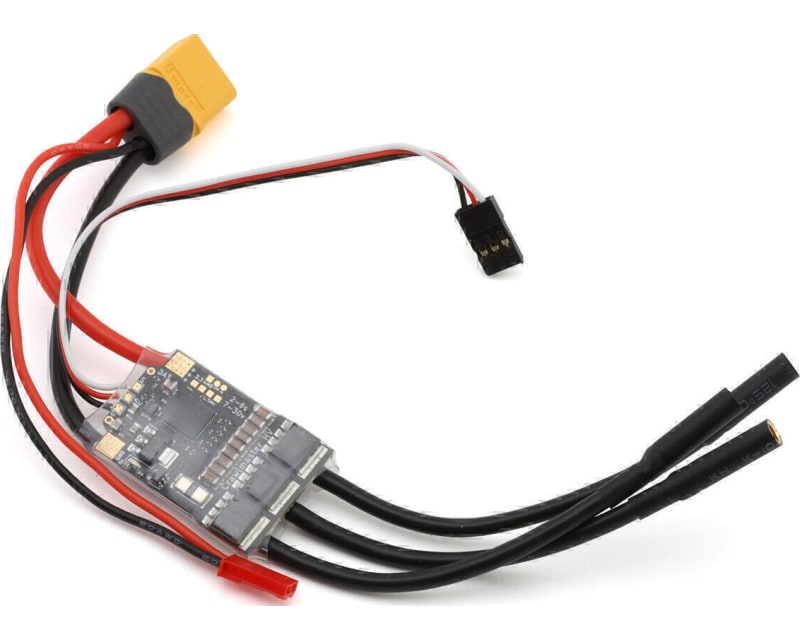

CrawlMaster HV 1/10 Rock Crawler Sensorless brushless ESC (2-6S)
Made by Holmes Hobbies · HHB210100025
Sale
-31%
$109.99
List price: $158.38
2 in stock
Parts lists
Log in to add this part to a parts list to start planning your next project!
Description
The CrawlMaster HV is a new ESC designed for the needs of RC Rock Crawlers! The HV design offers larger mosfets for stable use on 4s with higher KV motors, as well as 6s cabablity for 1000kv motors. It harnesses the power of 32 bit technology to offer the smooth, quiet, and torque dense driving you desire in an extra small package!
These are NOT WATERPROOFED. We recommend coating with silicon conformal if you plan to run in wet, moist, or dusty environments.
RECOMMENDED USE:
1/10th and smaller Single speed Trail, Scale, and Rock Crawlers such as TRX4 Sport, SCX10, Element Enduro, etc. .
Recommended 8lb limit, subject to gearing, driving style, terrain, etc.
NOT recommended for two speed vehicles, rock racers, tow rigs, and other high load installations.
RECOMMENDED MOTORS:
Crawlmaster BL 540 Stubby 1800-3000kv max 4 cell
Revolver 2500kv 10 pole max 4 cell
Revolver 1400-2200kv 14 pole max 4 cell
Revolver 1000kv 14 pole max 6 cell
Revolver 2500kv 14 pole max 3 cell
Revolver 540L Classic 1450-1950kv max 3 cell. 1950Kv will need sine power lowered to 5 using serial programmer.
Exclusive Sinewave Startup (like FOC) but open system and compatible with all motors
Silent operation with most motors, inaudible switching frequency
Intelligent RPM lock at low speed for unmatched control when it matters most
Normal "PWM" throttle above startup for predictable power output and less broken parts
No on/off switch to fail. Plug it in and go!
Overcurrent, temperature, stalled rotor, and throttle loss protection
Automatic cell detection and low voltage protection for LiPo battery
Ultra smooth throttle and strongest drag brake out of the box
5 volt 2.5 amp internal BEC
"120 amp" package, 40a continuous operation
Weight: 32g assembled
100mm (approximate) motor leads
100mm (approximate) XT60 battery lead with integrated JST connection
125mm Rx lead
These are NOT WATERPROOFED. We recommend coating with silicon conformal if you plan to run in wet, moist, or dusty environments.
RECOMMENDED USE:
1/10th and smaller Single speed Trail, Scale, and Rock Crawlers such as TRX4 Sport, SCX10, Element Enduro, etc. .
Recommended 8lb limit, subject to gearing, driving style, terrain, etc.
NOT recommended for two speed vehicles, rock racers, tow rigs, and other high load installations.
RECOMMENDED MOTORS:
Crawlmaster BL 540 Stubby 1800-3000kv max 4 cell
Revolver 2500kv 10 pole max 4 cell
Revolver 1400-2200kv 14 pole max 4 cell
Revolver 1000kv 14 pole max 6 cell
Revolver 2500kv 14 pole max 3 cell
Revolver 540L Classic 1450-1950kv max 3 cell. 1950Kv will need sine power lowered to 5 using serial programmer.
FEATURES:
32 bit processing power unlocks advanced control algorithms and future upgradesExclusive Sinewave Startup (like FOC) but open system and compatible with all motors
Silent operation with most motors, inaudible switching frequency
Intelligent RPM lock at low speed for unmatched control when it matters most
Normal "PWM" throttle above startup for predictable power output and less broken parts
No on/off switch to fail. Plug it in and go!
Overcurrent, temperature, stalled rotor, and throttle loss protection
Automatic cell detection and low voltage protection for LiPo battery
Ultra smooth throttle and strongest drag brake out of the box
5 volt 2.5 amp internal BEC
SPECIFICATIONS:
2 to 6s LiPo (30v max)"120 amp" package, 40a continuous operation
DIMENSIONS:
38 x 27 x 4.6 mm (PCB board)Weight: 32g assembled
YOU WILL RECEIVE:
Complete ESC100mm (approximate) motor leads
100mm (approximate) XT60 battery lead with integrated JST connection
125mm Rx lead
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles
Additional details
| Country of origin | United States |
| Package dimensions | 6.25" × 4.50" × 0.50" 15.88 cm × 11.43 cm × 1.27 cm |
| Part numbers | 210100025 HHB210100025 |
| Shipping weight | 1.40 ounces 39.69 grams 0.09 pounds |
