Description

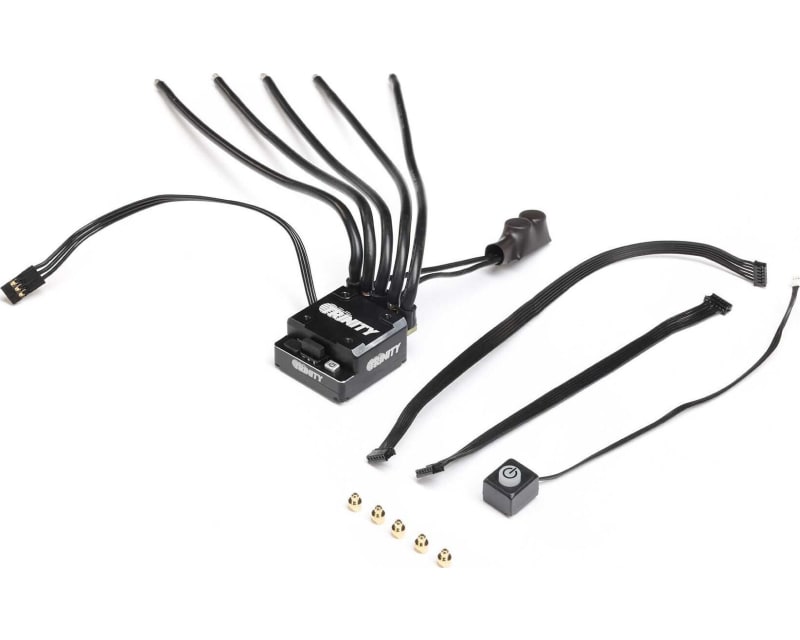

The Trinity MX10 Spec/Blinky ESC has been designed for the most competitive 1/10 scale stock and mod racers. The MX10 offers a 100-amp constant power rate and a 500-amp burst rate. All this power comes in a sleek black machined aluminum case designed for maximum heat dissipation. This ESC also features a 32-bit microprocessor for more powerful processing capability and more precise power output. Each ESC comes with our updated high strand count, high flex 13-gauge wire, fan, and capacitor bank. A shortened receiver connector wire comes standard to make sure your wiring looks clean. The MX10 Spec/Blinky ESC can be programmed by the Trinity LCD ESC Program Box or the Trinity OTA Programming Module to take your driving to the next level.
Adjustable TimingYes
Application - 1/10 Vehicle
Auto Cutoff - Yes
BEC - Yes
BEC Type - Adjustable
BEC Voltage - 5.0v / 7.4v
Input Voltage - 2S LiPo
LiPo Compatibility - 2S
Low-Voltage Cutoff Programmable - Yes
Maximum Burst Current - 500A
Maximum Continuous Current - 100A
Motor Limit - 2-Pole 10.5T
Motor Type - brushless
Output - 5V - 7.4V Adjustable
Overload Protection - Yes
Product Height - 1.19" (30 mm)
Product Length - 1.38" (35 mm)
Product Weight - 93g (3.28 oz)
Product Width - 1.32" (34 mm)
Programmable - Yes
Reverse - Yes
Sensored - Yes
Wire Gauge - 13 AWG
Adjustable TimingYes
Application - 1/10 Vehicle
Auto Cutoff - Yes
BEC - Yes
BEC Type - Adjustable
BEC Voltage - 5.0v / 7.4v
Input Voltage - 2S LiPo
LiPo Compatibility - 2S
Low-Voltage Cutoff Programmable - Yes
Maximum Burst Current - 500A
Maximum Continuous Current - 100A
Motor Limit - 2-Pole 10.5T
Motor Type - brushless
Output - 5V - 7.4V Adjustable
Overload Protection - Yes
Product Height - 1.19" (30 mm)
Product Length - 1.38" (35 mm)
Product Weight - 93g (3.28 oz)
Product Width - 1.32" (34 mm)
Programmable - Yes
Reverse - Yes
Sensored - Yes
Wire Gauge - 13 AWG
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Related parts
Additional details
| Country of origin | China |
| Package dimensions | 5.00" × 3.50" × 2.00" 12.70 cm × 8.89 cm × 5.08 cm |
| Part numbers | TRI-1081 660132949761 TRI1081 |
| Shipping weight | 5.50 ounces 155.92 grams 0.34 pounds |
