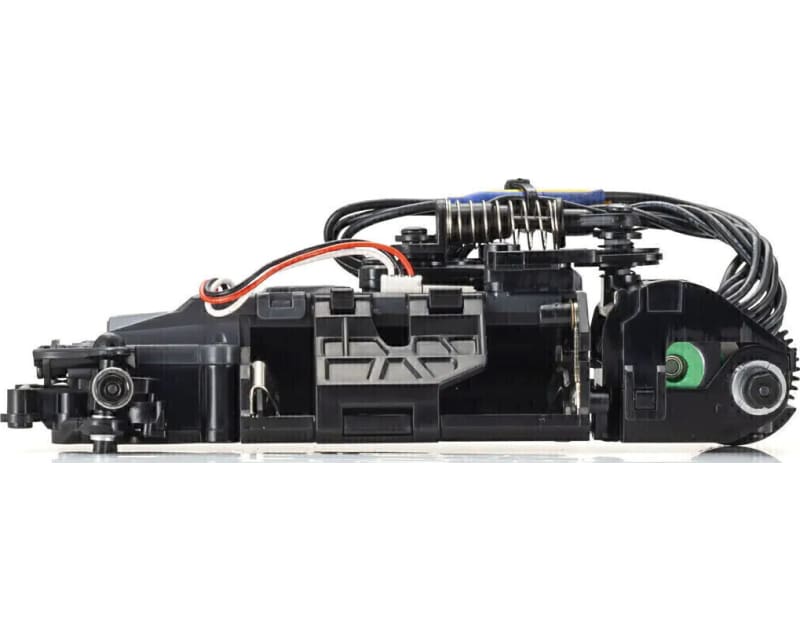

MINI-Z MR-04EVO2 Chassis Set with V2 Gyro

High-Performance Mini-Z Roller with Advanced The MR-04 EVO2 Mini-Z W-MM Brushless Chassis Set by Kyosho represents a higher stage in Mini-Z racing technology. Built on the proven MR-03 platform, it features major advancements in suspension design, motor performance, and electronic control systems. With its low center of gravity, advanced gyro unit, and precise motor RPM tuning capabilities, this chassis is engineered for racers who demand both speed and stability. Every detail of the MR-04 EVO2 is designed to deliver competitive performance while enhancing the driving experience.
About the MR-04 EVO2 Mini-Z Chassis Set
Advanced Suspension Design
The MR-04 EVO2 introduces a redesigned front suspension system that significantly improves handling precision and consistency. Its integrated kingpin knuckle reduces play and enhances camber stability, ensuring that the chassis maintains optimal tire contact through every corner. A revised caster and trail geometry delivers more linear steering response, allowing drivers to predict and control movements with greater accuracy. Combined with smoother suspension operation and lower rotational resistance from updated ball bearings, this design helps the EVO2 stay composed at high speeds while offering racers a confident and responsive driving feel.
High-Precision Gyro & RC Unit
A major leap forward is the inclusion of the upgraded gyro unit with a dedicated CPU for ultra-fast response and accuracy. This next-generation system eliminates the performance issues of older gyros, delivering unmatched stability and sharper cornering. Additionally, an updated MR-04 EVO2 RC Unit enables motor RPM control for precise tuning while maintaining compliance with 2025 Mini-Z Cup regulations.

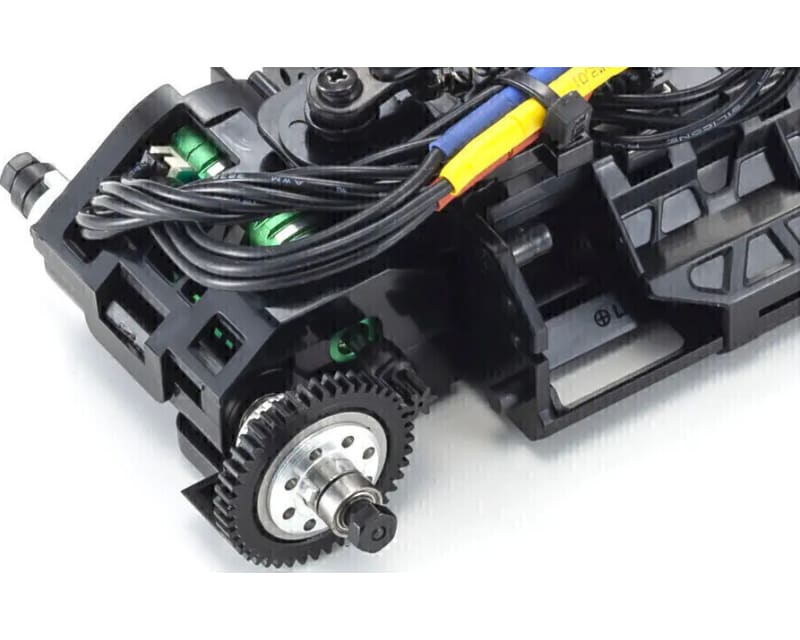

Optimized Chassis & Drive System
The MR-04 EVO2 achieves a lower center of gravity by mounting the batteries closer to the chassis base, resulting in greater stability and smoother cornering at higher speeds. This design works in harmony with the sensored brushless motor to deliver efficient power and precise throttle response. A ball differential is included as standard, providing improved traction and balanced handling by optimizing rotational differences between the rear wheels during turns. Together, these refinements ensure the EVO2 performs with both speed and control, making it a formidable choice for competitive racing.
Dedicated CPU in gyro for ultra-fast processing
Maintains turning performance even at higher gyro gain
Anodized aluminum parts for style and durability
Lower battery mounting for improved center of gravity
Compatible with I. C. S. Setting Manager for easy tuning
Optimized chassis shape for improved stability
Smooth operation from reduced kingpin clearance
Improved rotational efficiency with updated bearing design
Enhanced synergy between motor performance and chassis balance
(1) MR-04 EVO2 Mini-Z W-MM Brushless Chassis Set
(1) Kyosho Speed House Brushless Motor (4100kV)
(1) V2.0 Gyro
(1) Front Tread Adjustment Parts Set
(4) Pinion Gears (6T, 7T, 8T, 9T)
(1) Pinion Gear Tool
(1) Wheel Wrench
(1) Spare Wheel Nuts Set
Product Manual
Needed To Complete:
(1) 2-Channel Transmitter & Receiver
(4) AAA Batteries for Chassis
(1) Body
(4) Wheels
(4) Tires
Scale Mini-Z
Drive RWD
Length 4.9in (124.5mm)
Wheelbase 3.8in (98mm) LL
Width 2.83-2.99in (72-76mm)
Height 1.22in (31mm)
Weight Varies
Assembly Level Kit
