Firma 3530 2200KV 14P Outrunner BL Motors: 3.175MM
Made by Spektrum · SPMXSM7100
Original price: $129.00 · Sale: $94.99
Log in to add this part to a parts list to start planning your next project!
Description

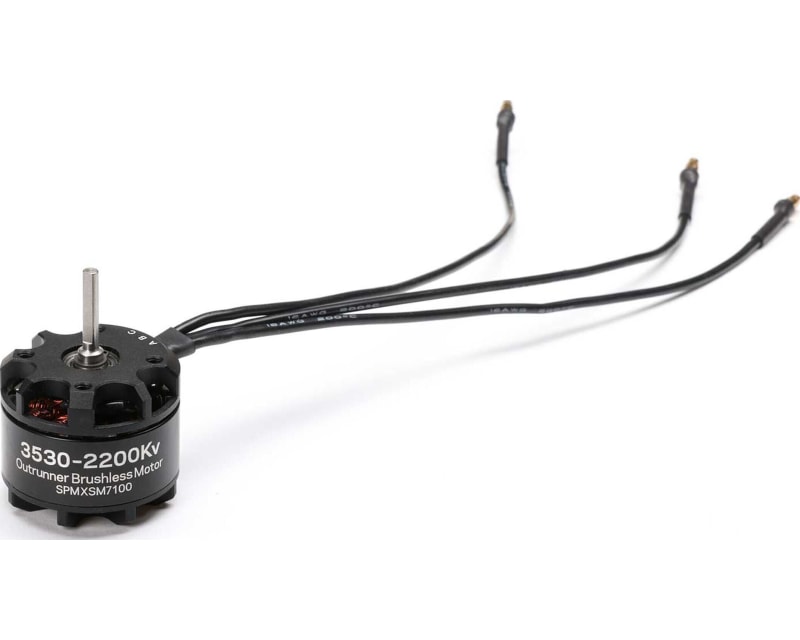

Spektrum Firma 12-Pole Outrunner brushless Motor
3.5mm Bullet
Connector Wire Length
8.07" (205 mm)
LiPo Compatibility
2S, 3S
Motor Type
brushless
Number of Poles
12
Outer Diameter
1.37" (35 mm)
Product Length
1.18" (30 mm)
Product Weight
100g
RPM/Volt (Kv)
2200Kv
Shaft Diameter
0.12" (3 mm)
Shaft Length
0.7" (18 mm)
Voltage
7.4v - 11.1v
OVERVIEW:
The Spektrum Firma 3530 2200Kv brushless Motor is a great choice for 1/10 rock crawler models running on 2-3S LiPo power. This motor features a 12-pole rotor design, CNC machined aluminum housing, insulated high purity copper windings, and high-quality alum steel 3.175mm (1/8 in. ) output shaft for durability and smooth rotation. The motor includes preinstalled 3.5mm gold-plated bullet connectors for easy installation. SPECIFICATIONS:
Connector Type3.5mm Bullet
Connector Wire Length
8.07" (205 mm)
LiPo Compatibility
2S, 3S
Motor Type
brushless
Number of Poles
12
Outer Diameter
1.37" (35 mm)
Product Length
1.18" (30 mm)
Product Weight
100g
RPM/Volt (Kv)
2200Kv
Shaft Diameter
0.12" (3 mm)
Shaft Length
0.7" (18 mm)
Voltage
7.4v - 11.1v
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles (35)
Additional details
| Country of origin | China |
| Package dimensions | 4.50" × 3.00" × 1.85" 11.43 cm × 7.62 cm × 4.70 cm |
| Part numbers | SPMXSM7100 660132888145 |
| Shipping weight | 5.30 ounces 150.25 grams 0.33 pounds |
