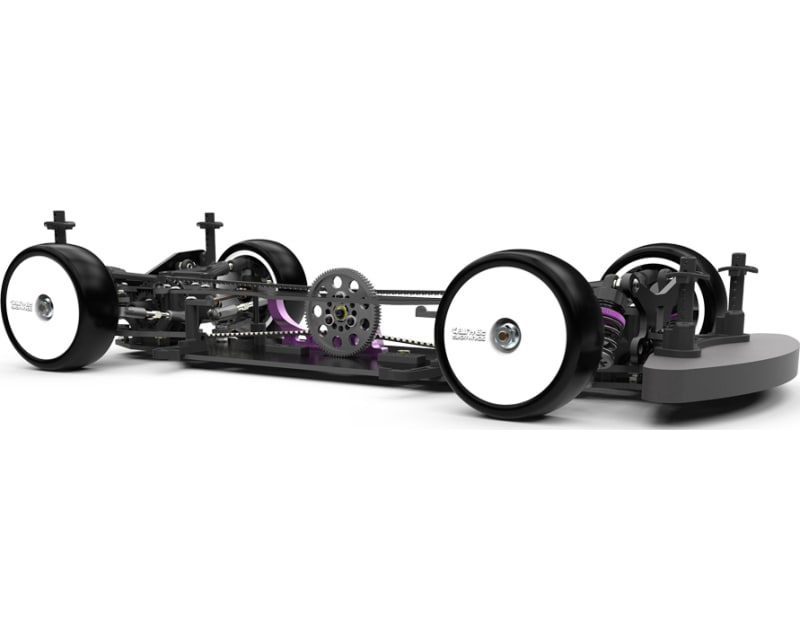

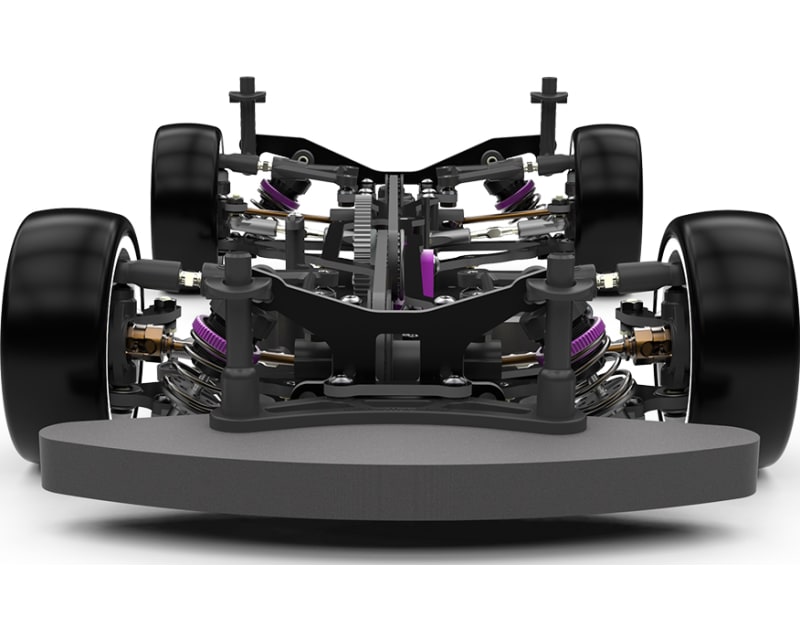

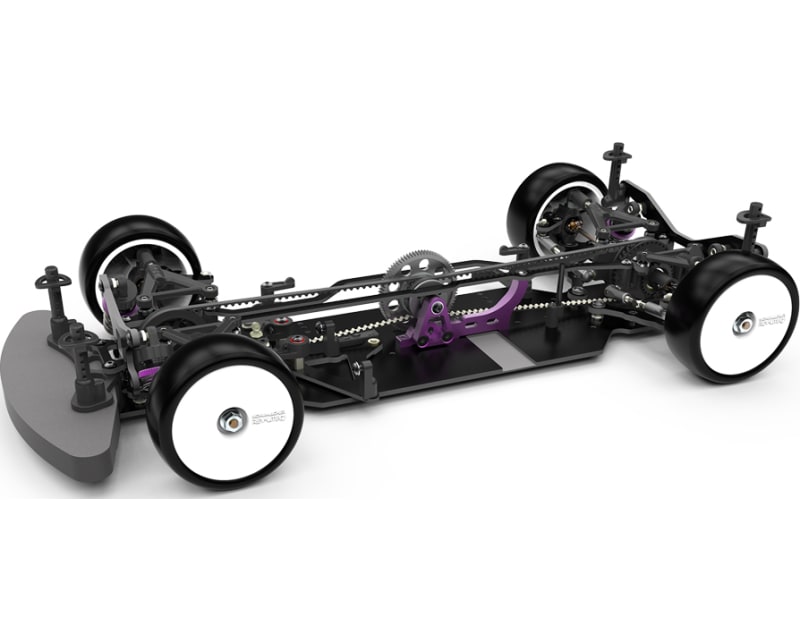

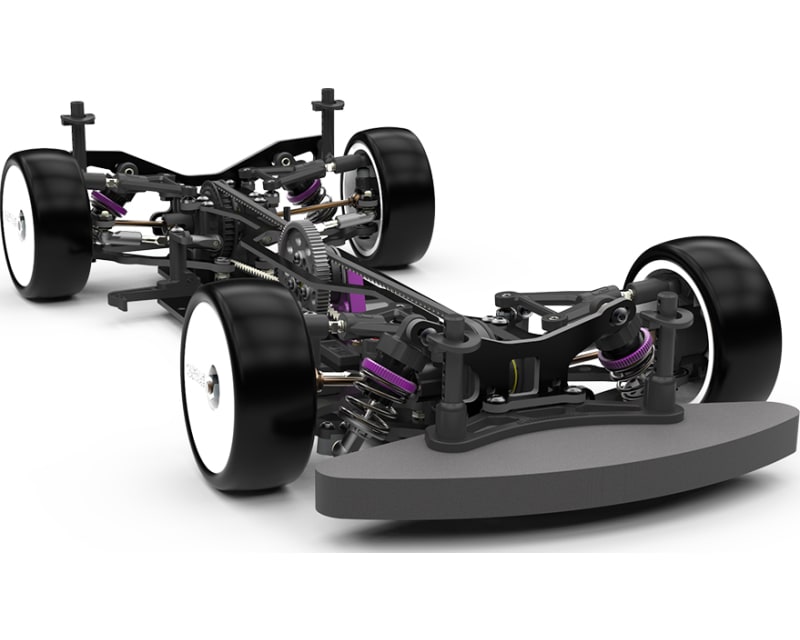

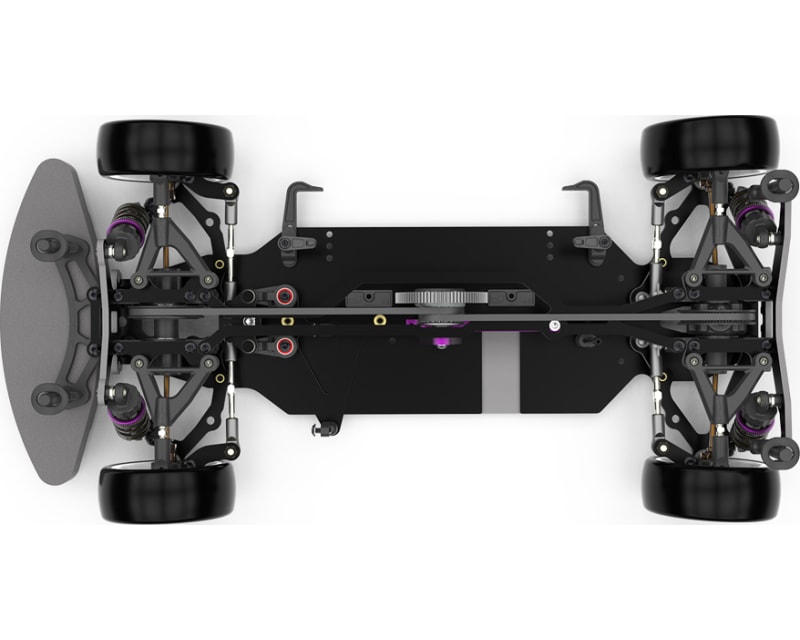

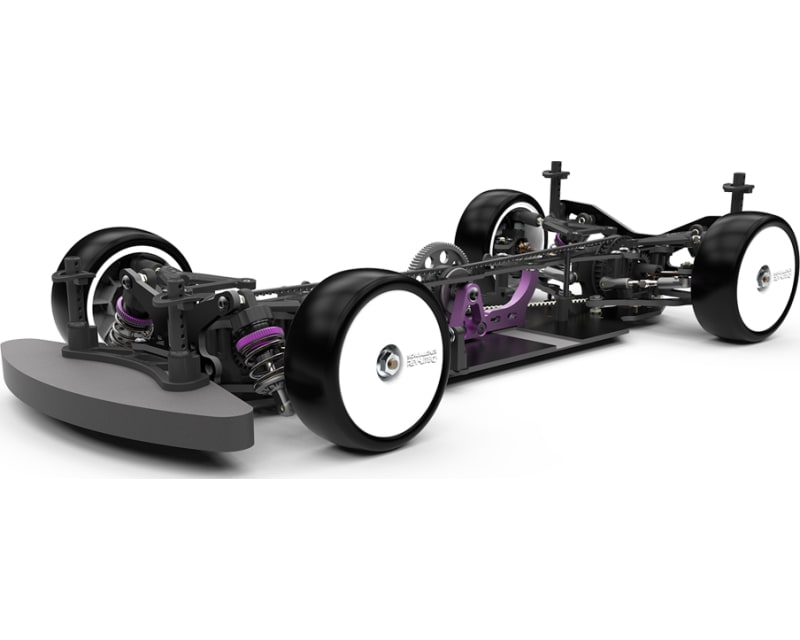

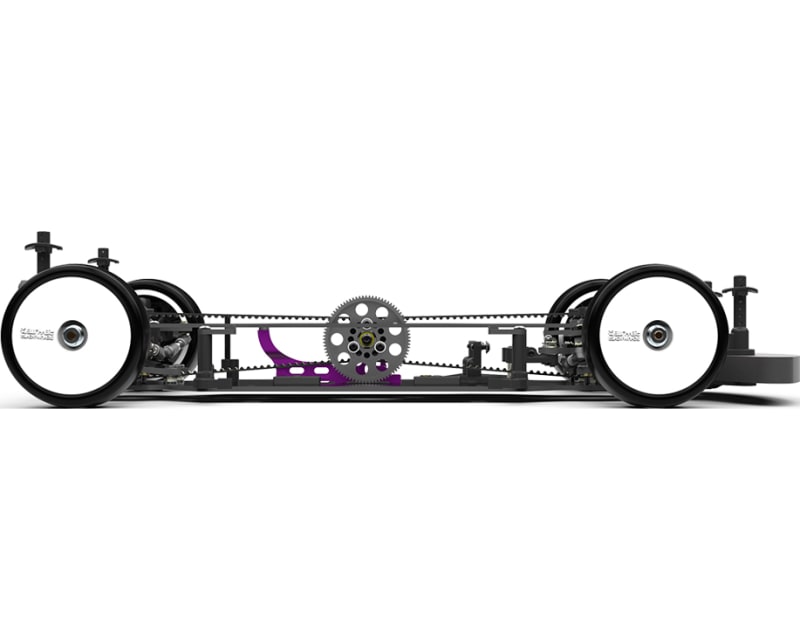

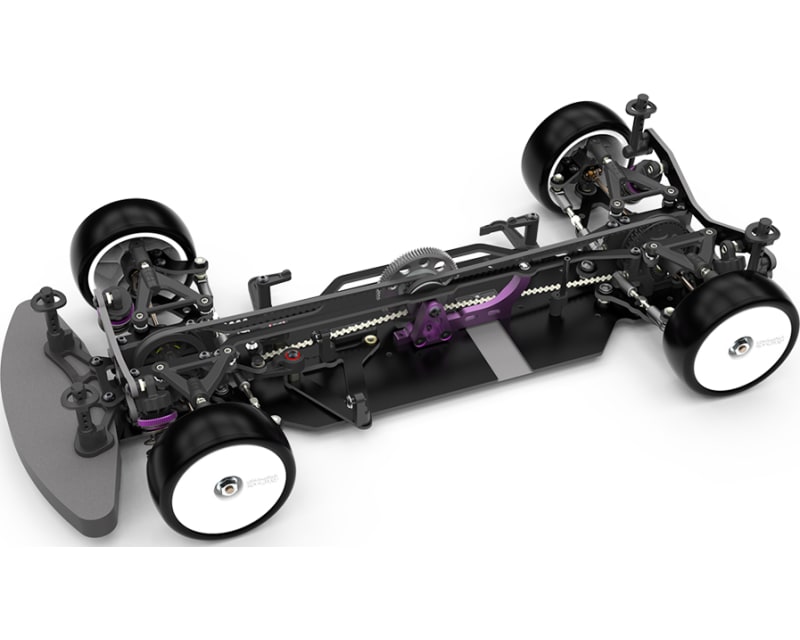

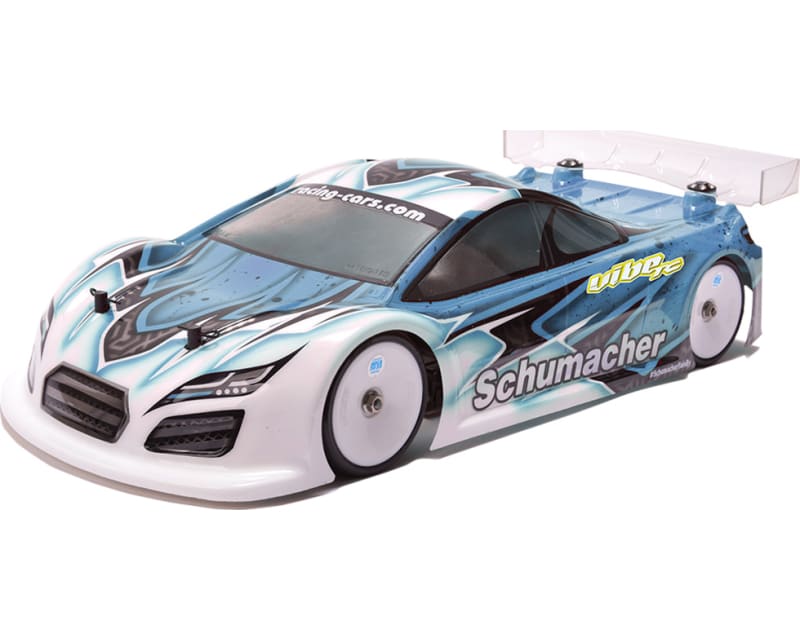

Vibe Tc 4WD - Kit

he Vibe TC is a competitive 1/10th scale 4WD touring racing chassis aimed at the club racer. Its modern design includes all the features and set up adjustments of high end racers, in an affordable package.

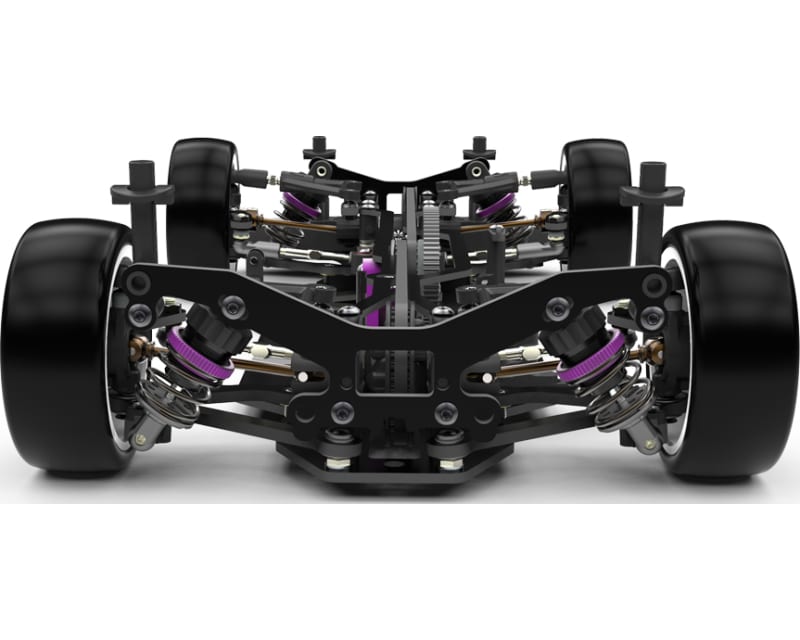

The Vibe TC is durable and simple to maintain. alum shocks with purple anodised adjusters, UJ driveshafts, purple alum transmission and layshaft mounts feature as standard equipment in the kit. Strong and flexible S2 chassis and top deck makes the Vibe TC easy to drive, and tuneable for whatever track you decide to race on.
Double wishbone suspension design. Refined over countless hours by our team drivers and in-house development engineers to provide maximum performance across all track conditions.
Upper and Lower wishbones. light weight and stiff.
Upper adjustable wishbone for fine camber adjustment.
light weight front spool assembly with replaceable light weight outputs.
Proven gear differential with steel outputs. Reliability assured.
Moulded transmission housing. light weight and robust.
Double Joint Front Driveshaft. Utilising our proven joint design for great durability.
Rear Driveshaft. Ultra hard wearing Steel.
Short shocks. Featuring alum bodies, machined pistons, low friction shafts, and light weight moulded upper socket.
Steering Arms for optimal Ackermann setting.
Layshaft assembly. light weight and durable.
light weight motor mount design with optional top deck stiffener screw.
light weight moulded wheel hexes.
Floating Servo Mount. Low centre of gravity design that does not impact on chassis flex.
Lower shock mount. Simple and light weight .
Twist free front and rear shock mount designs.
Diff/Spool eccentrics for easy belt tension adjustment, with the ability to change the diff/spool height.
Vertical or rear facing body posts to suit user preference for bodyshell mounting.
Adjustable battery mounting in front-rear and left-right directions. Balance the car to suit any condition.
High quality Bando 117T belts. Flexible, efficient and durable drivetrain.
Fixed geometry, twin point steering assembly offers simple yet effective precision steering.
Hub carrier design provides precise wheel control and performance.
Optional Anti-roll bars.
Rear track rods for infinite adjustment of rear toe-in. This can be tuned for the use of passive rear steering / toe-in change.
Arrowmax 48dp 81T Spur Gear included in the kit.
Fully ball-raced transmission.
Equipment Needed
2 Channel Radio
Motor
Servo (Low Profile)
Electric Speed Control
Wheels & Tyres
2S LiPo Battery, stick or shorty
Bodyshell
Motor Pinion - 48dp
Vibe TC Specification
Power Source: ELECTRIC
Model Type: 4WD, ON-ROAD, COMPETITION
length: 300mm
width: 185mm
Top Speed:
40 MPH +
