Description

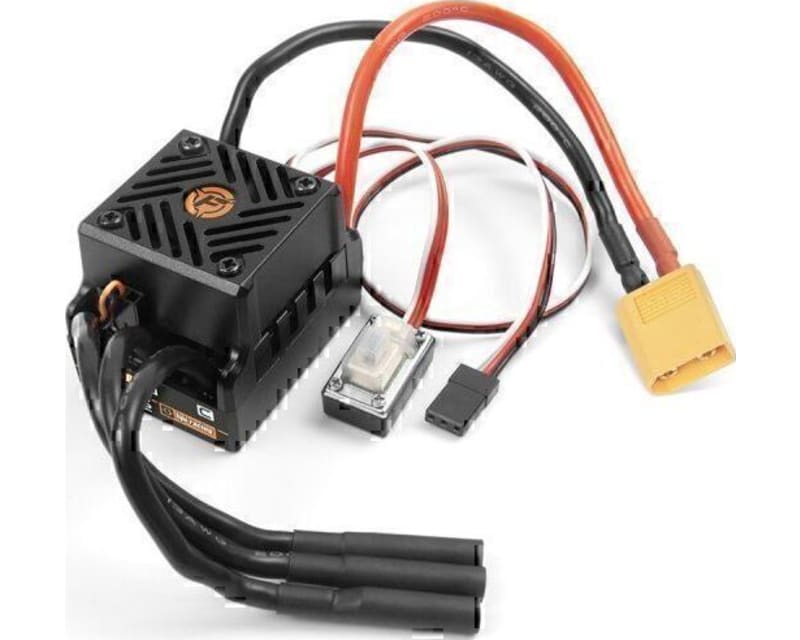

The FLX10-3S802 Flux ESC is the perfect match for the FLX10-3660-3700KV 1/10th scale brushless motor - it's able to pump up to 80 amps of power to the motor for amazing stunts, colossal top speeds, and wheel-spinning sideways action!
Complete waterproof protection means you can take your truck equipped with the FLX10-3S802 ESC into territory that would scare off other drivers: puddles, mud, and more! A large fan sits on top of the case inside a protective cover to keep things cool when the weather's warm and you've been driving hard.
Can be programmed using the Hobbywing LED Program Card
The FLX10-3S802 ESC & FLX10-3660-3700KV Motor requires very powerful batteries to get the most out of them - please make sure that you use the right combination! HPI highly recommend the use of high-quality LiPo batteries. Using batteries with low ratings, or the use of lower quality LiPo batteries, may cause damage to your batteries and/or speed control. Using batteries below the specified ratings may void the warranty of the speed controller and/or batteries.
Technical
Continuous Current: 80A
Motor Limit: 2S LiPo <6000KV, 3S <3700KV
BEC: 6V Switching BEC, 3A Continuous Current
Battery Connector: XT60
Motor Connector: 4.0mm Bullet
Application: 1/10th
Overheat Protection
Low Voltage Protection
Complete waterproof protection means you can take your truck equipped with the FLX10-3S802 ESC into territory that would scare off other drivers: puddles, mud, and more! A large fan sits on top of the case inside a protective cover to keep things cool when the weather's warm and you've been driving hard.
Can be programmed using the Hobbywing LED Program Card
The FLX10-3S802 ESC & FLX10-3660-3700KV Motor requires very powerful batteries to get the most out of them - please make sure that you use the right combination! HPI highly recommend the use of high-quality LiPo batteries. Using batteries with low ratings, or the use of lower quality LiPo batteries, may cause damage to your batteries and/or speed control. Using batteries below the specified ratings may void the warranty of the speed controller and/or batteries.
NOTE:
Before driving in wet conditions, make sure that other electronics fitted to the vehicle are safe to use (marked as water-resistant or waterproof), or that they are fully enclosed and protected from water and moisture (such as in a sealed receiver/battery case). Fans mounted on speed controllers are not water resistant - they recommend disconnecting the fan from the ESC before driving in wet conditions and allowing it to dry fully before reconnecting the fan power. Lubricate exposed metal drivetrain parts such as bearings, outdrives and diff shafts before driving in wet conditions. Motors are not intended for submerged use and may be damaged if used when underwater. After driving in wet conditions, make sure to rinse off dirt and any corrosive liquids like saltwater with plain water and re-lubricate metal drivetrain parts. Technical
SPECIFICATIONS:
Input Voltage: 2-3S LiPoContinuous Current: 80A
Motor Limit: 2S LiPo <6000KV, 3S <3700KV
BEC: 6V Switching BEC, 3A Continuous Current
Battery Connector: XT60
Motor Connector: 4.0mm Bullet
DIMENSIONS:
46x36.5x35.5mmApplication: 1/10th
Overheat Protection
Low Voltage Protection
Manufacturer information
HPI Racing assumes responsibility for it products and will repair or replace any defective product at its sole discretion. HPI believes it is solely responsible for its products, therefore, Hobby Etc., Inc. will not be involved in any replacements. Please contact HPI directly.<br><br>Contact HPI Customer Service for any product related problems at 949-753-1099. HPI Customer Service hours are Monday - Friday 8:00 to 4:30 PST. The HPI website, www.hpiracing.com, has information and frequently asked questions about HPI products.
Additional details
Country of origin | China |
Package dimensions | 6.15" × 2.65" × 2.00" 15.62 cm × 6.73 cm × 5.08 cm |
Part numbers | HPI160942 5050864035484 |
Shipping weight | 4.80 ounces 136.08 grams 0.30 pounds |
