Description
DESCRIPTION:

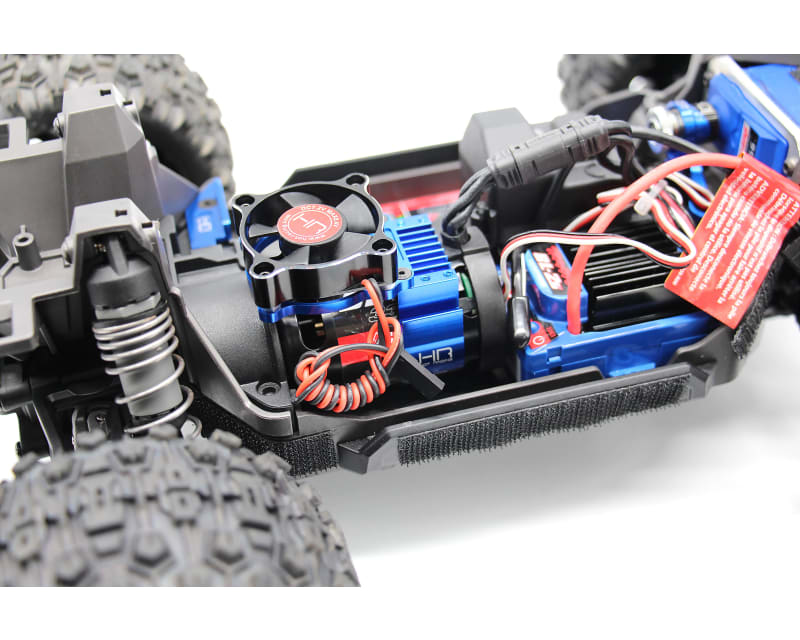

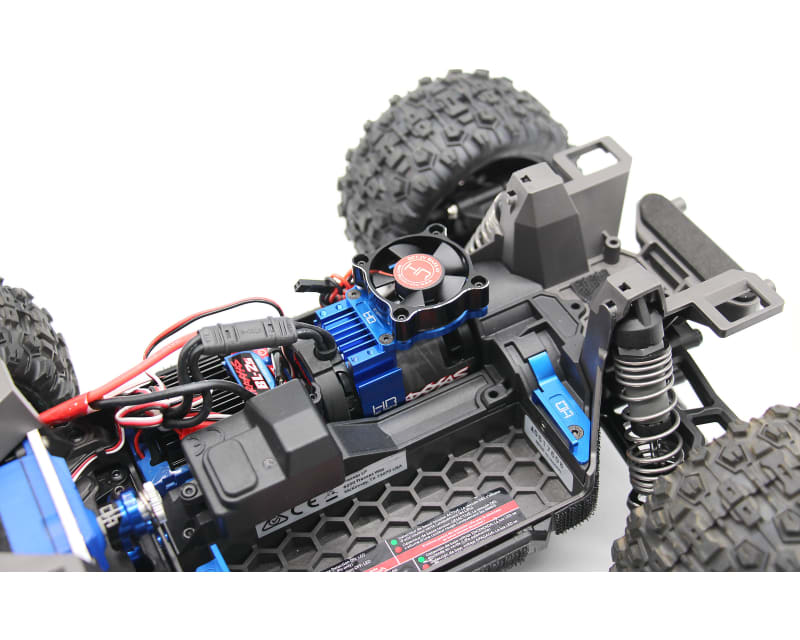

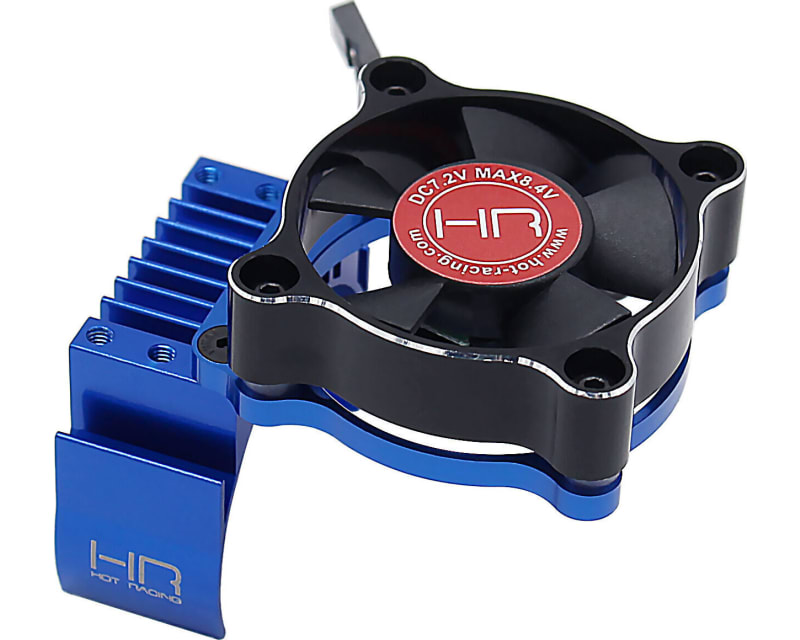

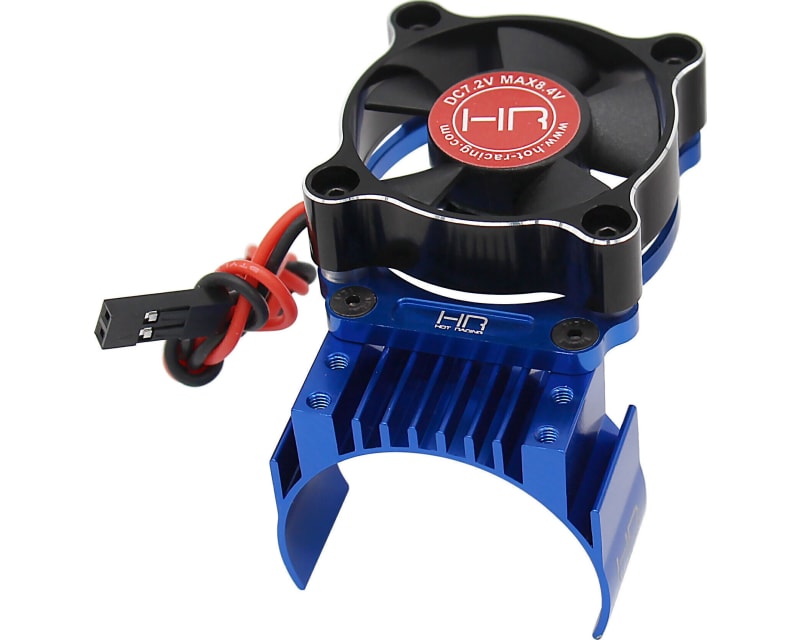

Hot Racing motor heat sink fan for use on Mini Maxx, Mini XRT or any other use a 540 or 550 motor. Fan mounted directly on top of the heat sink
FEATURES:
- Black anodized- CNC Aluminum Case
- Double Bearing
- Provides airflow to cool Emotor for improved efficiency and performance
- Two wire servo-style connector

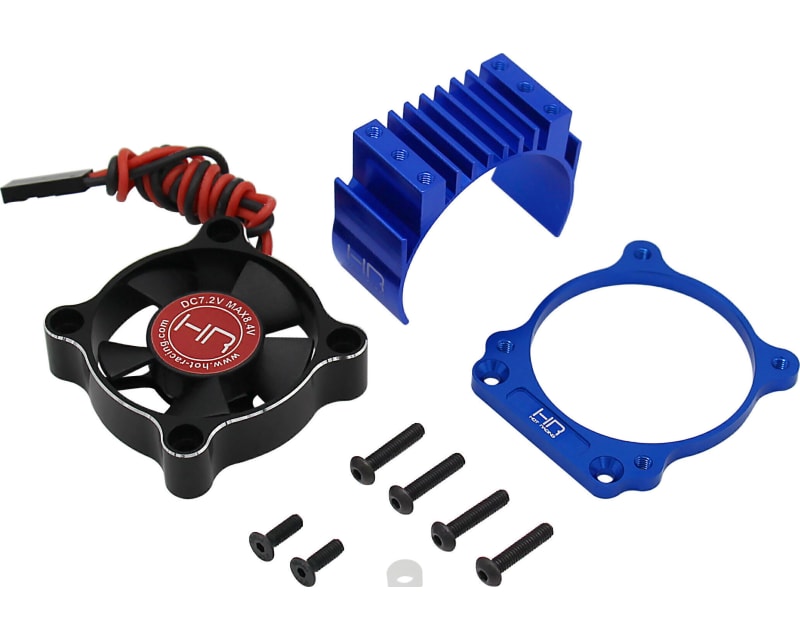

YOU WILL RECEIVE:
- One (1) heat sink with cooling fanREQUIREMENTS:
- Installation- Some units may require assembly (1.5mm and 2mm hex wrench required)
SPECIFICATIONS:
- Overall height: 39mm (1.54 inch)- Heat sink length: 30mm (1.18 inch)
- Fan size: 35x35x10mm
- Fan mounting hole pattern: 24mm square
- Input voltage: DC 7.2-8.4V MAX
- RPM 16000 (7.2V) 18000 (8.4V) RPM
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles
Additional details
| Country of origin | China |
| Package dimensions | 5.00" × 4.00" × 0.52" 12.70 cm × 10.16 cm × 1.32 cm |
| Part numbers | 840353334649 MH3535F01 MMX3535F01 HRAMMX3535F01 |
| Shipping weight | 1.15 ounces 32.48 grams 0.07 pounds |
