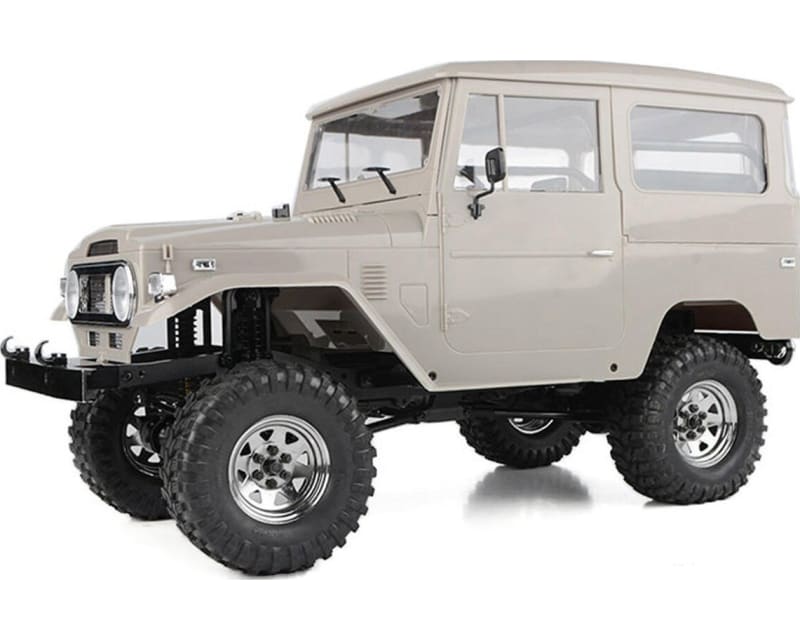

Gelande Ii 1/10 4WD Scale Truck Kit
Made by RC4WD · RC4Z-K0072
Sale
-37%
$429.99
List price: $687.98
One left
Parts lists
Log in to add this part to a parts list to start planning your next project!
Description
Kick off your adventure with the Gelande II Scale Builders Kit!
Built for off-road performance, the Gelande II features an aluminum ladder frame chassis, updated R3 Single-Speed Transmission, and Yota II V2 axles with our new XVD technology!
The front axle now comes with improved screw engagement thaT-Maxximizes steering precision and improves sturdiness. 4-link rear and 3-link pan-hard bar suspensions provide smooth handling and D-80 shocks with our new X-Ring tech and Titanium Nitride Coated Shafts provide a new level of durable impact control.
Customize it to suit your style, whether as a rock crawler or expedition vehicle, without compromising performance. With cast metal axles, stamped steel beadlocks, Scrambler tires, and a chassis-mounted steering servo, sheet. Build your ultimate off-road rig today!
Realistic Billet Aluminum Ladder Frame Chassis
Plastic Punisher Shaft V2
R3 Scale Single Speed Transmission
Center Mounted Realistic 4x4 Transfer Case
Yota II Ultimate Scale Cast Axle V2 (XVD)
6 Lug Wagon 1.9" Steel Stamped Beadlock Wheels
Scrambler Offroad 1.9" Scale Tires
Dual Spring 80mm Scale Black Shocks (VER 3)
Cruiser Body Conversion Kit For G2 Builder Kit
Chassis Mounted Steering Servo
Plastic Fuel Cell Receiver Box
Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide .8 Mod Hardened Steel Gears
R3 Scale Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 1:4.57
Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch
Yota II Ultimate Scale Cast Axles
Ratio: 15/40 = 2.67:1
Width at Hex: 178.2mm
Gelande II Suspension
Double Triangulated 4 Link Rear Suspension. 3 Link Front Suspension with Panhard Bar
Shock Absorbers
Dual Spring 80mm Shocks - Can be oil filled
Wheels
Type: 6 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (Chrome)
Hub: Pin Type width: 25mm (0.98")
Outer diameter: 48.26mm (2.09")
Tires
Type: Scrambler Offroad 1.9" Scale Tires
Outer diameter: 104mm (4.09")
width: 43mm (1.69")
Inner diameter: 46mm (1.81")
Gelande II Truck Dimensions
length: 18.31in / 465mm
width: 8.66in / 220mm
height: 10.24in / 260mm
Ground Clearance: 1.97in / 50mm
Final Drive Ratio: 31.9:1
This is a kit that requires building time (appro. 2-3 hours) and electronics
Built for off-road performance, the Gelande II features an aluminum ladder frame chassis, updated R3 Single-Speed Transmission, and Yota II V2 axles with our new XVD technology!
The front axle now comes with improved screw engagement thaT-Maxximizes steering precision and improves sturdiness. 4-link rear and 3-link pan-hard bar suspensions provide smooth handling and D-80 shocks with our new X-Ring tech and Titanium Nitride Coated Shafts provide a new level of durable impact control.
Customize it to suit your style, whether as a rock crawler or expedition vehicle, without compromising performance. With cast metal axles, stamped steel beadlocks, Scrambler tires, and a chassis-mounted steering servo, sheet. Build your ultimate off-road rig today!
Realistic Billet Aluminum Ladder Frame Chassis
Plastic Punisher Shaft V2
R3 Scale Single Speed Transmission
Center Mounted Realistic 4x4 Transfer Case
Yota II Ultimate Scale Cast Axle V2 (XVD)
6 Lug Wagon 1.9" Steel Stamped Beadlock Wheels
Scrambler Offroad 1.9" Scale Tires
Dual Spring 80mm Scale Black Shocks (VER 3)
Cruiser Body Conversion Kit For G2 Builder Kit
Chassis Mounted Steering Servo
Plastic Fuel Cell Receiver Box
Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide .8 Mod Hardened Steel Gears
FEATURES:
8 Bearings, Cast Casing, Hardened GearsR3 Scale Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 1:4.57
Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch
Yota II Ultimate Scale Cast Axles
Ratio: 15/40 = 2.67:1
Width at Hex: 178.2mm
Gelande II Suspension
Double Triangulated 4 Link Rear Suspension. 3 Link Front Suspension with Panhard Bar
Shock Absorbers
Dual Spring 80mm Shocks - Can be oil filled
Wheels
Type: 6 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (Chrome)
Hub: Pin Type width: 25mm (0.98")
Outer diameter: 48.26mm (2.09")
Tires
Type: Scrambler Offroad 1.9" Scale Tires
Outer diameter: 104mm (4.09")
width: 43mm (1.69")
Inner diameter: 46mm (1.81")
Gelande II Truck Dimensions
length: 18.31in / 465mm
width: 8.66in / 220mm
height: 10.24in / 260mm
Ground Clearance: 1.97in / 50mm
Final Drive Ratio: 31.9:1
YOU WILL RECEIVE:
1x RC4WD Gelande II Truck Kit w/Cruiser Body SetThis is a kit that requires building time (appro. 2-3 hours) and electronics
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Additional details
| Country of origin | China |
| Package dimensions | 20.25" × 10.35" × 12.00" 51.44 cm × 26.29 cm × 30.48 cm |
| Part numbers | RC4ZK0072 RC4Z-K0072 639302617526 |
| Shipping weight | 192.96 ounces 5470.32 grams 12.06 pounds |
