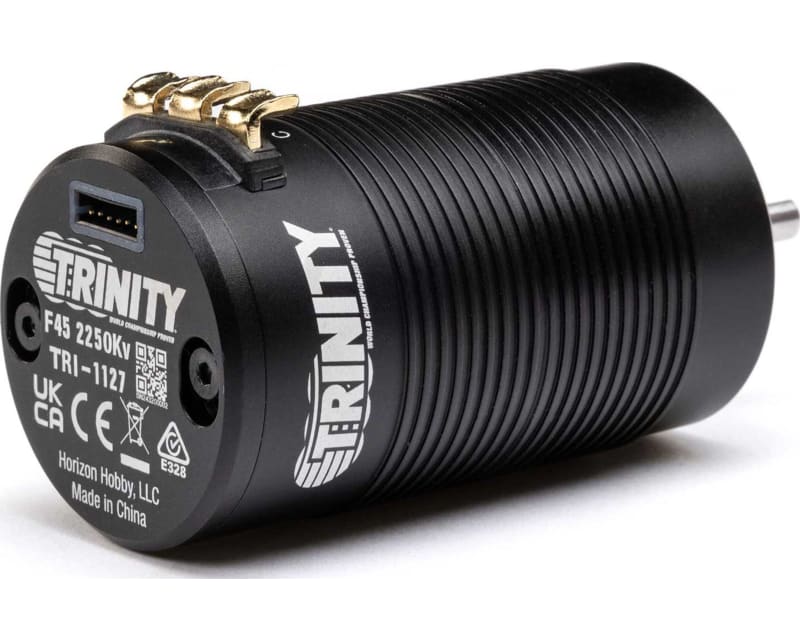

F45 2250kv 1/8 Truggy brushless Race Motor
Made by Trinity · TRI-1127
Original price: $290.98 · Sale: $199.99
Log in to add this part to a parts list to start planning your next project!
Description
Trinity F45 brushless Race Motors deliver the muscle you need to make your 1/8 scale buggy or truggy perform like a champion. With 2S-6S LiPo power compatibility, these motors produce high rpm with exceptional efficiency. These power units also offer smooth acceleration and predictable low-speed drivability due to their sensored design.
F45 brushless Race Motors offer a completely enclosed design, reducing your maintenance needs and giving them protection and durability to excel in demanding off-road environments. Other features include a 4-pole rotor for high torque, CNC-machined aluminum housing, insulated copper windings, steel 5mm output shaft, and smooth precision bearings.
Application
1/8 Scale Off-Road Vehicle
Maximum Continuous Current
80A
Motor Type
brushless
Number of Poles
4
Outer Diameter
1.61" (41 mm)
Power (watts)
3100 watts
Product Length
2.91" (74 mm)
Product Weight
12.7oz (360g)
RPM/Volt (Kv)
2250Kv
Shaft Diameter
0.19" (5 mm)
Thread Size
4xM4 and 4xM3 @ 25.4 Spacing Center to Center
Voltage
2S 6S LiPo (8.4V 25.2V)
F45 brushless Race Motors offer a completely enclosed design, reducing your maintenance needs and giving them protection and durability to excel in demanding off-road environments. Other features include a 4-pole rotor for high torque, CNC-machined aluminum housing, insulated copper windings, steel 5mm output shaft, and smooth precision bearings.
Application
1/8 Scale Off-Road Vehicle
Maximum Continuous Current
80A
Motor Type
brushless
Number of Poles
4
Outer Diameter
1.61" (41 mm)
Power (watts)
3100 watts
Product Length
2.91" (74 mm)
Product Weight
12.7oz (360g)
RPM/Volt (Kv)
2250Kv
Shaft Diameter
0.19" (5 mm)
Thread Size
4xM4 and 4xM3 @ 25.4 Spacing Center to Center
Voltage
2S 6S LiPo (8.4V 25.2V)
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles (28)
Additional details
| Country of origin | China |
| Package dimensions | 6.00" × 4.15" × 2.85" 15.24 cm × 10.54 cm × 7.24 cm |
| Part numbers | TRI1127 TRI-1127 660132998899 |
| Shipping weight | 16.00 ounces 453.59 grams 1.00 pounds |
