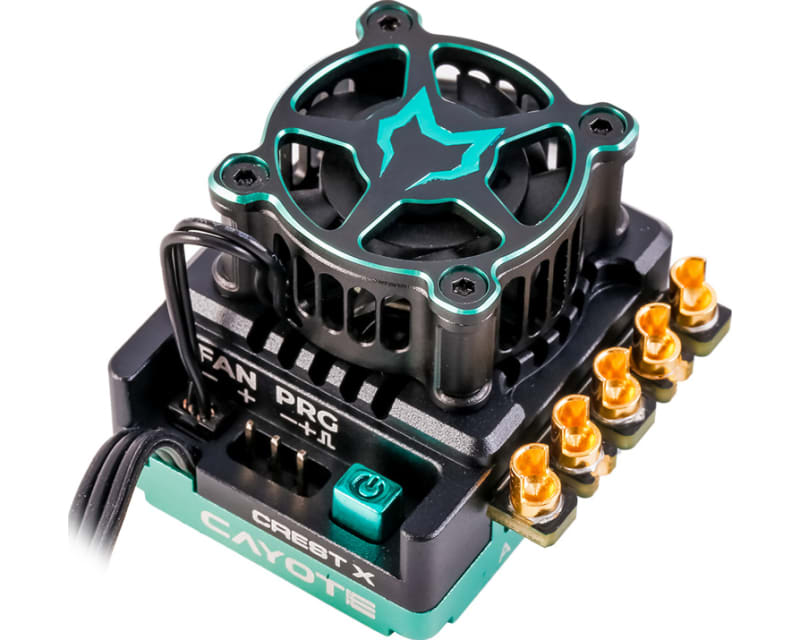

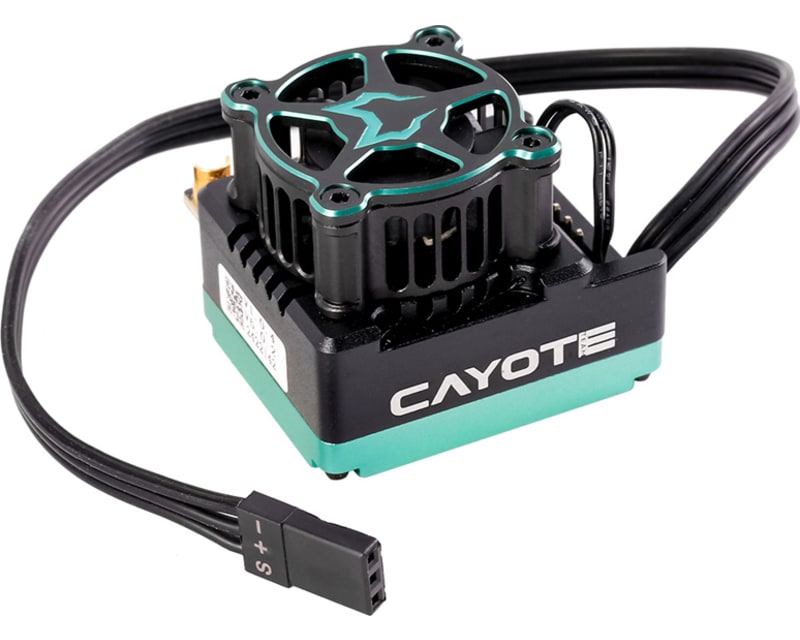

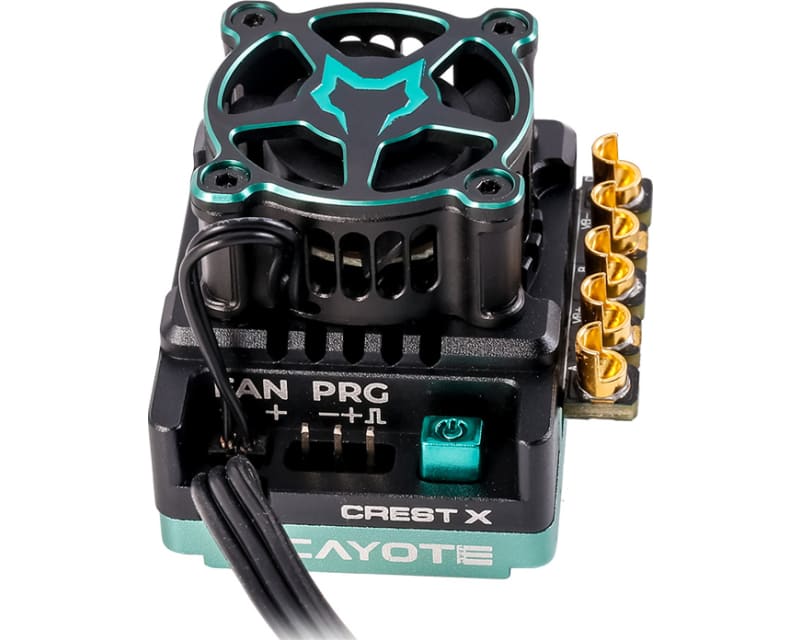

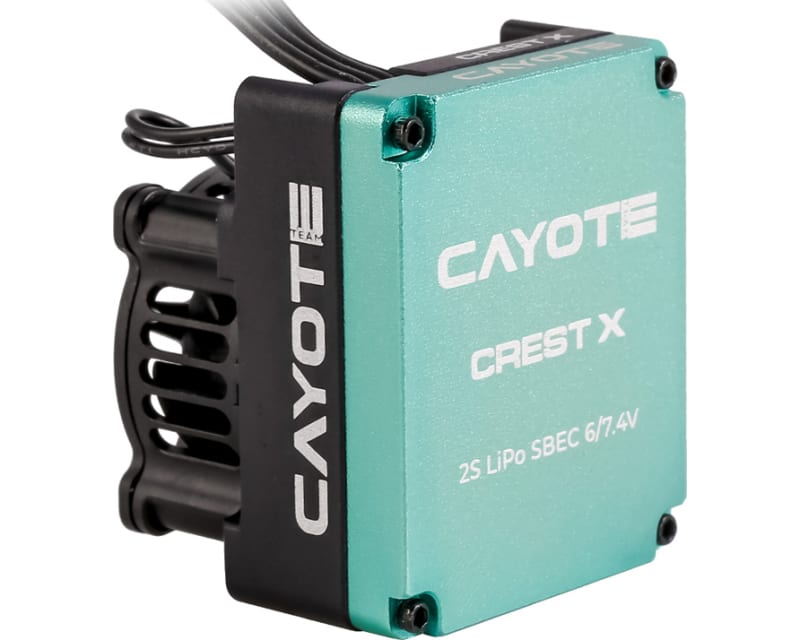

CAYOTE Racing ESC CREST X 160A

Cayote Crest X ESC delivers high performance and reliable current transmission, ensuring your RC vehicles run smoothly and efficiently. This ESC features an advanced cooling system and a variety of functions, combining smart technology with user-friendly operation. Pair it with Cayote motor and battery for best performance.
.
Product Core Tech
- Super Large 48-degree Boost & Turbo Timing
- Increased power output and optimized motor efficiency.
.
Offline Data Recording
- Track ESC's performance, lets you make informed decisions.
.
Over 33 Adjustable Parameters
- Supports various power and drive modes.
.
Built-in Super Switching Mode BEC
- Support of 6V/7.4V adjustable BEC to adapt to various high power BEC.
Built-in Professional Reversing Shutdown
- Only enabled in forward with brake and forward and reverse with brake modes.
.
Multiple Protection Functions
- Low voltage protection, ESC and motor overheat protection.
.
BRCA Legal.
.
Scale: 1/10
Mode: Sensor/Sensorless
Cont. Current: 160A
Peak Current: 1100A
Battery: 2S LiPo
BEC Output Voltage: 6.0/7.4V
BEC Output Current: 8A Cont. / 12A Peak
Firmware Upgrade: Supported
Data Recording: Extreme value, Real-time Data
Size: 37.9x31.4x30mm
Weight: 55g
.
Compatibility
- Motor: 1/10th TC4.5T1/10th Off Road5.5T
- Vehicle: 1/10th TC; 1/10th Off Road/Etc.
.
Wiring and Cooling
- Output Wires: Black-13AWG-180MM*3
- Input Wires: Red-13AWG-180MM*1
- Black-13AWG-180MM*1
- Cooling Fan: 25x25x10mm, 5-8.4V BEC
.
ESC Programming Via
- XLink Program Box Compatible
- B-Tune Connect (Optional)
- Internal Program (Port)(APP Control)
