Description

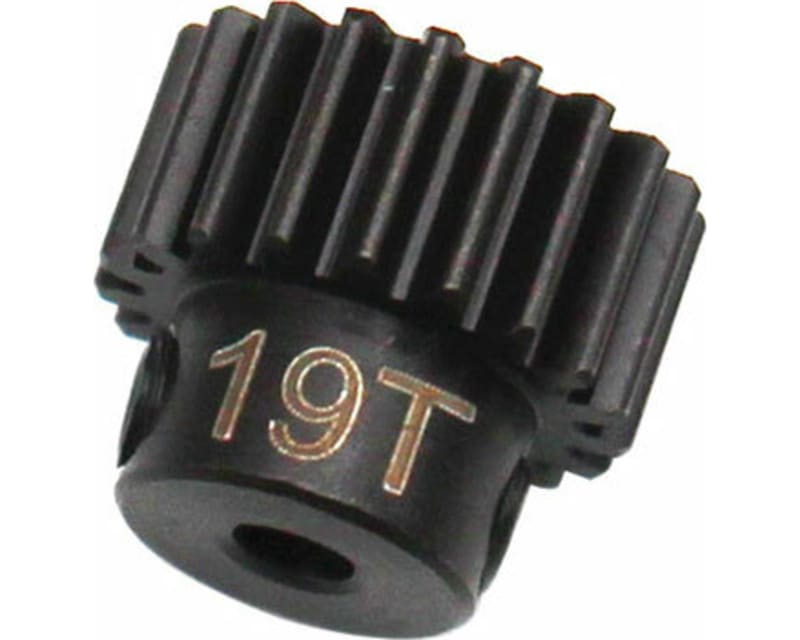

Hot Racing 19 Tooth .5 Mod Pinion Gear 2.3 Bore
Harden Blackened finish
3mm Set Screw
Hole diameter: 2.3mm
Gear Pitch: .5 Mod
length: 0.35 inch (8.9mm)
Tooth Face width: 0.20 inch (5mm)
Hub Outer diameter: 0.32 inch (8mm)
Need to use appropriate motor mount
Like GRM18V01 or GRM18A06 or ARA320744
FEATURES:
CNC Steel constructionHarden Blackened finish
YOU WILL RECEIVE:
19 Tooth .5 Mod Pinion Gear3mm Set Screw
SPECIFICATIONS:
Number of Teeth: 19Hole diameter: 2.3mm
Gear Pitch: .5 Mod
length: 0.35 inch (8.9mm)
Tooth Face width: 0.20 inch (5mm)
Hub Outer diameter: 0.32 inch (8mm)
COMMENTS:
For use with GromNeed to use appropriate motor mount
Like GRM18V01 or GRM18A06 or ARA320744
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Related parts
Additional details
Country of origin | China |
Package dimensions | 3.50" × 2.50" × 0.42" 8.89 cm × 6.35 cm × 1.07 cm |
Part numbers | MSG19M05 840353332331 GRM19M05 HRAMSG19M05 |
Shipping weight | 0.23 ounces 6.49 grams 0.01 pounds |
