Platnium 150a V5.1 Esc

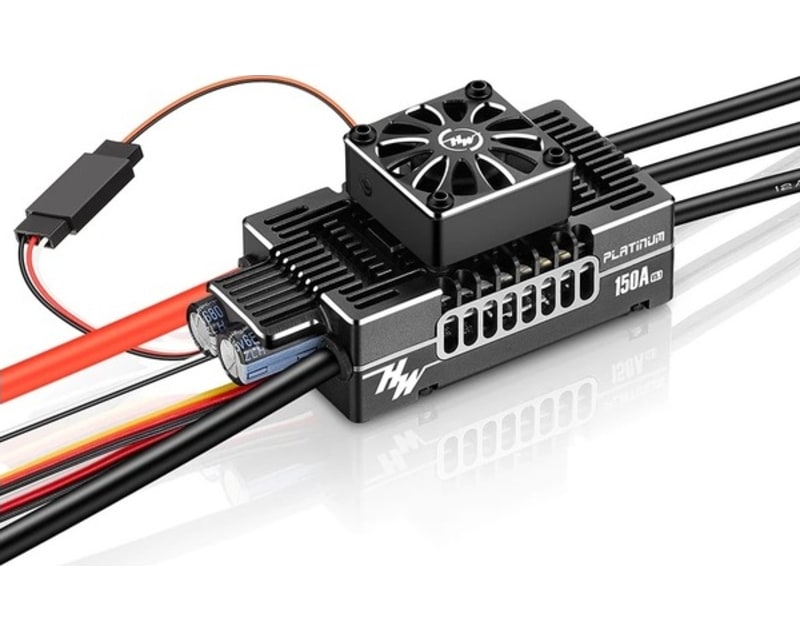

The Hobbywing Platinum 150A V5.1 ESC is a high-performance brushless electronic speed controller designed for 520-580 class electric helicopters and fixed-wing RC aircraft running 3-8S LiPo batteries. It features a new double-sided heat sink design with side window cooling that uses craft airflow for both external and internal cooling, along with DEO (Driving Efficiency Optimization) technology that delivers faster throttle response, improved flight stability, higher efficiency, and lower operating temperatures. The 32-bit processor and advanced RPM accuracy algorithm provide consistent power delivery, and the built-in 12V switch BEC offers adjustable voltage output from 5-12V in 0.1V increments to power receivers, servos, and other onboard electronics.
* 150A continuous current, 180A burst current
* 3-8S LiPo input voltage
* Built-in 12V switch BEC, adjustable 5-12V output in 0.1V steps, 10A continuous, 30A peak
* 32-bit processor with advanced RPM accuracy algorithm for improved power and consistency
* Double-sided heat sink with side window design for improved airflow cooling
* Built-in cooling fan included
* DEO (Driving Efficiency Optimization) technology for faster throttle response and lower temperatures
* Multiple flight modes: fixed-wing, helicopter external governor, helicopter Elf governor, helicopter store governor
* Programmable via Hobbywing LCD program box or OTA module (sold separately)
* Supports Mikado VBar System, Futaba S. BUS2, and other telemetry protocols
* Soft start function optimized for helicopter use
* Multiple protection
over-current, over-temperature, low-voltage cutoff, signal loss, anti-spark
* Firmware upgradeable via USB Link or OTA module
*
83.2 x 37.1 x 22.5 mm
* Weight: 150.4g with wires, without fan
* 1 x Hobbywing Platinum 150A V5.1 ESC
* 1 x Built-in cooling fan
* Signal and programming cables
* User manual
* 520-580 class electric helicopter (main blade length 520-580mm) or large fixed-wing aircraft
* 3-8S LiPo battery
* brushless motor (appropriate for 520-580 class heli or fixed-wing)
* Radio transmitter and receiver
* Hobbywing LCD program box or OTA module for programming (sold separately, optional)
