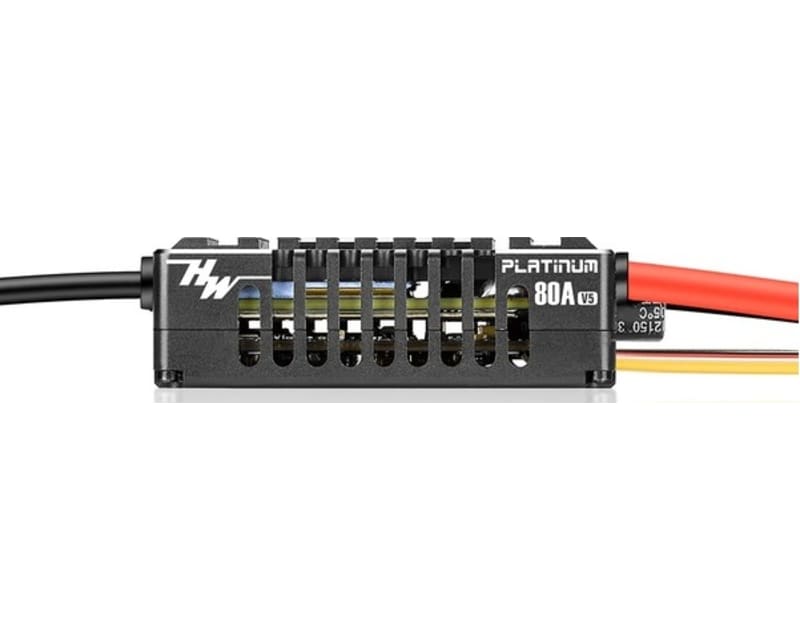

Platnium 80a V5 Esc

The Hobbywing Platinum 80A V5 ESC is a high-performance brushless electronic speed controller designed for 325-420 class electric helicopters and fixed-wing RC aircraft running 3-8S LiPo batteries. It features a new double-sided heat sink design with side ventilation that cools the ESC using craft airflow, providing both external and internal cooling for improved thermal management. The built-in 12V switch-mode BEC offers adjustable voltage output from 5-12V in 0.1V increments with 8A continuous current and up to 20A peak output, and includes an anti-reverse circuit for safe operation in parallel with external batteries. The ESC supports telemetry protocols including Mikado VBar System and Futaba S. BUS2 for remote parameter adjustment and real-time monitoring, and incorporates DEO (Driving Efficiency Optimization) technology for faster throttle response, improved flight stability, and increased efficiency.
* 80A continuous current, 120A burst current rating
* 3-8S LiPo input voltage range
* Built-in 12V switch-mode BEC, adjustable 5-12V in 0.1V steps, 8A continuous, 20A peak
* 32-bit processor with advanced RPM accuracy algorithm for precise governor performance
* Double-sided heat sink with side windows for enhanced airflow cooling
* DEO technology for improved throttle response, flight stability, and efficiency
* Telemetry support for Mikado VBar, Futaba S. BUS2, and other data protocols
* Anti-reverse circuit in BEC for safe parallel operation with external batteries
* Programmable via LCD program box or OTA wireless module (sold separately)
* Firmware upgradable
* Multiple protection functions including over-current, over-temp, and low-voltage cutoff
* 12AWG input wires (red and black, 150mm), 14AWG output wires (black, 100mm)
* 3.5mm gold-plated female bullet connectors on motor wires
* Compact size: 60.5 x 33 x 17.6mm
* Weight: 77.5g with wires
* 1 x Hobbywing Platinum 80A V5 ESC with pre-installed wires and connectors
* 1 x User manual
* 325-420 class electric RC helicopter or fixed-wing aircraft
* 3-8S LiPo battery with appropriate discharge rating
* brushless outrunner motor suitable for the application
* RC transmitter and receiver
* Battery charger
* Soldering iron or connectors to attach battery leads
* LCD program box (HW30502001) or OTA wireless programmer module (HW30850400) for programming, sold separately
