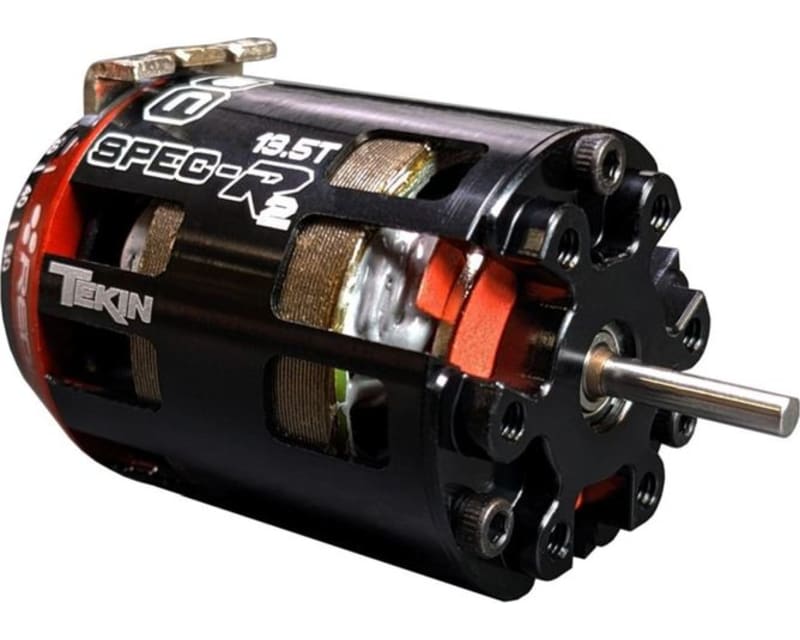

SPEC-R2 13.5T GEN4 ELITE brushless Motor

Tekin's SPEC-R2 brings next-level performance to SPEC racing classes. Improving on the original SPEC-R design, they revamped and refined the stator, rotor and materials used to increase both speed and torque while providing minimal fade during the late stages of the race. The SPEC-R2 is a hand-crafted, high-performance racing motor that is ready to hit the track right out of the box.
TT2782 12.5mm SILVER rotor. Setup critical, SILVER rotors are a special material and can be damaged by excessive heat from over-gearing and over-timing.
60 Degrees Adjustable Timing Advance
SPEC Racing Specific Design
CNC Machined 6061-T6 Billet Aluminum Heat Sink Can
Neodymium Sintered Magnet
Precision Engineered for Maximum Energy Conversion
High Purity Copper Windings Maximize Conductivity
Sensored System Ready
Anodized Endbell Plates Maximize Corrosion and Wear Resistance
High RPM Precision Bearings
Oversized Front Bearing
Legal in Major Governing Race Bodies
ROAR Approved
Motor Turns: 13.5T
Input Voltage: 1S-3S LiPo/LiHV / 4.2V-13.05V
Design: 2-pole 3-slot
Weight: 5.35oz / 152.2g
Shaft Size: 3.18mm / 1/8in
Motor length: 50.25mm / 1.987in
Motor diameter: 35.85mm / 1.40in
Bearing
Front 4 x 13 x 5mm / Rear 1/8 x 3/8 x 5/32in
Rotor Size: TT2782 12.5mm Silver
Max Operating Temperature: 180F / 82C
Max RPM: 100, 000
Mounting Pattern: M3 @ 25.4mm / M3 @ 1.0in
Rebuildable: YES
