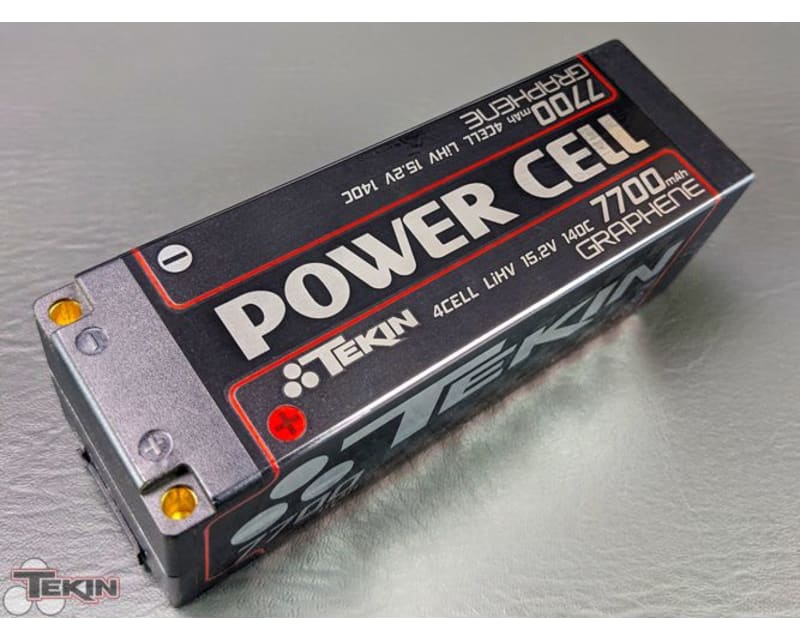

4S HV 7700mAh 140C Brick 5mm Bullets Graphene LiPo
Made by Tekin · TEKTT1623
Sale
-30%
$174.99
List price: $250.00
One left
Parts lists
Log in to add this part to a parts list to start planning your next project!
Description
Tekin Graphene POWER CELL 4S 7700mAh HV LiPo Brick 5MM
(1) Balance Charging Harness
Configuration: 4S1P
Nominal Voltage: 15.2V
Charged Voltage: 17.4V
Storage Voltage: 15.6V
HV Capacity: 7700mAh
Max Charge Rate: 1.5C
Max Discharge Rate: 140C
Watt Hours: 117.04wh
Connector Type: 5mm High Power Bullet
Balance Connector: JST
Dimensions (in): 5.4 x 1.8 x 1.8in
Dimensions (mm): 139 x 47.5 x 47.5mm
Weight (oz): 602.3oz
Weight (g): 21.24g
LiHV Graphene technology allows charging up to 4.35V per cell for more power and longer run-time.
140C Discharge Rate delivers power on demand.
5mm High Power Bullet Connectors are gold plated for low resistance and maximum current.
Balance charging harness included.
Dust Cover protected balance port.
Hard Box housing protects cells and connector terminals.
YOU WILL RECEIVE:
(2) 5mm High Power Bullet Plugs(1) Balance Charging Harness
SPECIFICATIONS:
Model: 4S LiHVConfiguration: 4S1P
Nominal Voltage: 15.2V
Charged Voltage: 17.4V
Storage Voltage: 15.6V
HV Capacity: 7700mAh
Max Charge Rate: 1.5C
Max Discharge Rate: 140C
Watt Hours: 117.04wh
Connector Type: 5mm High Power Bullet
Balance Connector: JST
Dimensions (in): 5.4 x 1.8 x 1.8in
Dimensions (mm): 139 x 47.5 x 47.5mm
Weight (oz): 602.3oz
Weight (g): 21.24g
FEATURES:
4S Power for 1:8 EP Buggy, Truggy and Monster Truck. LiHV Graphene technology allows charging up to 4.35V per cell for more power and longer run-time.
140C Discharge Rate delivers power on demand.
5mm High Power Bullet Connectors are gold plated for low resistance and maximum current.
Balance charging harness included.
Dust Cover protected balance port.
Hard Box housing protects cells and connector terminals.
Manufacturer information
Additional details
Country of origin | China |
Package dimensions | 6.75" × 2.75" × 2.50" 17.15 cm × 6.99 cm × 6.35 cm |
Part numbers | TEKTT1623 706893016233 |
Shipping weight | 22.20 ounces 629.36 grams 1.39 pounds |
