Description

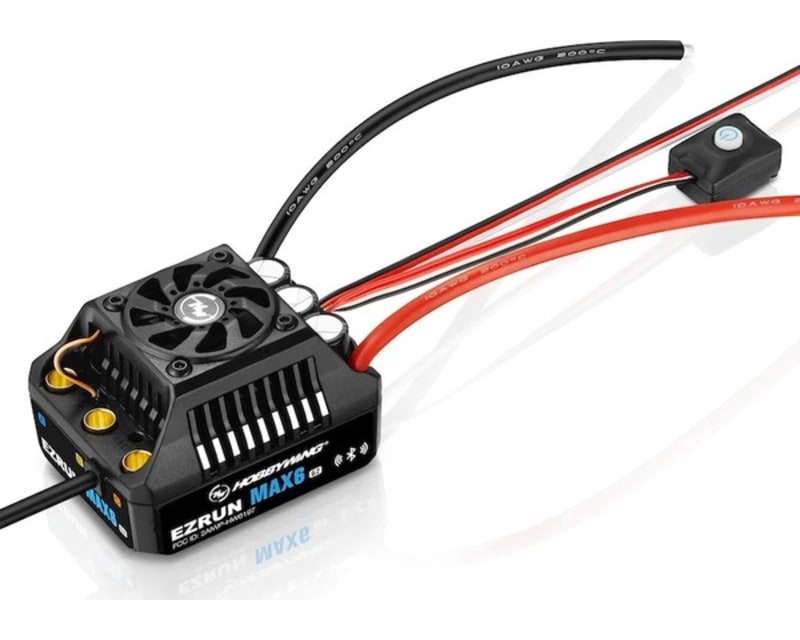

The esc has an innovative waterproof sensor interface, enhancing the overall waterproof and dustproof performance. It is easy to deal with the harsh conditions containing sediment, ice and snow, water accumulation.
Built-in ultra-powerful switch mode BEC with a continuous current of 8A, an instant 25A, and support for 6V/7.4V/8.4V switching, supporting a wide range of powerful and high-voltage servos.
Supports turbo timing setting, the timing response is remarkable when used with the matching motor(such as EZRUN 4990 G2 or 5690 G2 Sensored brushless motor).
Multiple protection functions: battery low voltage protection, ESC and motor overheat protection, signal loss protection, current protection.
The built-in (integrated in the switch) Bluetooth function allows for setting and upgrading the esc by directly connecting to the mobile app, without any additional devices, making it simpler and more convenient.
Data logging function to view various running data on the HW LINK app.
Supports the firmware upgrade of the ESC, you can enjoy the latest functions.
- Sensored/Sensorless Motors
- 3-8S LiPo Capable
- 6S: KV=2400 / 8S: KV=1700
- BEC: 6v or 7.4V or 8.4V
- Waterproof
- Weight: 245g (Included input wires)
Built-in ultra-powerful switch mode BEC with a continuous current of 8A, an instant 25A, and support for 6V/7.4V/8.4V switching, supporting a wide range of powerful and high-voltage servos.
Supports turbo timing setting, the timing response is remarkable when used with the matching motor(such as EZRUN 4990 G2 or 5690 G2 Sensored brushless motor).
Multiple protection functions: battery low voltage protection, ESC and motor overheat protection, signal loss protection, current protection.
The built-in (integrated in the switch) Bluetooth function allows for setting and upgrading the esc by directly connecting to the mobile app, without any additional devices, making it simpler and more convenient.
Data logging function to view various running data on the HW LINK app.
Supports the firmware upgrade of the ESC, you can enjoy the latest functions.
FEATURES:
- Current Cont/Peak: 200A/1200A- Sensored/Sensorless Motors
- 3-8S LiPo Capable
- 6S: KV=2400 / 8S: KV=1700
- BEC: 6v or 7.4V or 8.4V
- Waterproof
SPECIFICATIONS:
- Size: 70(L) x 56(W)x 45.5(H)mm- Weight: 245g (Included input wires)
Manufacturer information
Additional details
| Country of origin | China |
| Package dimensions | 6.00" × 4.25" × 2.25" 15.24 cm × 10.80 cm × 5.72 cm |
| Part numbers | 088718505598 HWI30105100 |
| Shipping weight | 12.50 ounces 354.37 grams 0.78 pounds |
