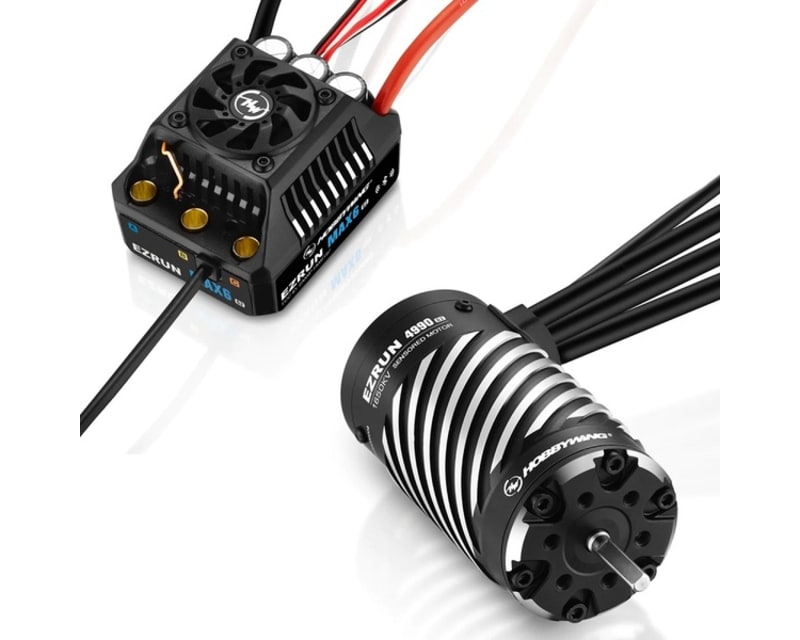

EzRun MAX6 G2 Combo with 4990SD G2 1650KV Motor

The EzRun MAX6 G2 combo pairs Hobbywing's 3-8S waterproof ESC with the 4990SD G2 sensored brushless motor for large-scale on-road, truck, and monster truck builds. The MAX6 G2 delivers 200A continuous and 1200A peak on up to 8S LiPo, with a switch-mode BEC good for 8A continuous (25A instant) at a selectable 6V, 7.4V, or 8.4V to run high-torque servos. Built-in Bluetooth connects the ESC to the Hobbywing app for full programming, live telemetry, up to 10 minutes of run data logging, and firmware updates without a separate programming card. The 4990SD G2 motor uses a CNC-machined aluminum housing, high-purity copper windings, and an expLosion-proof rotor, with a high-precision encoder and an upgraded waterproof sensor interface for consistent timing in wet and dirty conditions.
.
ESC:
.
Continuous / peak current: 200A / 1200A
Input: 3-8S LiPo
BEC: switch-mode, 6V / 7.4V / 8.4V selectable, 8A continuous (25A instant)
Motor support: sensored and sensorless brushless , 4990 / 5690 size
Cooling fan: 35 x 35 x 10mm framed, 5-8.4V
Waterproof rating: IP67
Input wires: 10AWG, 200mm (black x1, red x1)
Motor connectors: 6.5mm female bullets
Size: 70 x 56 x 45.5mm
Weight: 245g (with input wires)
Bluetooth programming, telemetry, and data logging via the Hobbywing app
.
Motor (4990SD G2):
.
KV: 1650KV
Poles: 4
Type: sensored brushless , waterproof
Battery: 3-8S LiPo
Max RPM: 52, 000
No-load current: 7.0A
Can diameter: 49mm
length: 90mm
Shaft diameter: 5mm
Weight: 701g
Wires: 8AWG, 250mm x3
Connectors: 6.5mm male bullets (8mm plugs included)
Bearings: 19 x 6 x 6mm front and rear
Recommended for 1/7 on-road, short course, and truck; 1/8 heavy-duty monster truck
One EzRun MAX6 G2 ESC
One EzRun 4990SD G2 1650KV sensored brushless motor
User's manual
Hobbywing decal
3-8S LiPo battery pack or packs and a compatible charger
Battery connector of your choice (ESC ships without a battery plug installed)
2.4GHz radio system with receiver
Pinion gear sized for your chassis and gearing
Motor mount and hardware suited to a 49mm can
Bluetooth-capable phone with the Hobbywing app for programming and firmware updates
