Description
This Universal Slider Set is a new product for our Educational Construction Series! These assembly slides can move along universal arms. Use them to convert gearbox rotation into linear motion (slider-crank mechanism) or use them as guide parts for linear motion. Simple structure (slider base with attachment holes and rollers) allows compact assembly.
Slider width: 29.2mm, depth: 29.2mm, height: 20.2mm. Weight: 5.8g. (approximate)

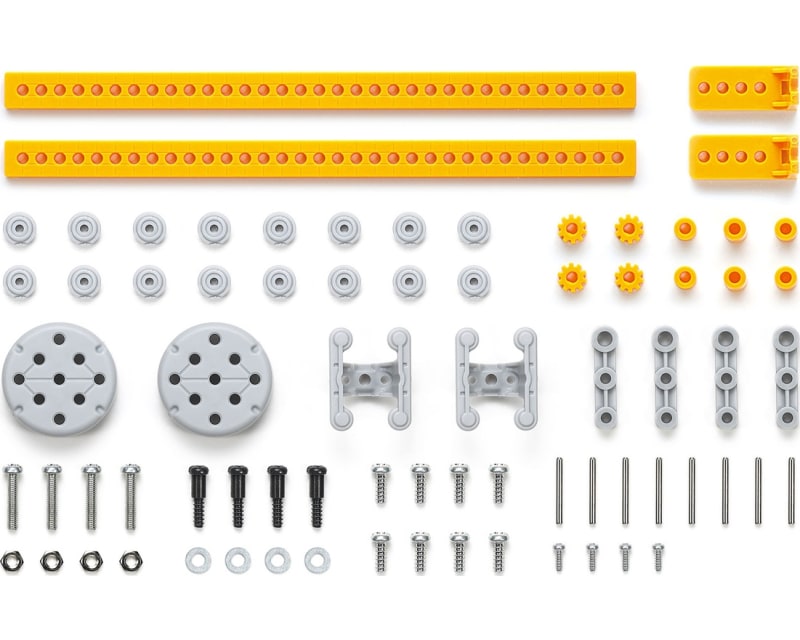

Includes the following parts:
1. Parts for sliders x2
2. Universal arm x1
3. 3x8mm tapping screws x8.
4. 2x6mm tapping screws x4.
5. 3x14mm step screws x4
6. 3x15mm screws x4
7. 2x17mm shafts x8
8. 3mm washers x4
9. 3mm nuts x4.
Can be used with straight and curved universal arms.
Sliders can also move along 20mm gaps.
Includes joint part which connects slider with universal arm and works as the axis of rotation.
Slider width: 29.2mm, depth: 29.2mm, height: 20.2mm. Weight: 5.8g. (approximate)
Includes the following parts:
1. Parts for sliders x2
2. Universal arm x1
3. 3x8mm tapping screws x8.
4. 2x6mm tapping screws x4.
5. 3x14mm step screws x4
6. 3x15mm screws x4
7. 2x17mm shafts x8
8. 3mm washers x4
9. 3mm nuts x4.
Can be used with straight and curved universal arms.
Sliders can also move along 20mm gaps.
Includes joint part which connects slider with universal arm and works as the axis of rotation.
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Additional details
| Country of origin | Japan |
| Package dimensions | 7.00" × 4.00" × 1.00" 17.78 cm × 10.16 cm × 2.54 cm |
| Part numbers | 4950344702589 TAM70258 |
| Shipping weight | 2.20 ounces 62.37 grams 0.14 pounds |
