RAW 800LP Brass Edition Fully Programable
Made by Reefs RC · SEHREEFS160
Sale
-34%
$199.99
List price: $302.00
One left
Parts lists
Log in to add this part to a parts list to start planning your next project!
Description

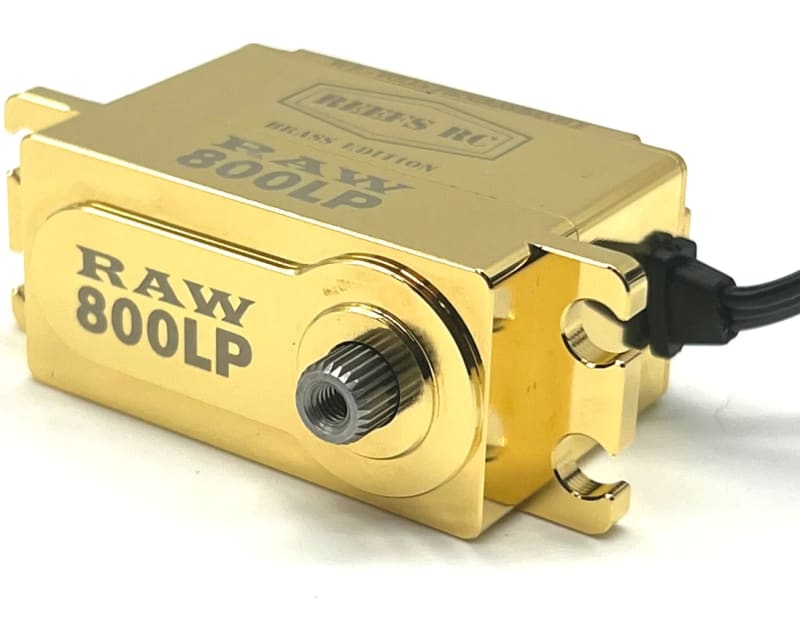

RAW800LP Brass Edition, Fully Programmable, brushless Low Profile Servo
Submarine Waterproof: 7 Point Seals
Positioning: Magnetic Angle Sensor
Voltage: 4.8V - 8.4V
Programmable: REEFS LINK required for Programming (Optional)
Gears: Steel Gears
Spline: 25T / Dead Band width: 2
Case: CNC Aluminum Casing
Bearing Type: 2 Ball Bearings
Weight: 2.3oz / 66gm
Dimension LWH: 1.6 x .79 x 1.16 / 40.8x20.2x29.5mm
Torque: 635oz @ 6v/ 715oz @7.4v/ 800oz @8.4v
Speed: .12sec @6v/.10sec @7.4v/.09sec @8.4v
Unload Current: 500mA @ 6.0V, 540mA @ 7.4V, 580mA @ 8.4V
Load Current: 6000mA @ 6.0V, 6800mA @ 7.4V, 7500mA @ 8.4V
NOTE:
BEC not required, but recommended for best performance. SPECIFICATIONS:
Motor: 4 POLE - brushless Submarine Waterproof: 7 Point Seals
Positioning: Magnetic Angle Sensor
Voltage: 4.8V - 8.4V
Programmable: REEFS LINK required for Programming (Optional)
Gears: Steel Gears
Spline: 25T / Dead Band width: 2
Case: CNC Aluminum Casing
Bearing Type: 2 Ball Bearings
Weight: 2.3oz / 66gm
Dimension LWH: 1.6 x .79 x 1.16 / 40.8x20.2x29.5mm
Torque: 635oz @ 6v/ 715oz @7.4v/ 800oz @8.4v
Speed: .12sec @6v/.10sec @7.4v/.09sec @8.4v
Unload Current: 500mA @ 6.0V, 540mA @ 7.4V, 580mA @ 8.4V
Load Current: 6000mA @ 6.0V, 6800mA @ 7.4V, 7500mA @ 8.4V
Manufacturer information
Additional details
| Country of origin | United States |
| Package dimensions | 3.50" × 2.50" × 1.50" 8.89 cm × 6.35 cm × 3.81 cm |
| Part numbers | SEHREEFS160 602024523826 |
| Shipping weight | 6.30 ounces 178.60 grams 0.39 pounds |
