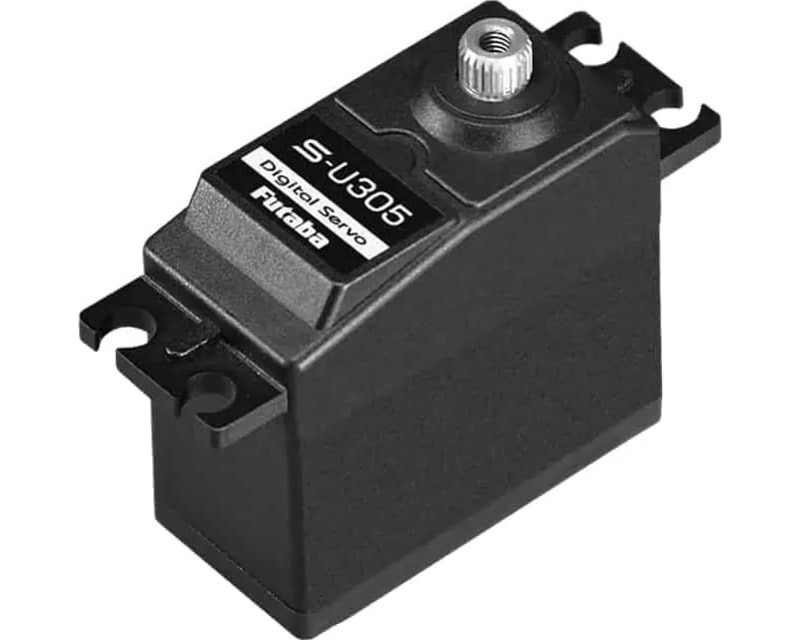

S-U305 Standard Digital Airplane/Car Servo No S.Bus
Made by Futaba · FUT01102376-3
Sale
-29%
$39.99
List price: $55.98
4 in stock
Parts lists
Log in to add this part to a parts list to start planning your next project!
Description
SPEED:
0.18 sec/60deg at 6.0V
0.23 sec/60deg at 4.8V
TORQUE:
8.9 kgf/cm at 6.0V
123.6 ozf/in at 6.0V
7.1 kgf/cm at 4.8V
98.6 ozf/in at 4.8V
SIZE:
40 mm x 20 mm x 38.1 mm
1.57 in x 0.79 in x 1.50 in
WEIGHT:
46.5 g
1.64 oz
NO DRY BATTERY USE
NO SBUS
DO NOT LEAVE SERVO STALLED
Stall may cause printed circuit board to burn
0.18 sec/60deg at 6.0V
0.23 sec/60deg at 4.8V
TORQUE:
8.9 kgf/cm at 6.0V
123.6 ozf/in at 6.0V
7.1 kgf/cm at 4.8V
98.6 ozf/in at 4.8V
SIZE:
40 mm x 20 mm x 38.1 mm
1.57 in x 0.79 in x 1.50 in
WEIGHT:
46.5 g
1.64 oz
NO DRY BATTERY USE
NO SBUS
DO NOT LEAVE SERVO STALLED
Stall may cause printed circuit board to burn
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Additional details
Country of origin | China |
Package dimensions | 3.50" × 3.00" × 1.00" 8.89 cm × 7.62 cm × 2.54 cm |
Part numbers | FUT01102376-3 FUT011023763 4513886036484 |
Shipping weight | 2.50 ounces 70.87 grams 0.16 pounds |
