Combo Max5 HV G2-56118sd G2; 800kv
Made by Hobbywing · HWI38010602
Sale
-32%
$469.99
List price: $690.86
One left
Parts lists
Log in to add this part to a parts list to start planning your next project!
Description

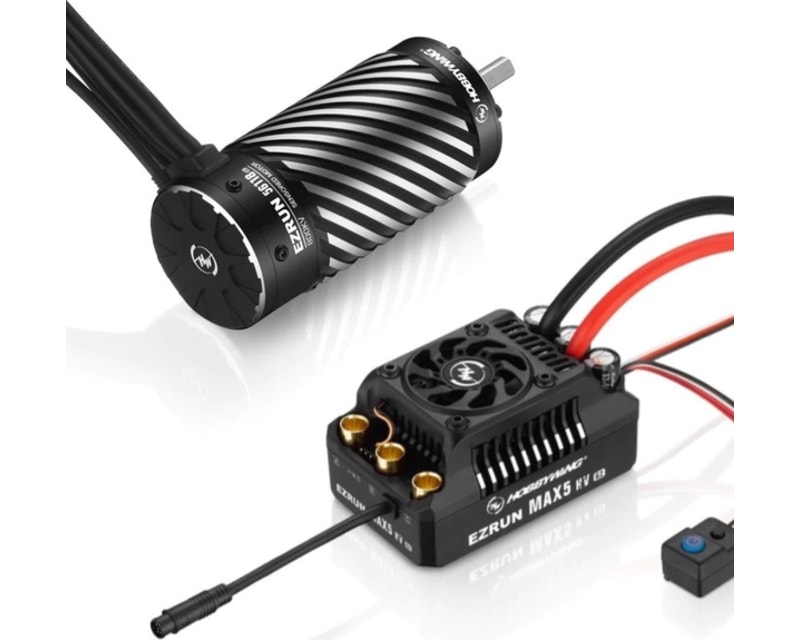

Combo Max5 G2-56118sd G2 ESC with 800kv Motor
ESC
MOTOR TYPE - SENSORED/ SENSORLESS BRUSHLESS MOTOR
APPLICATIONS - 1/5TH BUGGY/TRUCK
MOTOR LIMIT* -
WITH 8S LIPO - KV < 1200
WITH 12S LIPO - KV < 800 USING 56118 SIZE MOTOR
LIPO CELLS - 6-12s LIPO
BEC OUTPUT - 6V/7.4V/8.4V ADJUSTABLE, CONTINUOUS CURRENT 8A (SWITCH-MODE)
SIZE/WEIGHT - 94.5(L) X 59.4(W) X 50.9 (H) / 428.5g (INCLUDED INPUT WIRES)
MOTOR
LIPO RANGE - 8-12S
NO-LOAD CURRENT - 6.9A
DIAMETER / LENGTH- 56mm x 119.2mm
SHAFT DIAMETER - 8mm
ESC
SPECIFICATIONS:
CONT. /PEAK CURRENT - 250A/1600AMOTOR TYPE - SENSORED/ SENSORLESS BRUSHLESS MOTOR
APPLICATIONS - 1/5TH BUGGY/TRUCK
MOTOR LIMIT* -
WITH 8S LIPO - KV < 1200
WITH 12S LIPO - KV < 800 USING 56118 SIZE MOTOR
LIPO CELLS - 6-12s LIPO
BEC OUTPUT - 6V/7.4V/8.4V ADJUSTABLE, CONTINUOUS CURRENT 8A (SWITCH-MODE)
SIZE/WEIGHT - 94.5(L) X 59.4(W) X 50.9 (H) / 428.5g (INCLUDED INPUT WIRES)
MOTOR
SPECIFICATIONS:
KV - 800KVLIPO RANGE - 8-12S
NO-LOAD CURRENT - 6.9A
DIAMETER / LENGTH- 56mm x 119.2mm
SHAFT DIAMETER - 8mm
Manufacturer information
Additional details
| Country of origin | China |
| Package dimensions | 9.00" × 8.00" × 3.75" 22.86 cm × 20.32 cm × 9.53 cm |
| Part numbers | HWI38010602 6938994407618 088718507615 |
| Shipping weight | 79.10 ounces 2242.45 grams 4.94 pounds |
